Series 16i/18i/20i/21i/160i/180i/210i/160is/180is/210is - Model A Maintenance manual Page 226

Maintenance manual

Page of 907

/ 907

B--63005EN/02

2. LCD--MOUNTED TYPE i SERIES HARDWARE

201

The power--on start sequence can be modified using the rotary switch on

the motherboard. Usually the rotary switch should be set to the “1”

position.

Setting Description

0 Setting for maintenance.

The start menu is displayed. It is possible to start boot and IPL

from the PC.

1 Setting for usual operation.

The start menu is not displayed.

It is impossible to start boot or IPL from the PC.

2 The NC and PC are started independently of each other.

The start menu is not displayed.

It is impossible to start boot or IPL from the PC.

See Appendix, “Maintenance of Open CNC (Boot--Up and IPL)” for

detailed descriptions about how to operate boot and IPL when the rotary

switch is set to the “0” position.

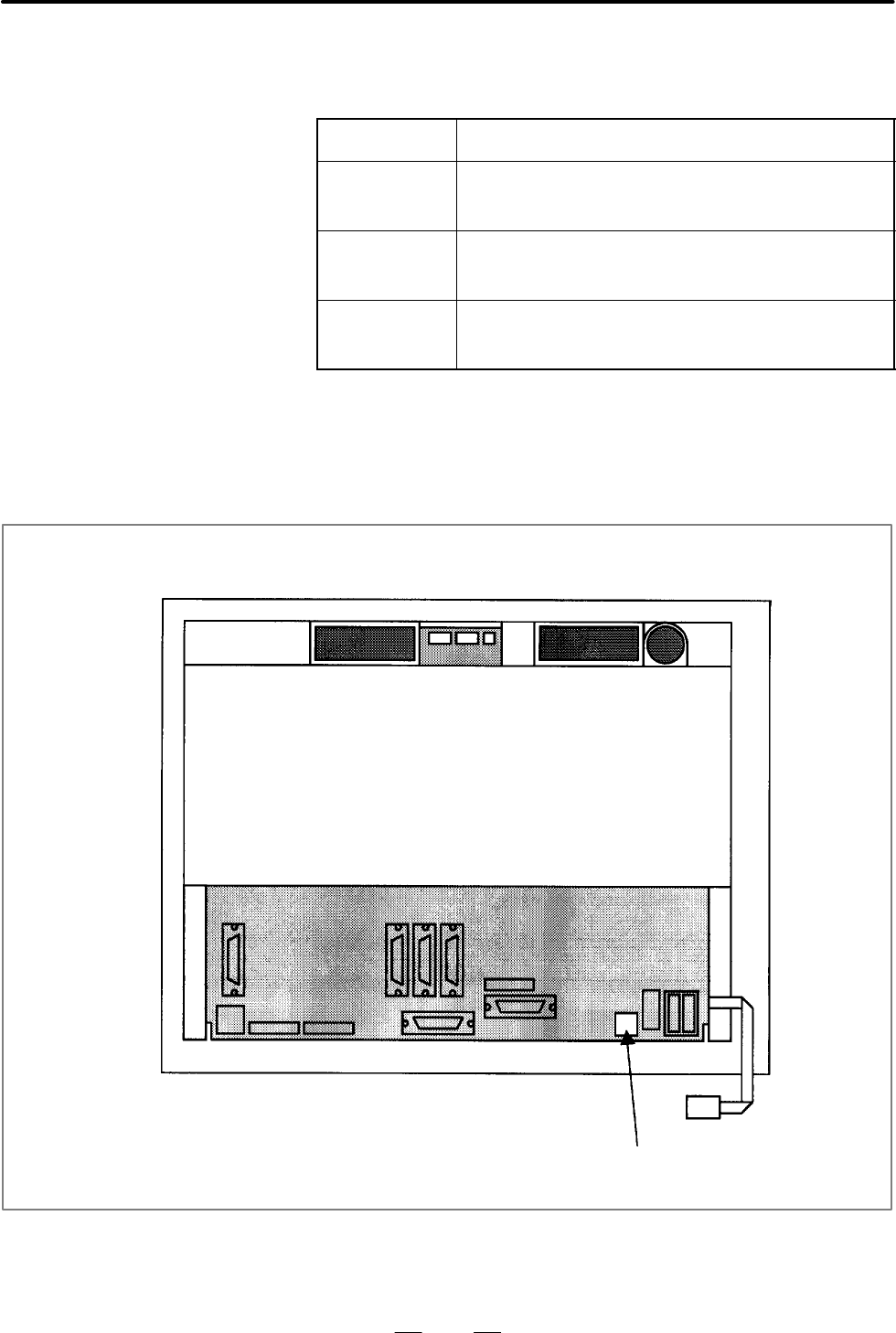

Rotary switch location

Unit rear view

Rotary switch

D Rotary switch setting
