2. LCD--MOUNTED TYPE i SERIES HARDWARE
B--63005EN/02
224

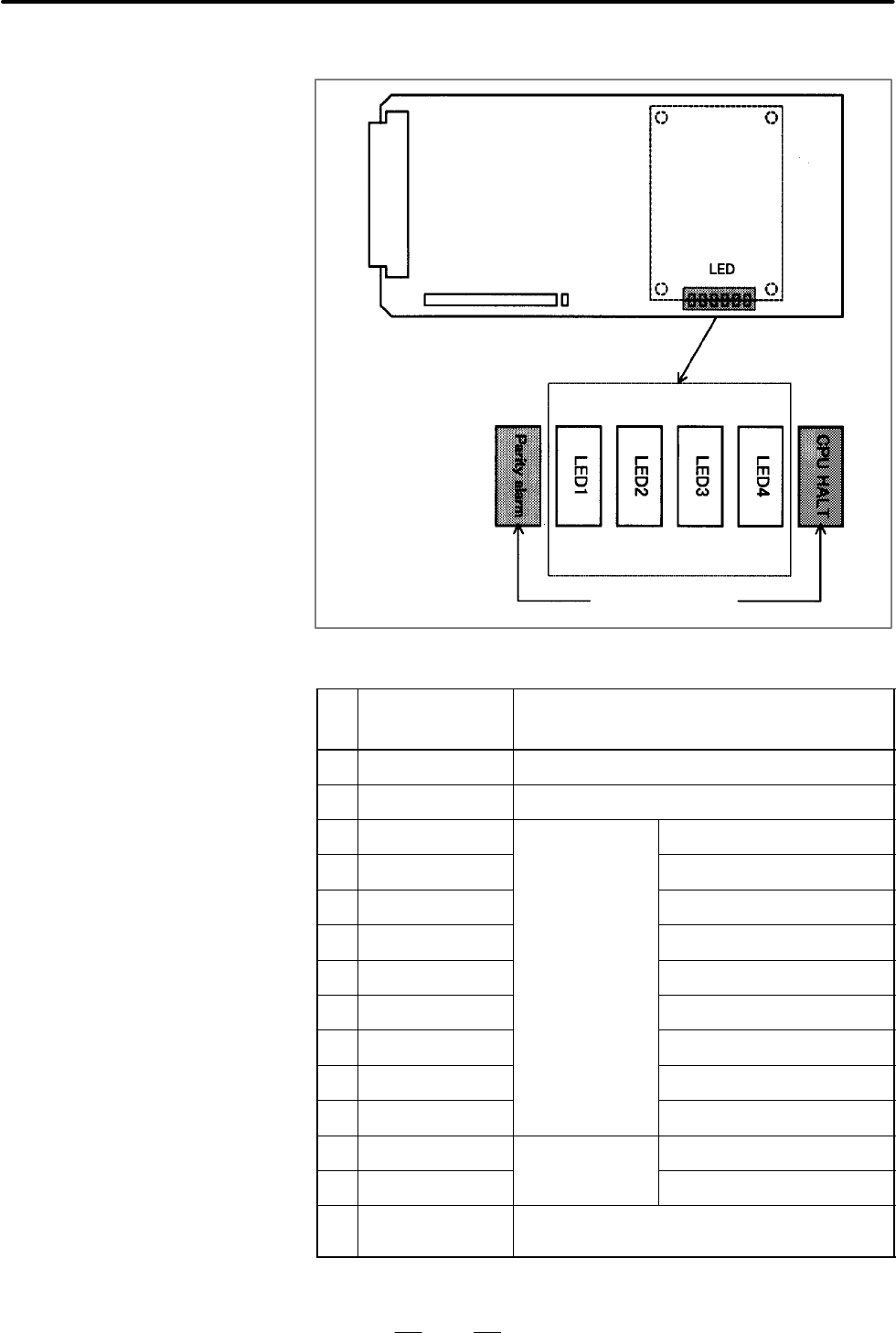

Data server board (old specification, hard disk version)
Status (green)
Alarm (red)
(1)Changes in status LED (green) indication at power--on time
No.
Status LED
(LED1 to LED4)
Status
1 jjjj Power is not supplied.
2 JJJJ Initial status immediately after power is switched on.
3 jJJJ
Hardware check un-
d
e
r
w
a
y
Main memory test.
4 JjJJ
d
er way.
Ethernet RAM text.
5 jjJJ Common--RAM test.
6 JJjJ System area initialization.
7 jJjJ F--BUS interrupt test 1.
8 JjjJ F--BUS interrupt test 2.
9 jjjJ F--BUS interrupt test 3.
10 JJJj F--BUS interrupt test 4.
11 jJJj Interrupt controller initialization.
12 JjJj
Data server soft-
w
a
r
e
h
a
s
s
t
a
r
t
e
d
BIOS initialization.
13 jjJj
ware
h
as s
t
ar
t
e
d
.
Program loading.
14 Jjjj Data server board has started, and usual operation under
way.
J:On j:Off
D LED indication
