9. TROUBLESHOOTING

B--63005EN/02

592

This situation can occur only with the stand--alone type.

If a break is detected in the optical cable (HSSB) that connects the LCD

unit to the main CPU board, the display on the LCD unit flashes.

The same situation occurs if the main CPU board is turned off while the

power is on.

The display on the LCD unit flashes if the main CPU board is turned off,

with the LCD kept on, while the power is on.

Check that the optical cable is free from excessive force and that it is not

excessively bent.

If no problems are found with the connection of the cable, replace the

optical cable.

Replace the display control card installed on the main CPU board.

Replace the LCD unit or the control printed circuit board located at the

rear of the LCD unit

CPU card

Display control

card

Axis control

card

Main CPU board

9.8

THE DISPLAY ON

THE LCD UNIT

FLASHES

Causes and actions

D Power supply of the

main CPU board

D Break of the optical

cable

D Display control card

D LCD unit

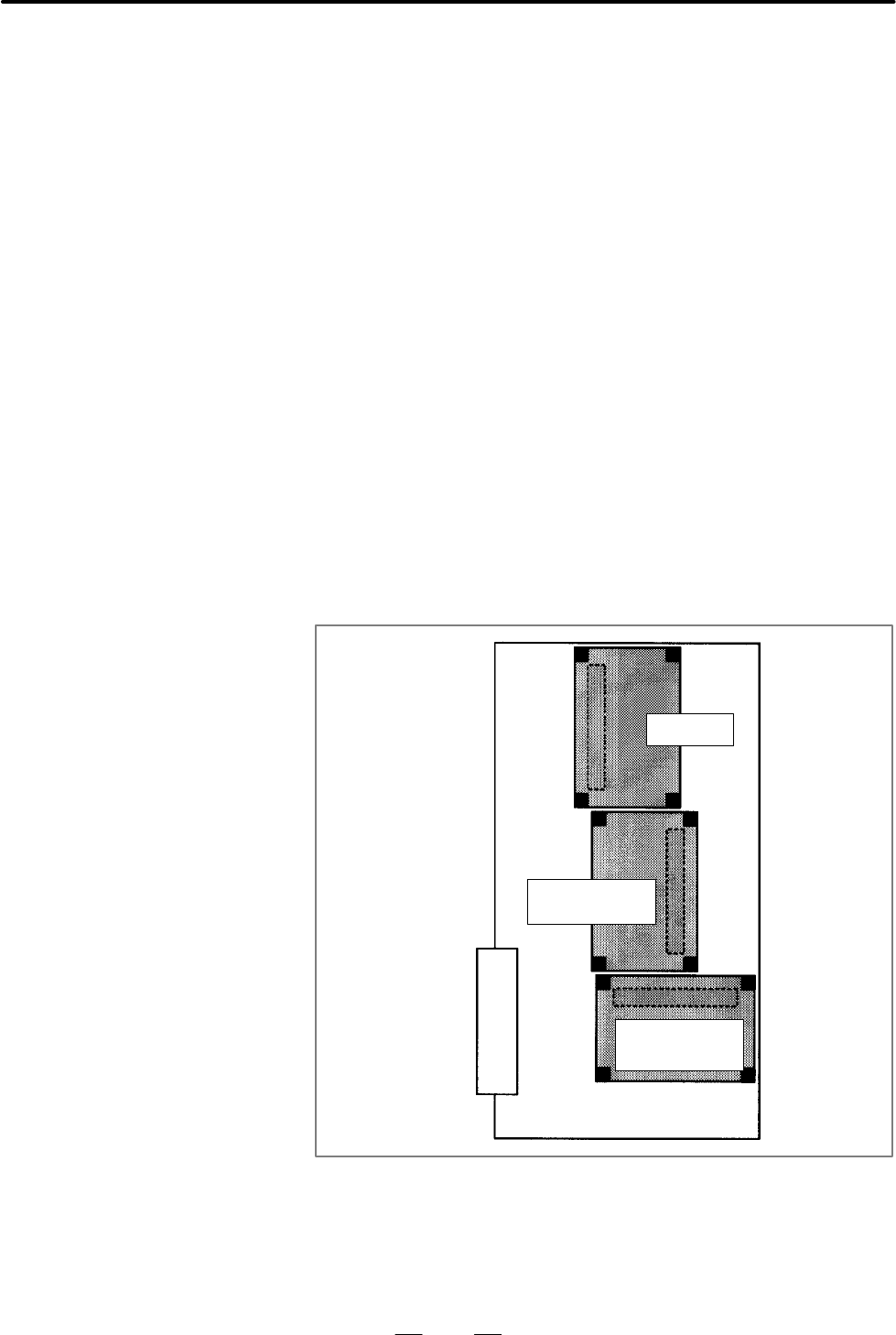

D Installation position of

the display control card
