4. DESCRIPTION OF PARAMETERS
157
5212 M code that specifies a rigid tapping mode
[Data type] 2–word
[Unit of data] Integer
[Valid data range] 0 to 65535
This parameter sets the M code that specifies the rigid tapping mode.
The M code that specifies the rigid tapping mode is usually set by
parameter 5210. To use an M code whose number is greater than 255,
specify the code number with parameter 5212.
NOTE
If the setting of this parameter is 0, the M code specifying the
rigid tapping mode is determined by the setting of parameter
5210. Otherwise, it is determined by the setting of parameter
5212. The setting of parameter 5212 must always be within
the above valid range.
5213
Return or clearance in peck tapping cycle
[Data type] Word
[Unit of data]
Increment system IS–B IS–C Unit
Millimeter input 0.001 0.0001 mm
Input in incluse 0.0001 0.00001 inch
[Valid data range] 0 to 32767
This parameter sets the return or clearance in the peck tapping cycle.
Parameter No.5200 PCP=1
(Peck drilling cycle)
Parameter No.5200 PCP=0
(High–speed peck drilling cycle)
q : Depth of cut
d : Return value
R point
Z point
q
q
q
d
d
q : Depth of cut
d : Clearance value
R point
Z point
q
q
q
d
d

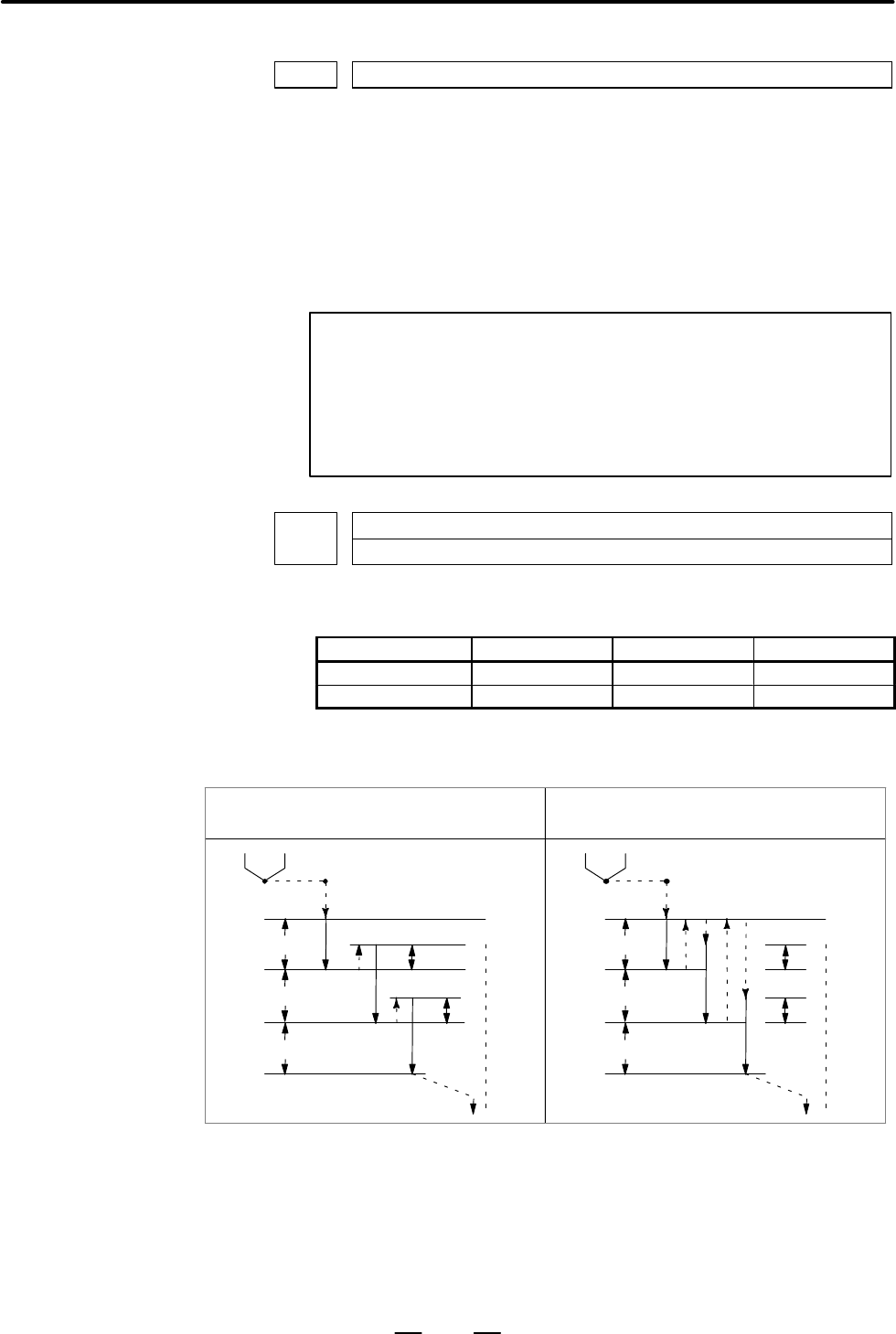

Fig.4.17 (a) High–speed Peck Drilling and Peck Drilling Cycles
