DIGITAL SERVO ADAPTER Maintenance manual Page 157

Maintenance manual
B–63465EN/01
F. SETTING/DISPLAY/MAINTENANCE
USING THE MAIN UNIT OF
THE Digital Servo Adapter
APPENDIX
141
Whenever the memory module of the Digital Servo Adapter has been
replaced, all–clear operation must be performed by switch operation on
the main unit of the Digital Servo Adapter. In addition, some settings
must be made using switches on the main unit of the Digital Servo
Adapter. When a setting/display unit such as the DPL/MDI is not
connected, simple maintenance operations including display of the
Digital Servo Adapter status and save/restoration of files in a batch can
be performed using only the main unit.

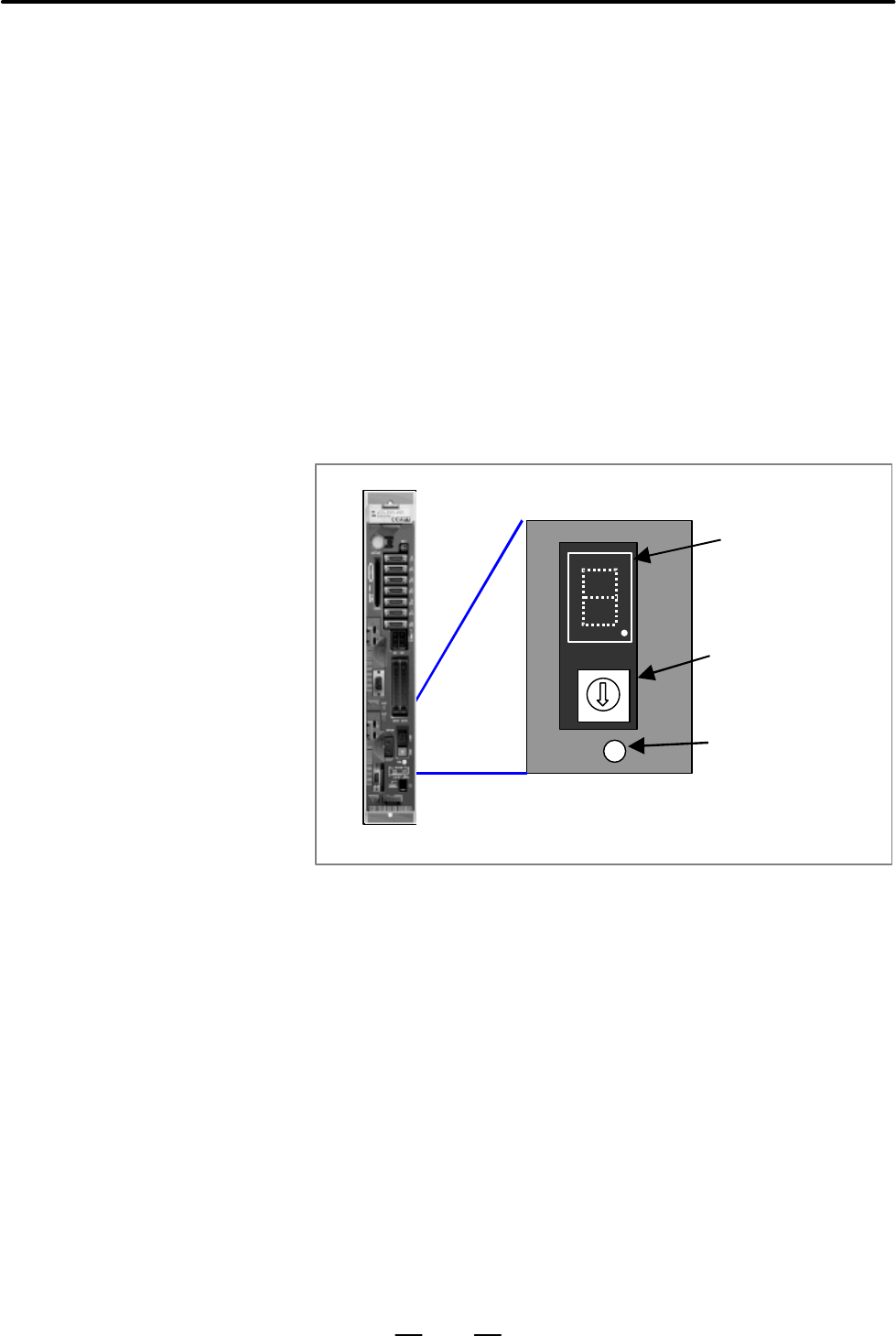

The Digital Servo Adapter is equipped with a 7–segment LED LEDM1,
rotary switch MTSW, and pushbutton switch PSW to allow setting,
display, and maintenance operations to be performed from the main unit.
Pushbutton switch
(PSW)
Rotary switch
(MTSW)
7–segment LED
(LEDM1)
F.1
OVERVIEW
F.2
SWITCHES AND LED
