DIGITAL SERVO ADAPTER Maintenance manual Page 54

Maintenance manual
2. HARDWARE
B–63465EN/01
38

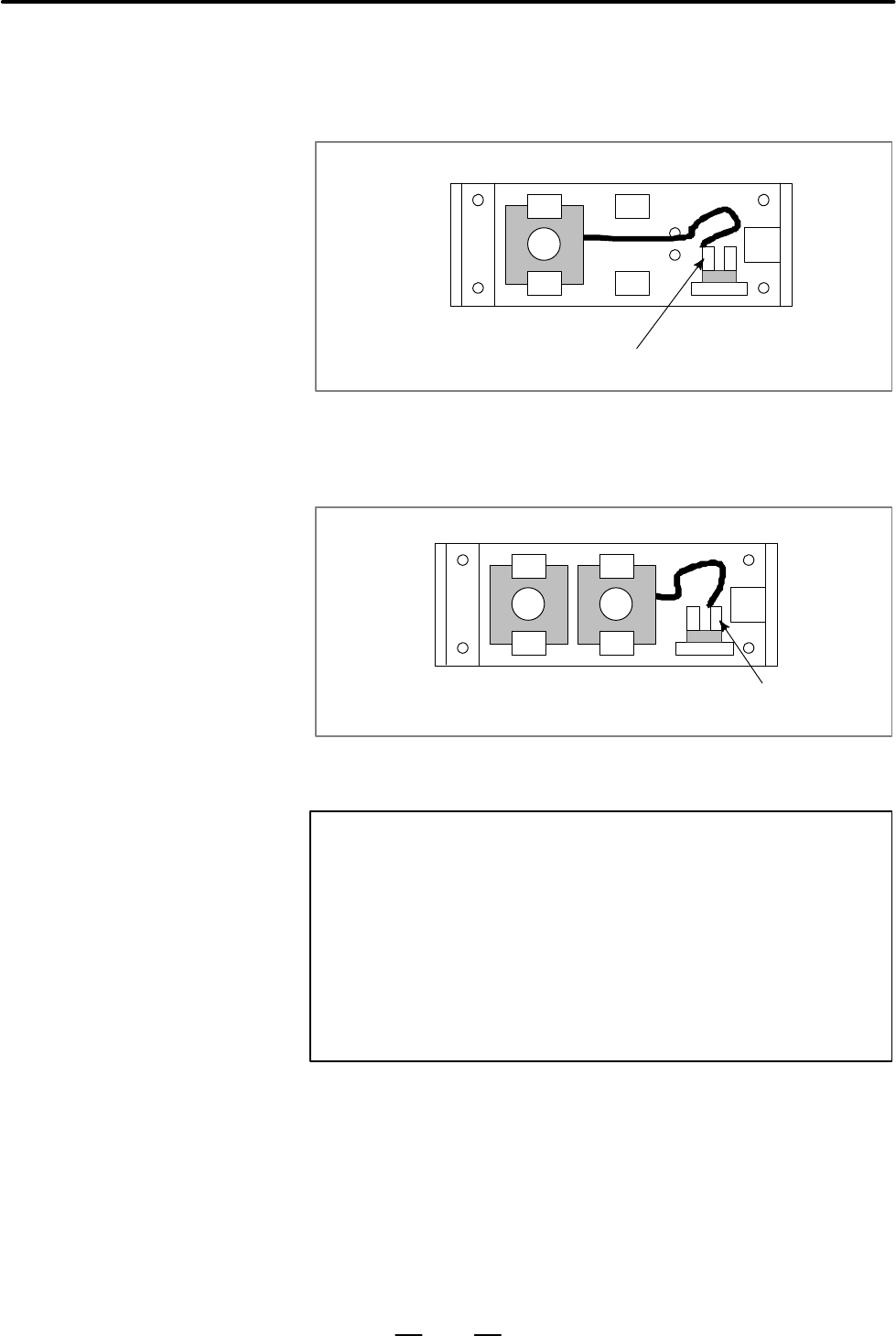

(5)Attach the cable connector of a replacement fan to the left–side
connector (CA39A) on the fan connection printed–circuit board first,
and place the fan at a location labeled FAN1 with the cable held to the
right, then latch it. Be sure to lay the fan cable under FAN2.
CA39A
FAN1
(6)Attach the cable connector of another replacement fan to the right–side
connector (CA39B) on the fan connection printed–circuit board first,
and place the fan at a location labeled FAN2 with the cable held to the
right, then latch it.
CA39B
FAN2
(7)Attach the fan unit to the main unit by following the mounting
procedure described in Section 2.5.3.
NOTE
1 Replace the two fan units simultaneously.
Replacement fan (control section): A02B–0259–K120, with
two fans
2 If a fan is installed right–side left, or if the connector of the
right–side fan is attached to the left–side fan connector on
the fan connection printed–circuit board or vice or versa, the
wrong fan number will be displayed when a fan alarm
condition occurs.
