Series 16i/18i-MA/MB Canned Turning Cycle for Milling Machine, Specification Additional Manual Page 11

Additional Manual
<Inner Roughing>
Example: In case of the cutting start point P1, semi-finishing is not executed. In
case of the cutting start point P2, semi-finishing is executed.
Note) There is the parameter P9761<#6:SEM> for semi-finishing in G710 cycle
(About the details, see the section 1.2(2)). In case that the parameter
P9761<SEM> is set to 1, the parameter P9772<#5:RNF> is not available.
And semi-finishing is executed unconditionally.
(For semi-finishing, the above-mentioned two parameters <SEM> and
<RFN> are prepared. And the parameter P9772<RFN> is used for G700
cycle. The parameter P9761<SEM> is used for G710 cycle.)

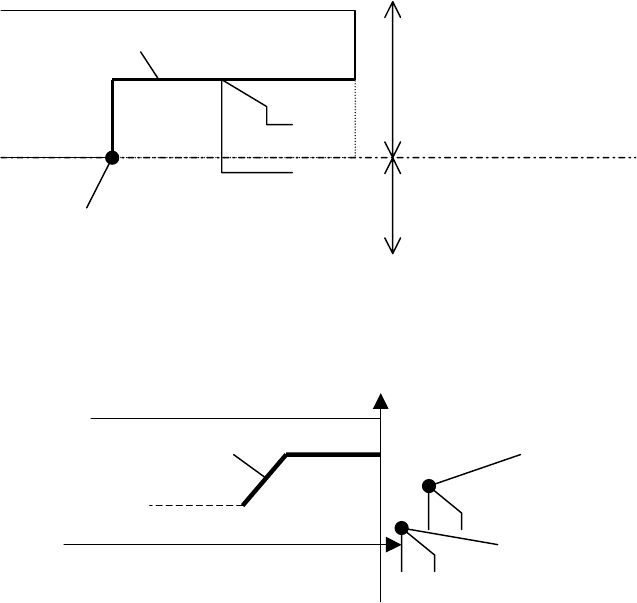

When a Cutting start point exists
in this area, Semi-finishing is
executed.
Finishing figure
When a Cutting start point exists
in this area, Semi-finishing is not
executed.
Minimum X of Finishing figure
Fig.1.1.14
X50.
X10.
Cutting start point P2(X15.,Z10.)
Cutting start point P1(X5.,Z5.)
Z0.
Finishing figure
Fig.1.1.15
