Series 16i/18i-MA/MB Canned Turning Cycle for Milling Machine, Specification Additional Manual Page 22

Additional Manual
Example)
In case of the Lead L=1.2 mm, Number of thread P=2 and
Cutting start point Z1 = 1.25
H Thread height Thread height
(When “H___” is not specified, thread height will be decided as
below
General thread
Thread height of Outer = Lead x Parameter 9832/10000
Thread height of Inner = Lead x Parameter 9286/10000
Metric/Unified thread
Thread height of Outer = Lead x Parameter 9838/10000
Thread height of Inner = Lead x Parameter 9287/10000
)
* V Finishing allowance
Finishing amount (When “V__” is not specified, the
parameter 9834 is used as the finishing amount)
* U Clearance X
Clearance along the X-axis in threading (When “U__” is
not specified, the parameter 9830 is used as the Clearance)
W Clearance Z
Clearance along the Z-axis in threading (When “W__” is
not specified, the parameter 9830 is used as the Clearance)
N Spark out
Number of finishing operations to be done (When “N__” is
not specified, the number of spark out is equal to N1)
When the number of spark out “N” grater than or equal the number
of cut “Q” is specified, only finishing is carried out at the N times.

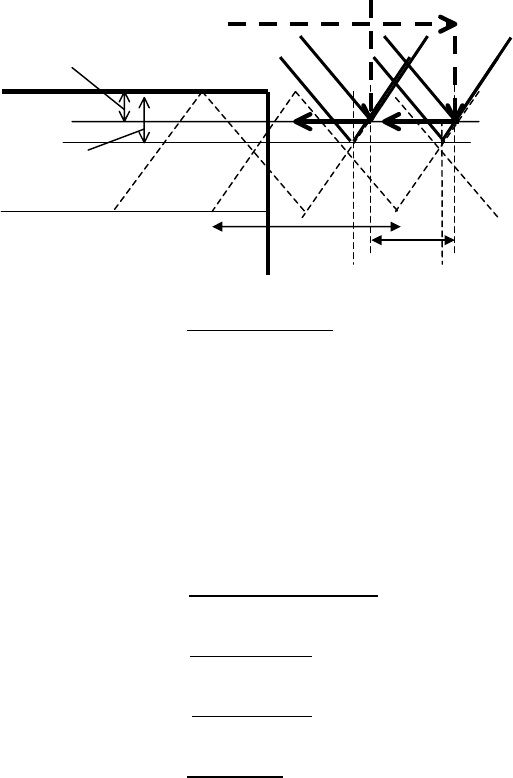

<The first cutting depth>
A
t first, thread cutting starts at
the point Z1=1.25
Next, the tool returns to the point
Z2 =1.85 which Z1 is shifted to the
right direction by the L/P = 1.2/2 =
0.6.
<The 2
nd
cutting depth>
Thread cutting starts at the point
Z1’. And then, at the point Z2’= Z1’
+0.6.
Z1 Z2
First cutting depth
Second cutting depth
Lead L
Z1’ Z2’
Fig.2.1.4
