  2. Series 16i/18i-MA/MB Canned Turning Cycle for Milling Machine, Specification

Series 16i/18i-MA/MB Canned Turning Cycle for Milling Machine, Specification Additional Manual Page 17

Additional Manual
(4) About the meaning and difference
of Roughing, Semi-finishing and Finishing

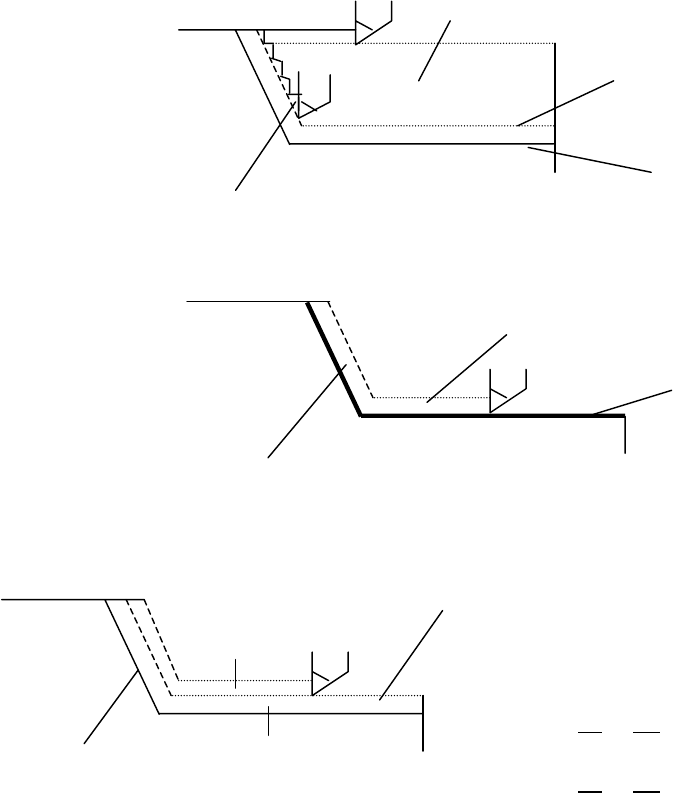

<Roughing (G700) and Semi-finishing of G700>
<Finishing (G710)>
<Semi-finishing of G710>
Example of
Programming
Refer to the explanation of “Example of Programming” showed in 1.1Roughing
cycle.
Finishing figure path
Finishing allowance path
Remove the specified part except the finishing
allowance (Roughing motion)
Remove the remained part in roughing along to the
finishing allowance path (Semi-finishing motion)
Finishing figure path
Finishing allowance
Remove the finishing allowance along to the
finishing figure path (finishing motion)
In case of removing the finishing allowance at a
few times, finishing allowance can be removed by
specifying U and W of G710 like the following
program
G710 …. U u1 W w1….. ;
:
G710 …. U u2
W w2 ….;
w1
w2
Finishing figure path
Fig.1.2.4
Fig.1.2.5
Fig.1.2.6
