  2. Series 16i/18i-MA/MB Canned Turning Cycle for Milling Machine, Specification

Series 16i/18i-MA/MB Canned Turning Cycle for Milling Machine, Specification Additional Manual Page 44

Additional Manual

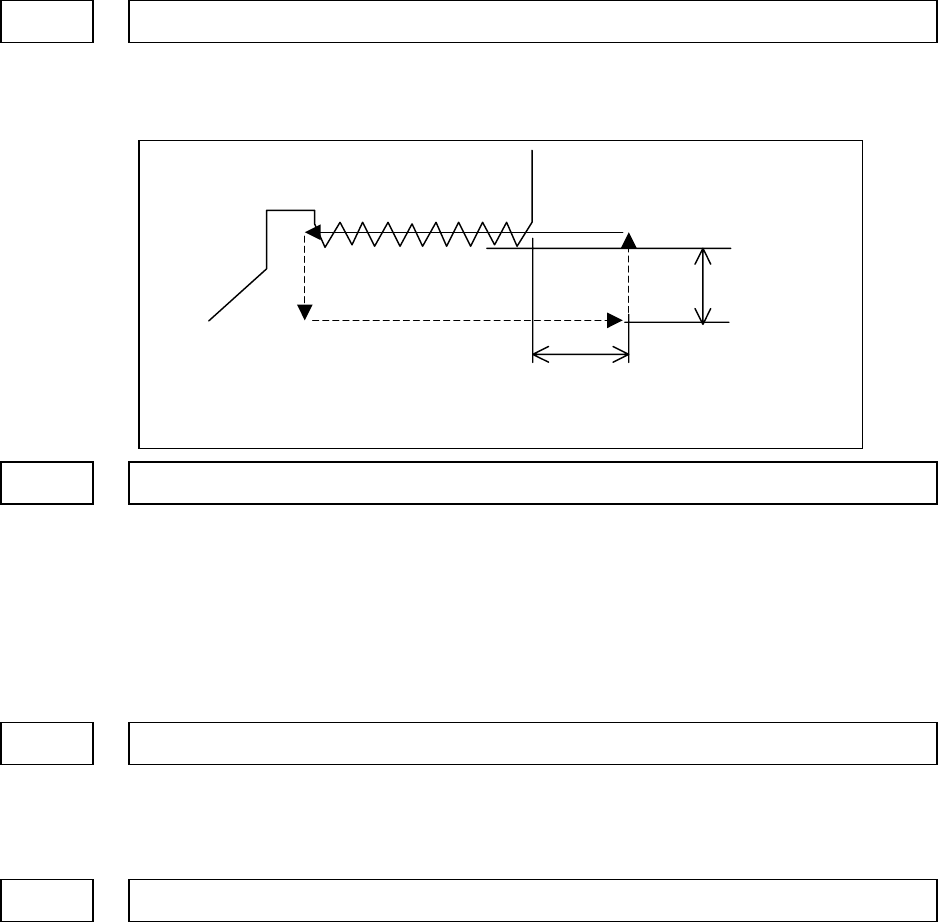

CLSCRZ Default value of the acceleration distance (radius) of the Z axis for threading.
Valid data range : 0 to 99,999,999 Units : 0.001mm
0.0001inch
SCWCF Coefficient for the height of a general thread.
Valid data range : 0 to 32,767 Units : 1/10000
The system automatically sets the height of the thread for process data from the
following formula.
Height of a thread = thread pitch x SCWCF / 10000
Standard set value 6495 for thread angle 60degrees
6403 for thread angle 55degrees
TRDFNX Default value of the finishing allowance along the X-axis for threading (diameter)
Valid data range : 0 to 99,999,999 Units : 0.001mm
0.0001inch
MTUNCF Coefficient for the height of a metric or unified thread.
Valid data range : 0 to 32,767 Units : 1/10000
The system automatically sets the height of the thread for process data from the
following formula.
Height of a thread = thread pitch x MTUNCF / 10000
Standard set value 6495 for thread angle 60degrees
6403 for thread angle 55degrees
9831 CLSCRZ
CLSCRZ
CLSCRX
9832 SCWCF
9834 TRDFNX
9838 MTUNCF
