Series 16i/18i-MA/MB Canned Turning Cycle for Milling Machine, Specification Additional Manual Page 6

Additional Manual
* K minimum cut amount
The cut amount calculated as above is clamped by this specified
argument like the cut amount does not become less than the
argument amount. (When “K___” is not specified, “minimum cut
amount” is equal to K0)
I allowance of end face
Before starting the Outer roughing, the end face is cut down by this
specified amount. But this argument is available in case that the
vertical line starting from (0,0) is specified as the first figure.
Cutting times and Cutting depth of the End face cutting are
calculated as follows.
Cutting times N = (I’－W) / (V/2) ---- raise the decimals to a unit
Cutting depth Q = (I’－W) / N
Where
I’ : allowance of end face
W : finishing allowance
V : Tool nose radius ( diameter value )
Example) If I’=5.0, W=1.0 and V=3.0 are specified, N and Q are
calculated as follows.
(5.0 -1.0)/(3.0/2) --> 2.666 --> N = 3
Q = (5.0 - 1.0)/3 = 1.333
Note) According to the tool position when G700 is called, the
above-mentioned I’ is set as follows.
When the Tool is located to the position P1 like the above figure,
I’ = I .
When the Tool is located to the position P2 like the above figure,
I’ = I1.

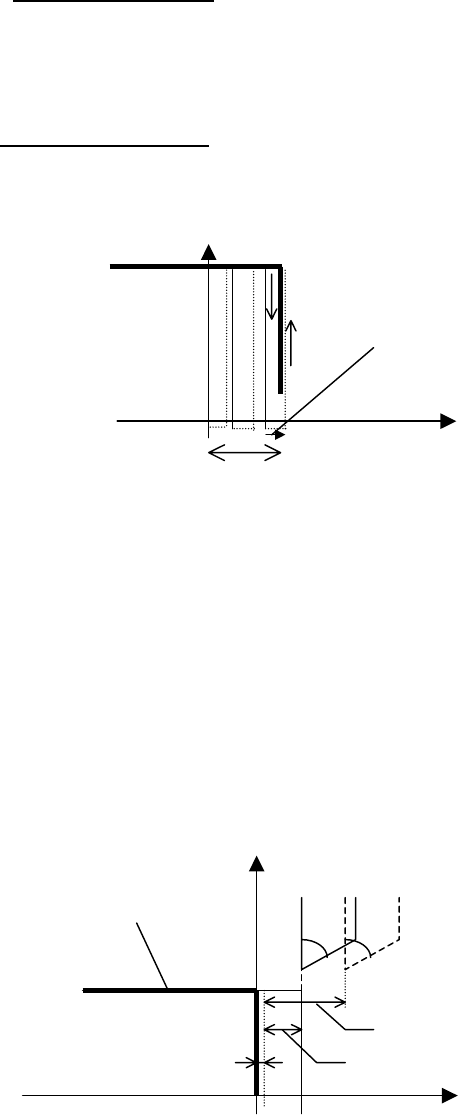

+X
+X
A
llowance of end face
+Z
Release amount in Z-axis
after cutting down the end face
is s
p
ecified b
y
the
p
arameter 9798.
Fig.1.1.5
I: Allowance of endface specified in G700Finishing allowance :W
+Z
Figure specified in G10x block
I1
P1 P2
Fig.1.1.6
