1.2 Finishing Cycle/ Outer/Inner/Face
Finishing Cycle is executed by using the G710 and G1xx command like the
following figure. And also, this Cycle is used in X-Z plane.
(Note) Before commanding Finishing Cycle, a tool must be moved to the cutting
start point as same as the roughing cycle.
(1) G-code Format The process data of this cycle, F,E,W,V…etc, are specified by using the G710
command as follows. And also, the finishing figure of this cycle is specified as
same as Roughing cycle.
Specifying
the Process data
G710 P Cutting direction A Diameter/Radius B Machining area F Cutting feedrate U
Finishing allowance X
W Finishing allowance Z E Release amount Q Edge
angle R Nose angle D Imaginary tool tip position T Offset No ;
Specifying
the Finishing figure
Refer to “(1) G-code Format of 1.1 Roughing Cycle/Outer/Inner/Face”
Note) In finishing cycle, tool nose radius compensation is executed by using
G41/42 command.
(2) The detail of
the process data
About the other arguments except for the following arguments, refer to “1.1
Roughing Cycle/Outer/Inner/Face”

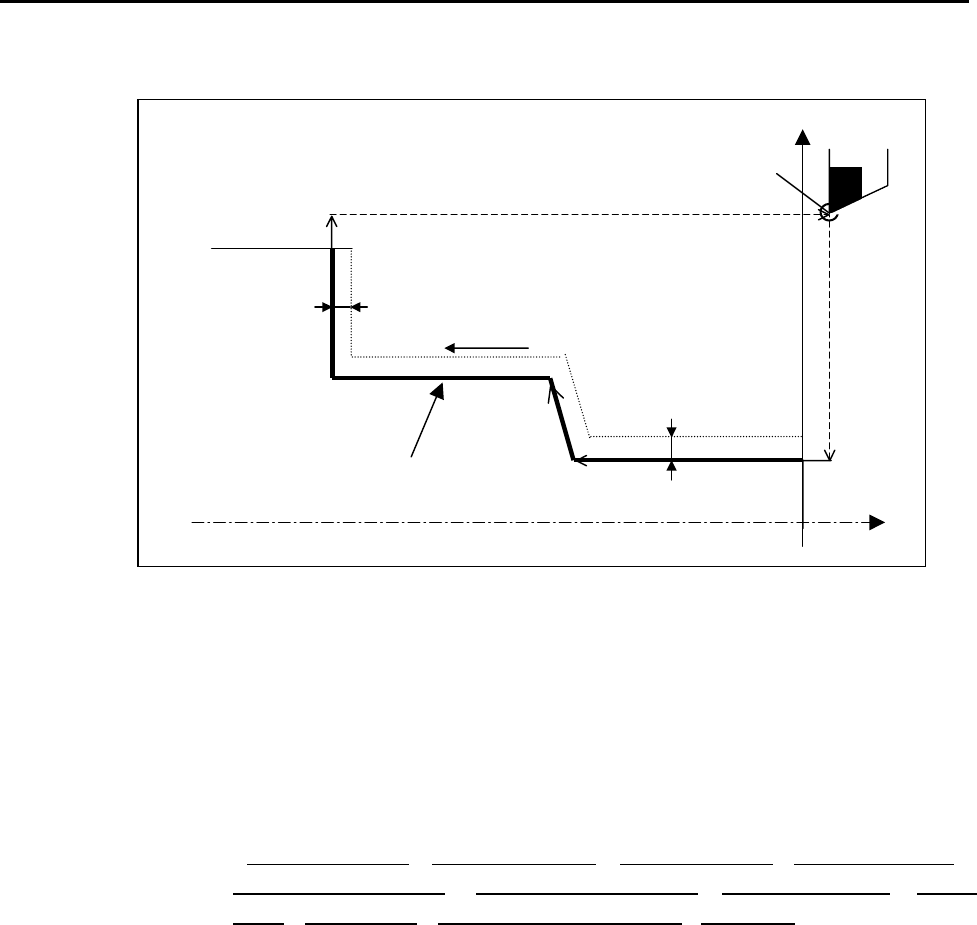

Fig. 1.2.1
U
W
E
Tool
Cutting start point
F
Finishing figure
+Z
+X
