R Dwell time Dwell at the bottom of a groove in roughing. (When
"R___" is not specified, "Dwell time" is equal to zero) Unit : sec
W Groove width
Width of a groove to be machined. (when "W___" is not
specified, P/S alarm will occur)
D Groove depth
Depth of a groove to be machined. (When "D___" is not
specified, P/S alarm will occur)
N Number of groove
Number of grooves when more than one groove are to be
machined at regular intervals. (When "N__" is not specified,
Number of grooves is set to 1)
P Pitch
Distance between grooves when grooves of the same figure are
machined at regular intervals. (When "P__" is not specified and
Number of grooves more than one groove is specified, P/S alarm
will occur)
*X/Z Start point X/Z
X or Z coordinate of a point where grooving starts. (When the
Start points are not specified, P/S alarm will occur)
* U End point X/Z
X/Z coordinate of the end point of a groove. This data is
necessary only at the depth of a groove is different. If no value is
inputted into this data item, depth of start point end point
becomes equal.
C Chamfer amount
Chamfer amount of a groove. (When "C__" is not
specified, Chamfer amount is set to zero)
+X
+Z
Pitch
Groove width
Chamfer amount
Chamfer amount
Start point
End point
Start point X
End point X
+Z
+
X
Groove depth
Start point
Start point
End point
End point
(Inner Grooving)
(Face Grooving)
(Outer Grooving)

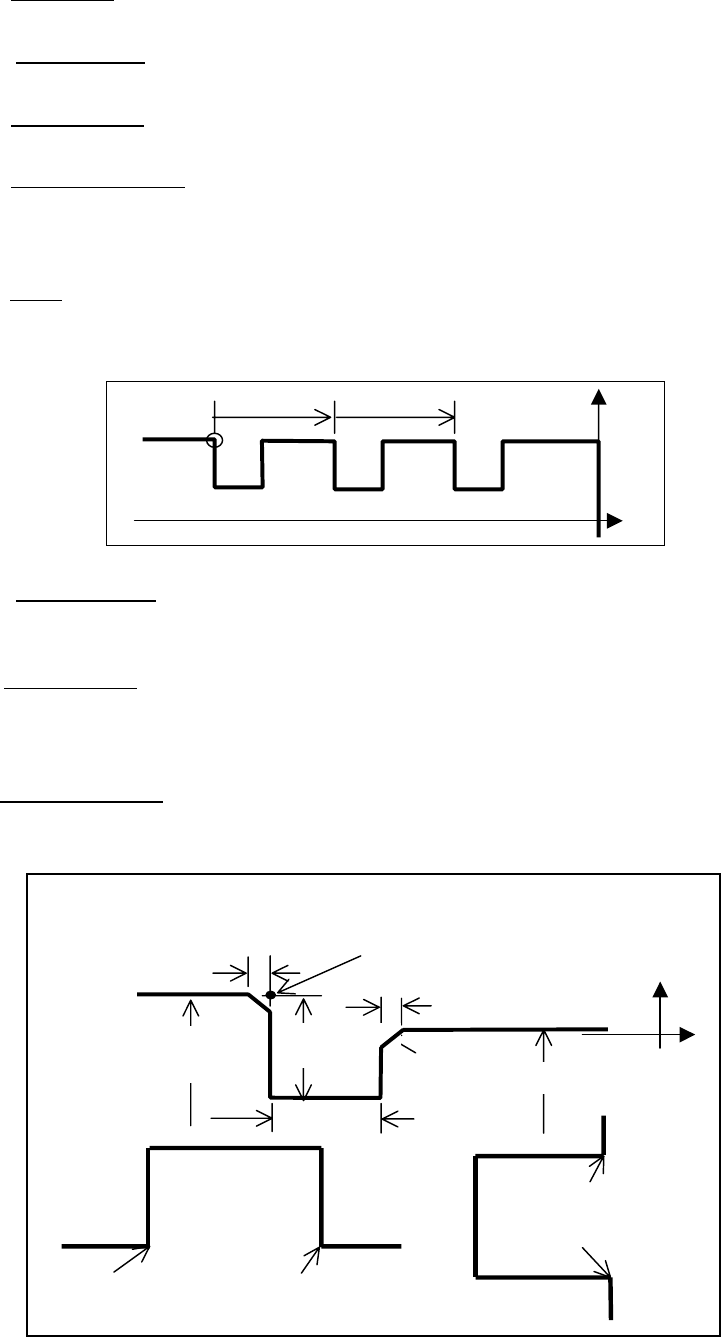

Fig.3.1.4
Fig.3.1.3
