Series 16i/18i-MA/MB Canned Turning Cycle for Milling Machine, Specification Additional Manual Page 12

Additional Manual
Example of
Programming
(Diameter designation, metric input)
:
G40 X____Y____; ------ Offset cancellation
G18 ; ------ Select X-Z plane
G68 X0Y0Z0I0J1K0R-90.; ------ Convert Z-axis to X-axis
G68 X0Y0Z0I1J0K0R90; ------ Convert Y-axis to Z-axis
M10 ; ------ Set X-axis diameter mode (PMC signal G0296<DI1> is turned
: on to 1)
:
G00 X71. Z1.; ------ Move to the cutting start point
G700 P0. A0. B0. F3.5 U2. W1. V2. E1. H0. Q90. R35.5 D3. T1. K1.; --- Specify Bar Roughing
M98 P1113; ------ Specify the Sub program of Rough shape
M98 P1111; ------ Specify the Sub program of finishing figure
:
G00 X71. Z1.; ------ Move to the cutting start point
G710 P0. A0. B0. F3.5 U2. W1. E1. Q90. R35.5 D3. T2. ; --- Specify Bar Finishing
M98 P1111; ------ Specify the Sub program of finishing figure
:
M30;
O1113 G110 X70. Z-70.; ------ Specify the 1
st
point of the Rough shape
G111 Z-30.; ------ Specify the 1
st
point of the Rough shape
G111 X60.; ------ Specify the 1
st
point of the Rough shape
G111 Z-15.; ------ Specify the 1
st
point of the Rough shape
G111 X50.; ------ Specify the 1
st
point of the Rough shape
G111 Z0.; ------ Specify the 1
st
point of the Rough shape
G119 ;
M99 ;
O1111 G100 X20. Z0.; ------ start point
G101 Z-20.; ------- the 1
st
figure of the finishing figure
G101 X40.Z-25. ;

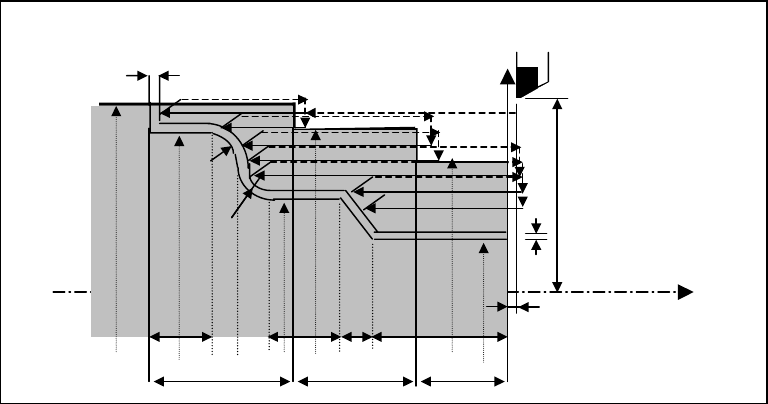

+X
+Z
●
Cutting start point
°
1
71
Ø50
Ø 60
Ø 70
Ø 60 Ø 40 Ø 20
R5
R2.5
17.5
151540
205 10
1
Ø 2
Fig.1.1.16
