Connecting Manual for Fanuc Panel i for Automotive Additional Manual Page 20

Additional Manual
FANUC PANEL i for Automotive
Connecting Manual
EDIT
DRAW. NO. CUST
TITLE
DESCRIPTION
DESIG.
DATE
A
-83132E
20
/
SHEET

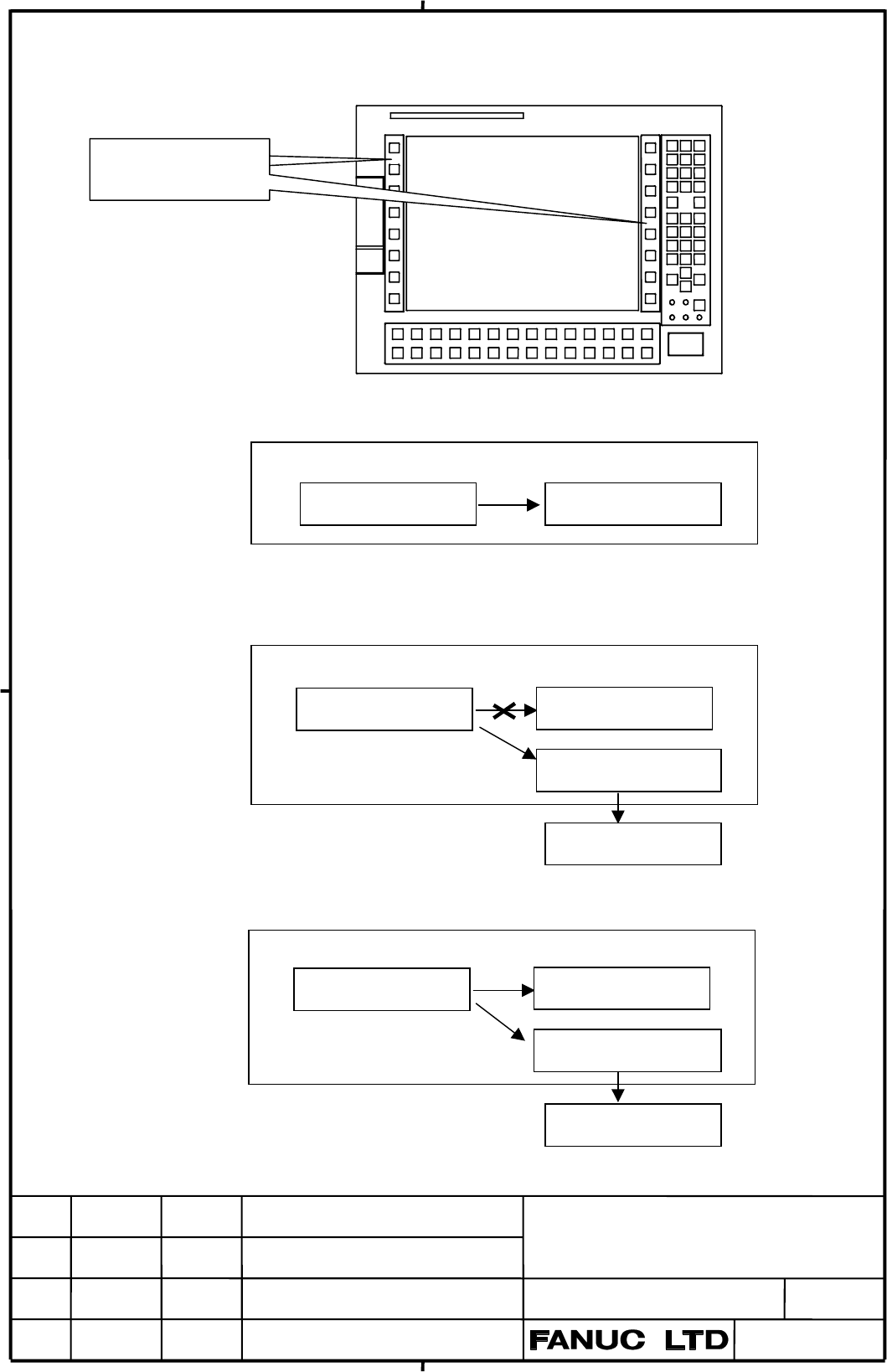

4.10 Conversion of vertical soft keys and I/O Link
Vertical soft keys can be read from CNC directly via I/O Link if the unit have I/O Link option.
It depends on the specification of the unit the way of connection to vertical soft keys
PANEL i for automotive
a. No I/O Link conversion function (A08B-0084-B400~3,-B422,-B423 A13B-0196-B400~3,-B422,-B423)
Vertical soft keys are usable only in PC.
b. With
I/O Link conversion function (A08B-0084-B410~1, A13B-0196-B410~1)
Vertical soft keys are usable only in CNC. Not usable in PC.
(These can not be ordered in future.)
PANEL i for automotive
Vertical soft keys
Vertical soft keys
I/O Link conversion
CNC
PC function
PC function
PANEL i for automotive
Vertical soft keys
CNC
PC function
ｃ. With I/O Link conversion function (A08B-0084-B412~3,-B432,-B433, A13B-0196-B412~3,-B432,-B433)
Vertical soft keys are usable both in CNC and in PC.
I/O Link conversion
Vertical softkeys
(3)
(3)
Marked (3) are modified.
03 04.06.07 Nogami
