5.Method of Mounting PCI Extension Board
5.1 Usable Board

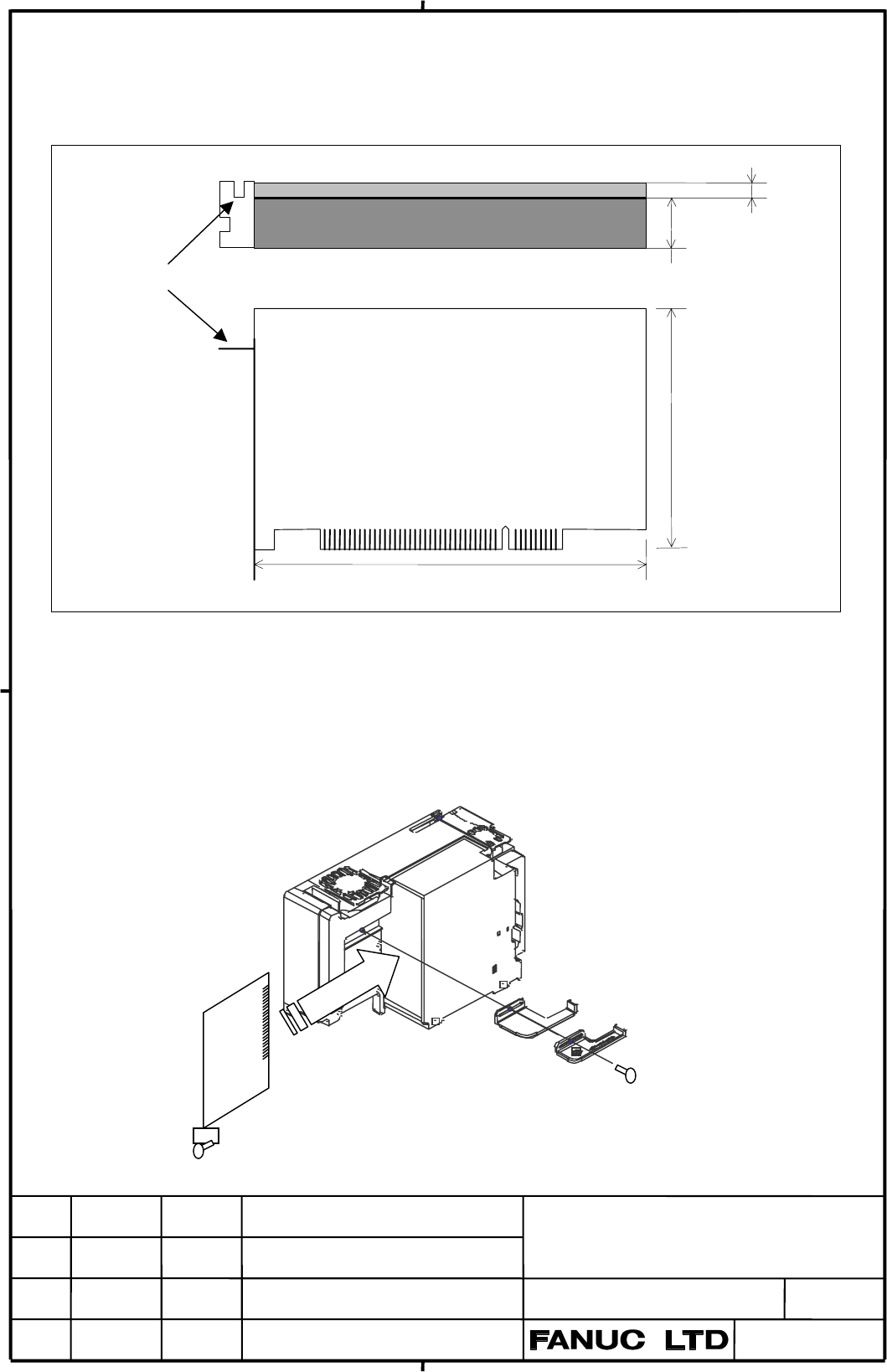

The size of usable board on the PANEL i for AUTOMOTIVE is defined as below figure, and one or two
boards can be mounting on the PANEL i for AUTOMOTIVE.
5.2 Method of mounting PCI extension board
○,
1Release vibration-proof fittings 1, 2 by loosening the screw at point (B).
○,
2Push the board fully into the PCI connector.
○,
3Tighten the screw at point (A).
○,
4Press down vibration-proof fittings to the PCI extension board and tighten the screw at point (B).
Parts height of back side : up to 3mm
Up to 176.41mm
Up to 106.68mm
Unit : mm
Fix by screw
Parts height of front side : up to 13mm
fittings 1, 2
PCI extension board
(B)
(A)
