  2. LOADER CONTROL 21/16/18/160/180/16i/18i/21i/160i/180i/210i

LOADER CONTROL 21/16/18/160/180/16i/18i/21i/160i/180i/210i Connection manual Page 135

Connection manual
B–62443EN–2/03
5. MAINTENANCE
135
PMC ROM
SERVO ROM
LED
1 2 3 4 5 6
7 8 9 10 11
BRAKE
ESP
IO–1
TP
IOLINK
A–OUT
APCBAT
AMP1
AMP2
AMP3
AMP4
IO–2
JF
JNA
F–BUS
Back
plane
connector
Drawing number : A16B–2200–0960
Connector
name
Connector
number
Use
Brake output
Emergency stop
DI/DO for workpiece feeder
DI/DO for loader operator’s panel
CNBK
CNPW
CNWF
CNTP
JD1A
JA8
JA4
JV1
JV2
JV3
JV4
CRM1
CRF1
Serial I/O LINK
Servo waveform check output
Battery for APC
Servo amplifier for 1st axis
Servo amplifier for 2nd axis
Servo amplifier for 3rd axis
Servo amplifier for 4th axis
DI/DO for loader main body
1st to 4th pulse coder
No
Name Code Function
1 ROM module A20B–2900–0290 to 0293 ROM for macro
2 ROM module A20B–2900–0290 to 0292 ROM for loader control system
3 SRAM module A20B–2900–0530 RAM for PMC–RA1 debug
4 SRAM module A20B–2900–0530, –0531
A20B–2900–0540, –0541
Part program strage and RAM for parameter
5 PMC control module A20B–2900–0142, –0143 PMC arithmetical control
6 CPU module A20B–2900–0930 CPU and peripheral circuit
7 System control module A20B–2900–0108 Clear, backup control, etc
8 Servo control module A20B–2901–0340 3rd, 4th axis digital servo control
9 Servo control module A20B–2901–0340 1st, 2nd axis digital servo control
10 Servo interface module A20B–2901–0380 3rd, 4th axis servo interface
11 Servo interface module A20B–2901–0380 1st, 2nd axis servo interface

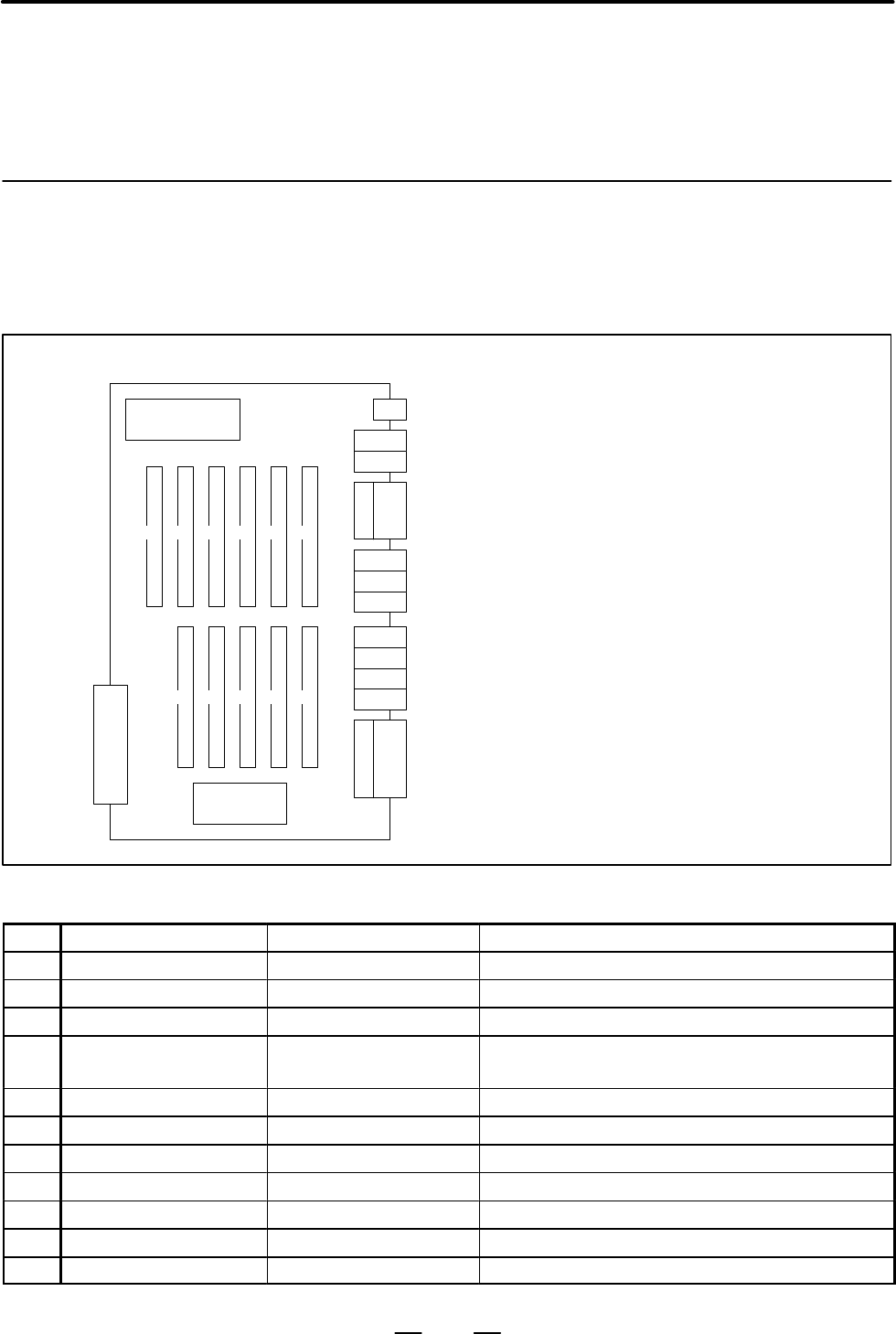

5.3
PC BOARD
CONFIGURATION
5.3.1
Series 16/18–MODEL A
Loader Control Board
Previous page
Next page
