3. CONNECTING THE LOADER CONTROL BOARD
OF THE Series 16i/18i/21i
B–62443EN–2/03
98

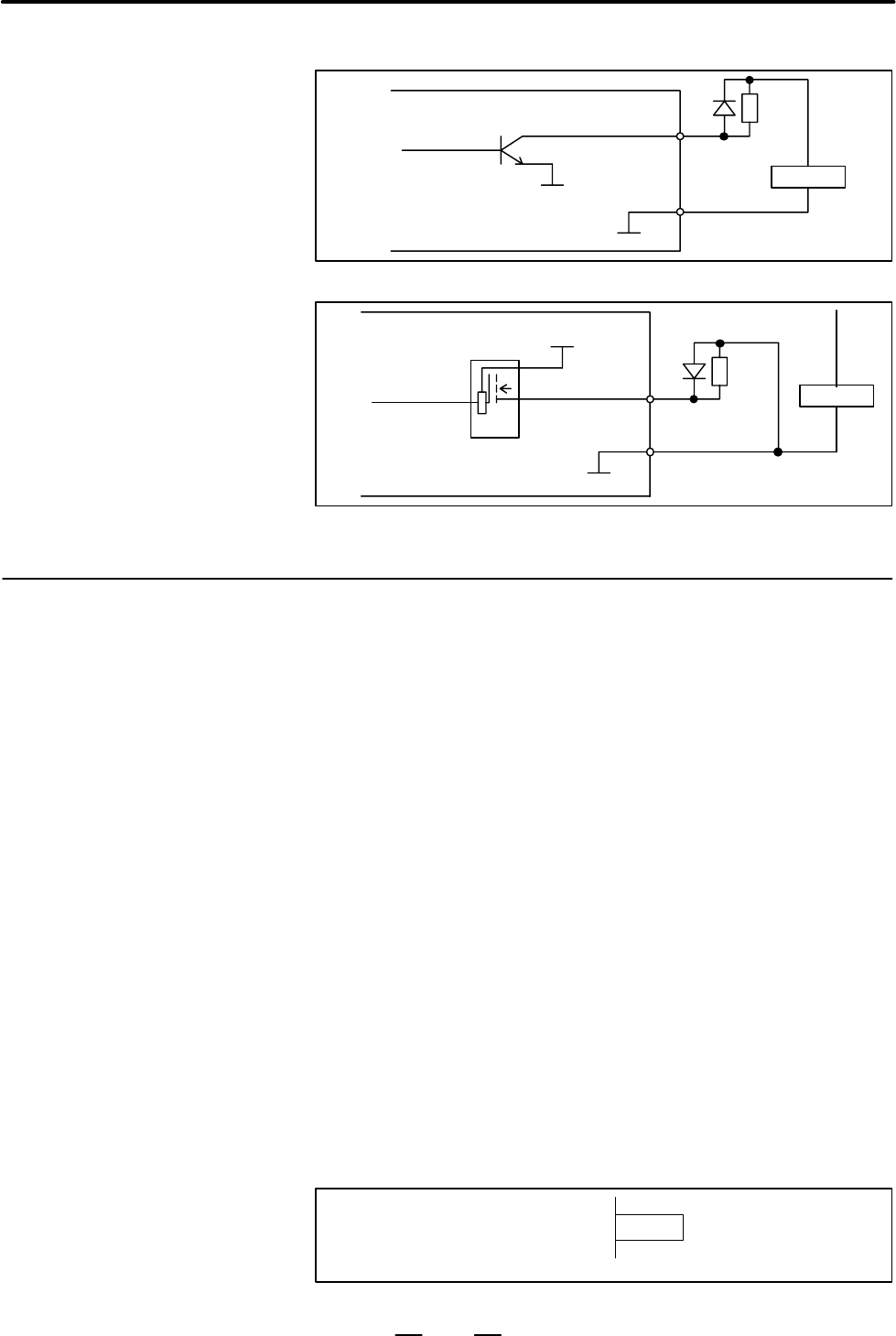

D TDO01 to TDO06
TDO01 to TDO06
0V
0V
+
–
24 VDC
D TCOM01 to TCOM04
TCOM01 to TCOM04
+24V
DV
0V
+
–
24 VDC
* Connect the common voltage line of the source driver to +24 V on the
same board.
Classification : 24–V input, tied to common 24 V
Function : TDI01 to TDI08 can be used as eight
general–purpose DI signals.
Classification : 24–V sink output, 24–V/220–mA load
Function : TDO01 to TDO06 can be used as six
general–purpose DO signals.
Classification : 24–V source output, 24–V/200–mA load
Function : A source driver is used to output 24 V to a signal pin
when the corresponding signal is set to 1 by the PMC.
Classification : 24–V input for emergency stop
Function : The contact signal from the emergency stop button
on the operator’s panel is connected in series with
*LOT within the loader I/O board. This signal drives
the externally mounted emergency stop control relay.
See also Section 3.7.7, ”Connecting an Emergency
Stop System.” Connect contact B of the emergency
stop button on the loader operator’s panel to
*ESPTP1 and *ESPTP2.
If the cable is disconnected from this connector, the
loader immediately performs an emergency stop.
When this connector is not used, install a dummy
connector, instead of the cable, to enable signal
processing.
*ESPTP1 (12)
*ESPTP2 (13)
Dummy connector
3.7.4.4
Signals
Operator’s panel input
signals TDI01 to TDI08
Operator’s panel output
signals TDO01 to TDO06
Common voltage drive
output signals TCOM1 to
TCOM4
Emergency stop input
signals *ESPTP1,
*ESPTP2
Previous page
Next page
