5. MAINTENANCE
B–62443EN–2/03
138
LED
1 2
5 3 4
BRAKE
ESP
IO–1
TP
IOLINK
A–OUT
AMP1
AMP2
AMP3
AMP4
IO–2
JNA
F–BUS
Back
plane
connector

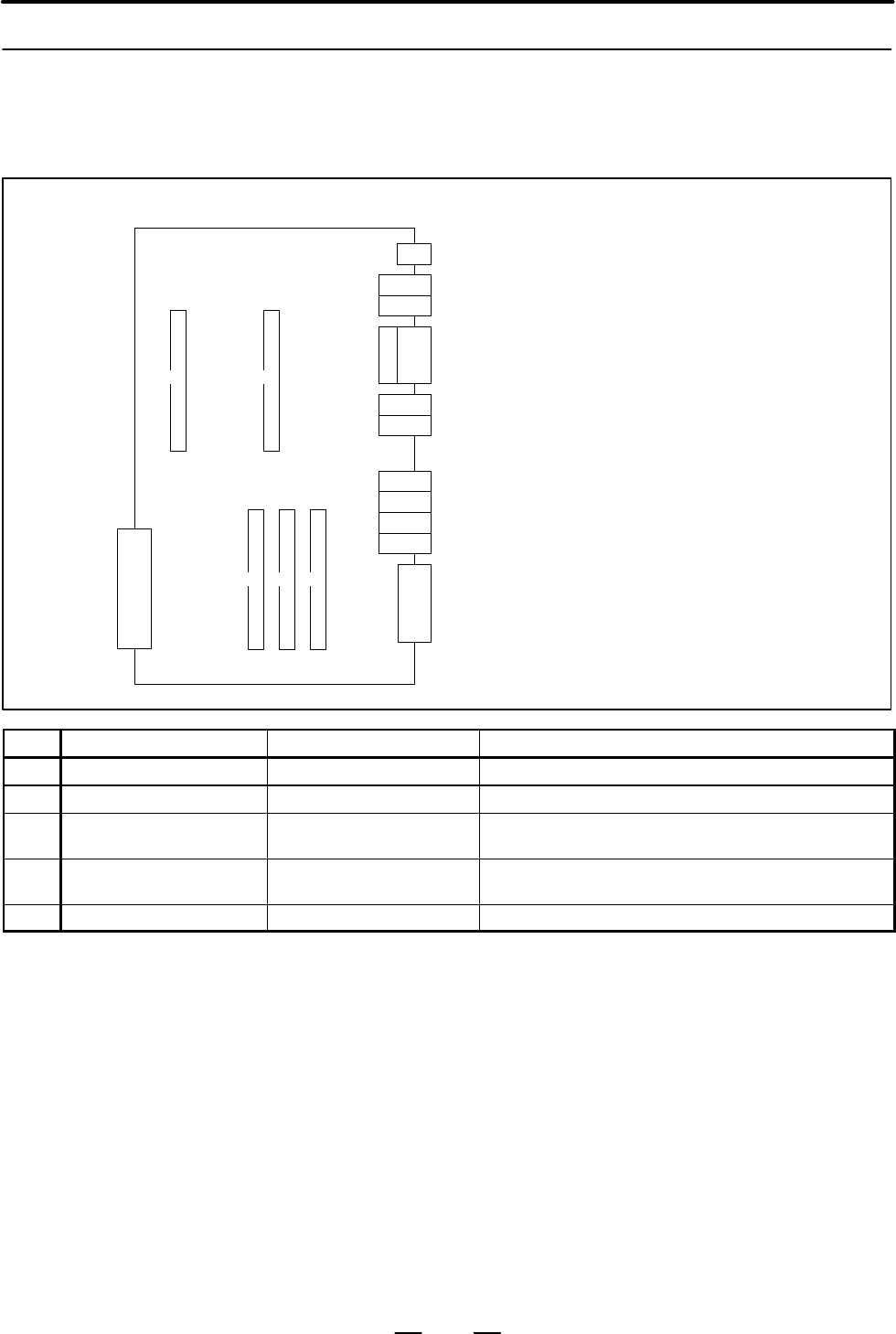

Drawing number : A16B–2203–0080
Connector
name
Connector
number
Use
Brake output
Emergency stop
DI/DO for workpiece feeder
DI/DO for loader operator’s panel
Serial I/O LINK
Servo waveform check output
Servo amplifier for 1st axis
Servo amplifier for 2nd axis
Servo amplifier for 3rd axis
Servo amplifier for 4th axis
DI/DO for loader main body
CNBK
CNPW
CNWF
CNTP
JD1A
JA8
JS1A
JS2A
JS3A
JS4A
CRM1
No
Name Code Function
1 FROM module A20B–2902–0082 FROM for macro
2 DRAM module A20B–2901–0940 to 0942 DRAM for system
3 Servo control module A20B–2902–0070,
A20B–2902–0061
3rd, 4th axis digital servo control
4 Servo control module A20B–2902–0070,
A20B–2902–0061
1st, 2nd axis digital servo control
5 PMC module A20B–2900–0142 to 0143 PMC arithmetic control
5.3.4
Series 16/18–MODEL C
Loader Control Board
