B-63943EN-2/01 6.MACRO EXECUTOR FUNCTION

- 169 -

NOTE

1 The macro variables starting with the one having

the number set in variable #8552 retain their

previous values until the <INPUT> key is pressed.

It is after the <INPUT> key is pressed that the new

values are set in these variables.

2 The values of variables #8503 and #8504 are not

guaranteed.

3 If a non-zero macro variable number is set in

variable #8552, this function is executed

unconditionally when the <INPUT> key is pressed.

In this case, the input data cannot be read from

character string variable #8508.

6.2.4 Consecutive Input of Cursor and Page Keys

Command key input variable #8501 allows consecutive input of

cursor and page keys.

When a cursor or page key is pressed and held down, the data for the

cursor or page key is set in variable #8501 with the following timing,

and can be read consecutively. Note that the cursor or page key is not

buffered in variable 8501 but that the data is read with the following

timing.

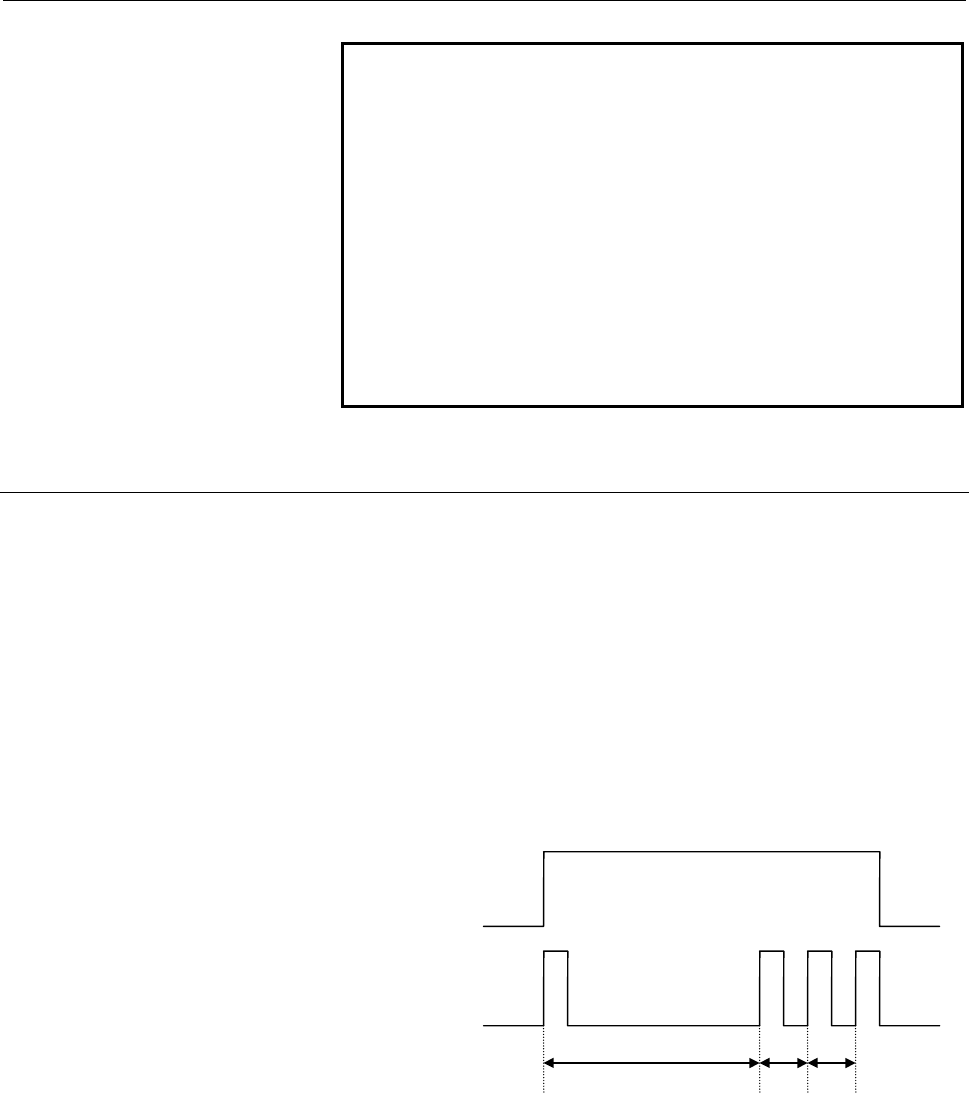

It is assumed below that data is read from variable #8501 as soon as it is

set.

Page key ON

OFF

#8501 = Data

#8501 = 0

256 32 32 (MSEC)
