FANUC PMC Simulator, Operator Additional Manual Page 40

Additional Manual
FANUC PMC Simulator
Operator’s Manual
01 05.08.01
T.Maruyama
New registration
A-90139EN/01
EDIT
DATE
DESIG.
DESCRIPTION
40/70
DRAW.NO.
4.3.2 Picture mode
This section describes the menu and the operation in picture mode.
Main menu
The composition of menu in picture mode is as follows.
Table 4.3.2 Menu list
Main menu Submenu Reference
Display Mode
CNC Display Size
4.3.4 Method of switching display mode
MDI Key
Window Size
PMC I/O Operation Panel
PMC Title Data
Ladder Execution Status
Signal Operation Replay Function
Option
4.2.5 I/O operation panel window
4.2.3 Title window
4.2.4 Ladder execution status window
8 SIGNAL OPERATION REPLAY FUNCTION
5 VARIOUS SETTINGS
7.3 SIMULATOR SETTING
Help About 3.2 DISPLAY OF VERSION INFORMATION
Exit 3.1.2 Exiting PMC simulator
Operation in Picture mode
There is no remarkable difference in the screen, and the operation in
PMC simulator mode basically. Slightly different points are as follows.
• Select a necessary screen and the setting from [PMC] of the pop-up
menu by right-clicking the mouse because the main menu does not
exist.

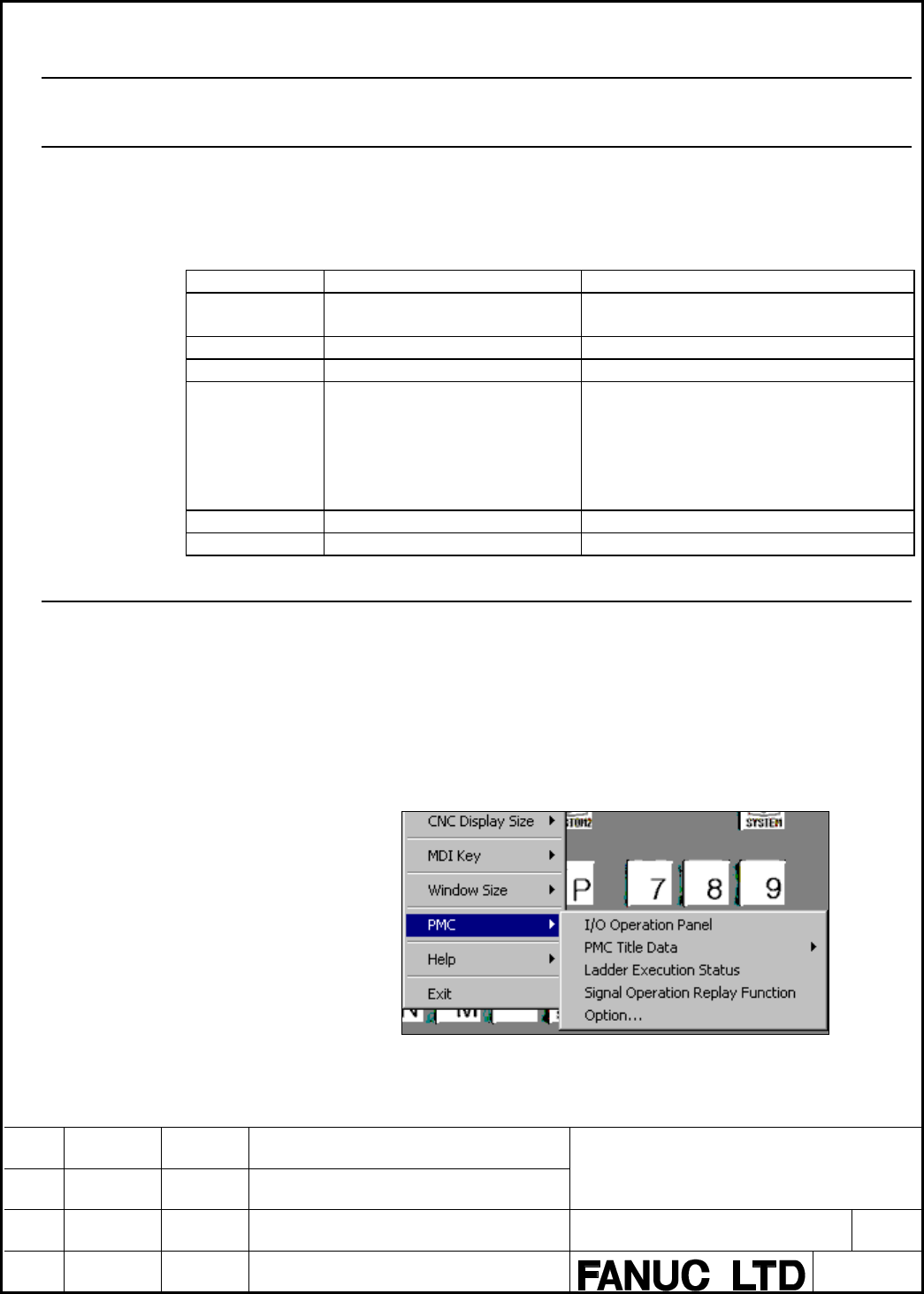

Fig.4.3.2 (a) Pop-up menu “PMC”
