FANUC PMC Simulator, Operator Additional Manual Page 53

Additional Manual
FANUC PMC Simulator
Operator’s Manual
01 05.08.01
T.Maruyama
New registration
A-90139EN/01
EDIT
DATE
DESIG.
DESCRIPTION
53/70
DRAW.NO.

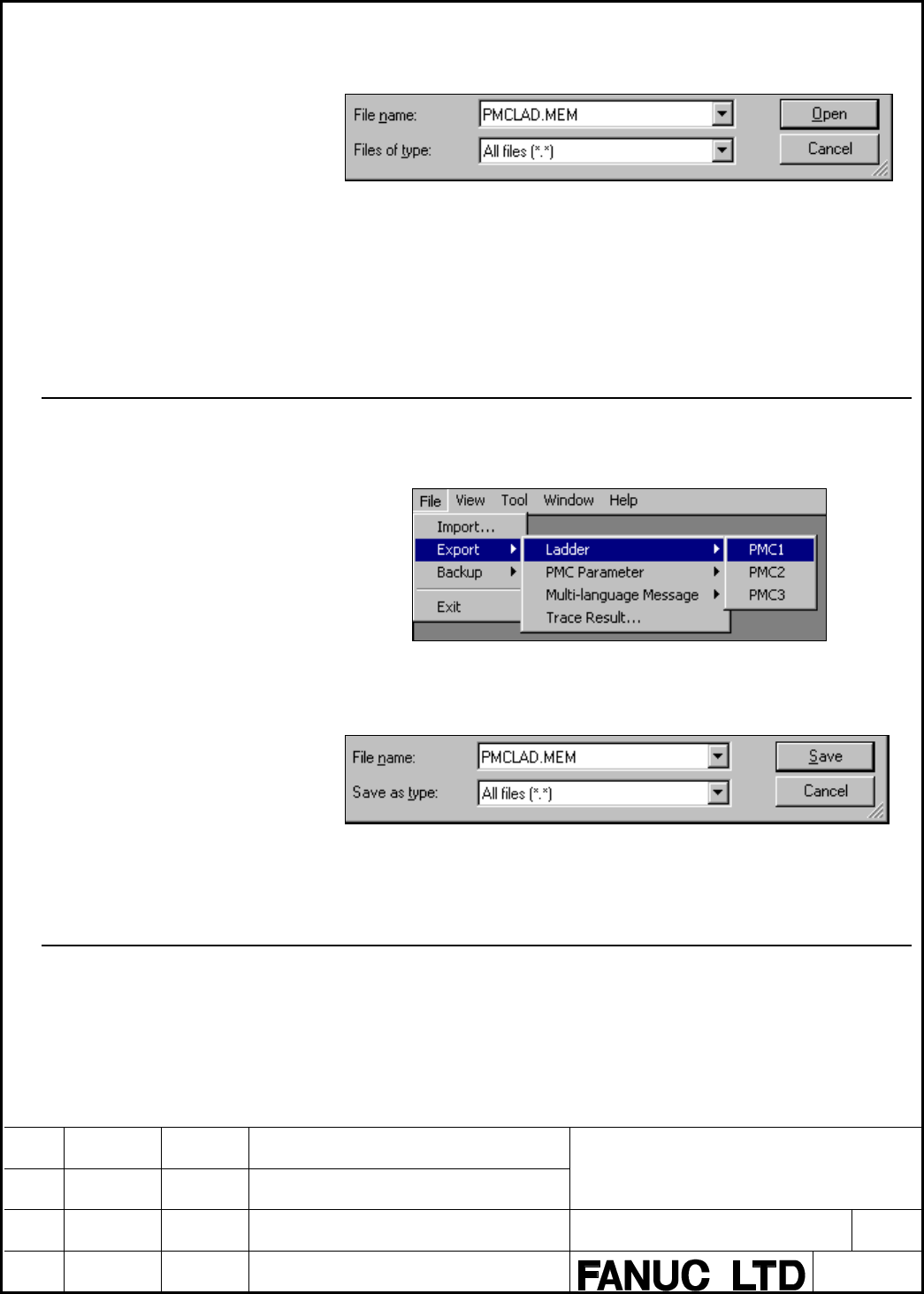

2. Select an importing file.
Fig.6.1.1 (b) Open file
3. Click the <Open> button.
4. After importing, operate the backup menu to store the ladder and
PMC multi-language message data to the selected machine
composition.
6.1.2 Export procedure
1. Select [File] – [Export] and select the program and PMC path. At
30i/31i/32i-A PMC, select the PMC path.
Fig.6.1.2 (a) Menu “Export”
2. Input the file name to export.
Fig.6.1.2 (b) Save file
3. Click the < Save > button.
6.1.3 Backup procedure
This operation is to save the PMC program edited on the simulator. It
corresponds to the backup operation to FROM on the actual PMC I/O
screen. The ladder and PMC multi-language message data are stored to
the selected machine composition after operating this backup menu.
