8.3 FILE OPERATION
This section describes the file operation of the signal operation file. The
file operation is operated by the toolbar.
•
(New)
Newly records the signal operation. The memorized operation
record is cleared. When the operation record has already been
memorized, the following message is displayed.

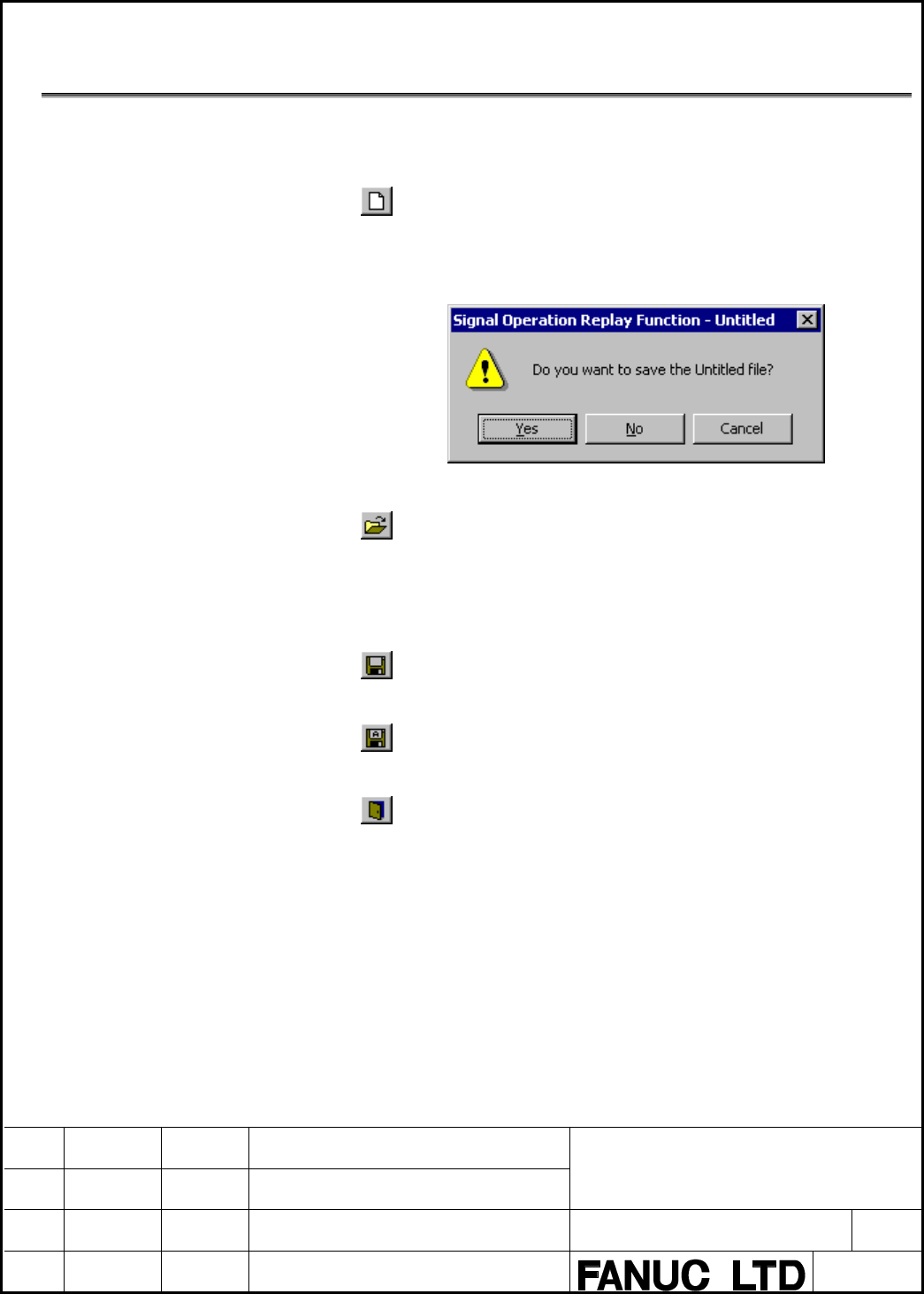

Fig.8.3 Confirmation message
•
(Open)
Open the saved signal operation file. The contents of the memory
is cleared, and it is changed to the contents of the opened file. The
confirmation message is displayed when any signal operation
save already memorized in the memory.
•
(Save)
Save the recorded signal operation in the file to update.
•
(Save as)
Name and save the record of signal operation in another file.
•
(Close)
Exit the signal operation replay function, and close the window.
When the operation record is already memorized, the
confirmation message is displayed.
Even if this function is exited, the contents of the memory remain.
Select “New” from the toolbar or push a “Clear” button to clear the
content of the memory.
