FANUC PMC Simulator, Operator Additional Manual Page 52

Additional Manual
FANUC PMC Simulator
Operator’s Manual
01 05.08.01
T.Maruyama
New registration
A-90139EN/01
EDIT
DATE
DESIG.
DESCRIPTION
52/70
DRAW.NO.
6 INPUT/OUTPUT AND BACKUP OF PMC
DATA
Input/output and back up the following PMC data are operated by the
PMC I/O operation. Their equivalents are operated by import, export
and back up menu on the PMC simulator.
• Ladder
• PMC parameter
• PMC multi-language message(30i/31i/32i-A PMC)
It is also possible to output the trace result data.
6.1 I/O OPERATION OF PMC SIMULATOR MODE
The imported ladder and PMC multi-language message data are stored
to the selected machine composition by operating backup after
importing. The PMC parameter is periodically stored in the machine
composition.
6.1.1 Import procedure
1. Select [File] – [Import] to open the import program.

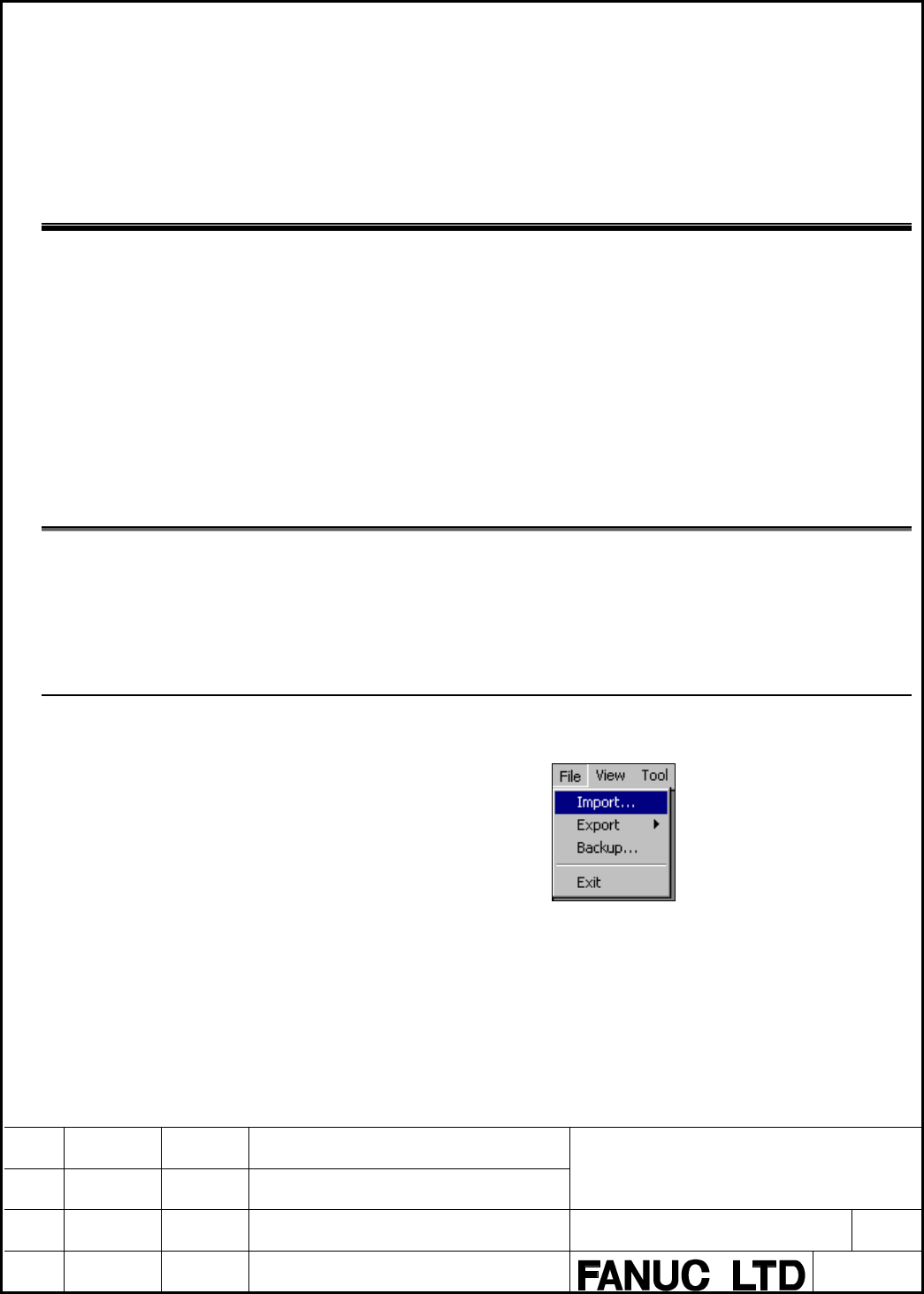

Fig.6.1.1 (a) Menu “Import”
Previous page
Next page
