FANUC PMC Simulator, Operator Additional Manual Page 58

Additional Manual
FANUC PMC Simulator
Operator’s Manual
01 05.08.01
T.Maruyama
New registration
A-90139EN/01
EDIT
DATE
DESIG.
DESCRIPTION
58/70
DRAW.NO.
•
Ethernet function
The setting is not necessary. The Ethernet function can be used at
any time.
Coordinated CNC/PMC simulator mode
•
Port number
Specify the port number of Ethernet. Select [Tool] - [Option] –
[General], and set the port number.
•
Ethernet function
When the CNC/PMC simulator is used, specify the setting on
built-in PMC online monitor.Set “HIGH SPEED” to “USE”.

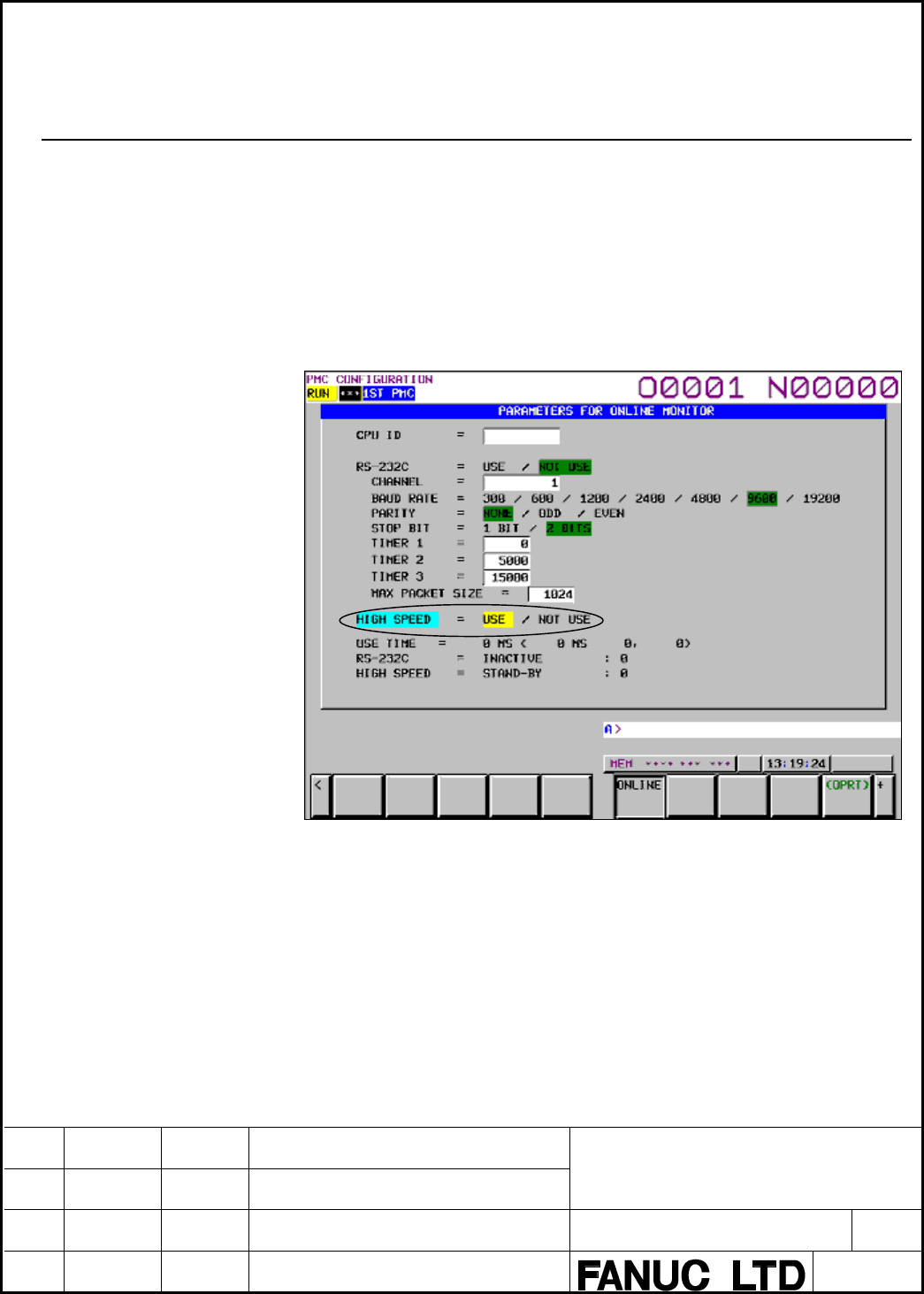

Fig.7.3 (b) I/O Online setting monitor of built-in PMC
