8.5 CONVERTING TRACED SIGNALS
Select the necessary signal from the trace result data by the trace
function of built-in PMC and FANUC LADDER-III, and convert it to
the signal record.
8.5.1 Change procedure
1. Select "Open" from the toolbar.
2. Specify the file name and select <Open >.

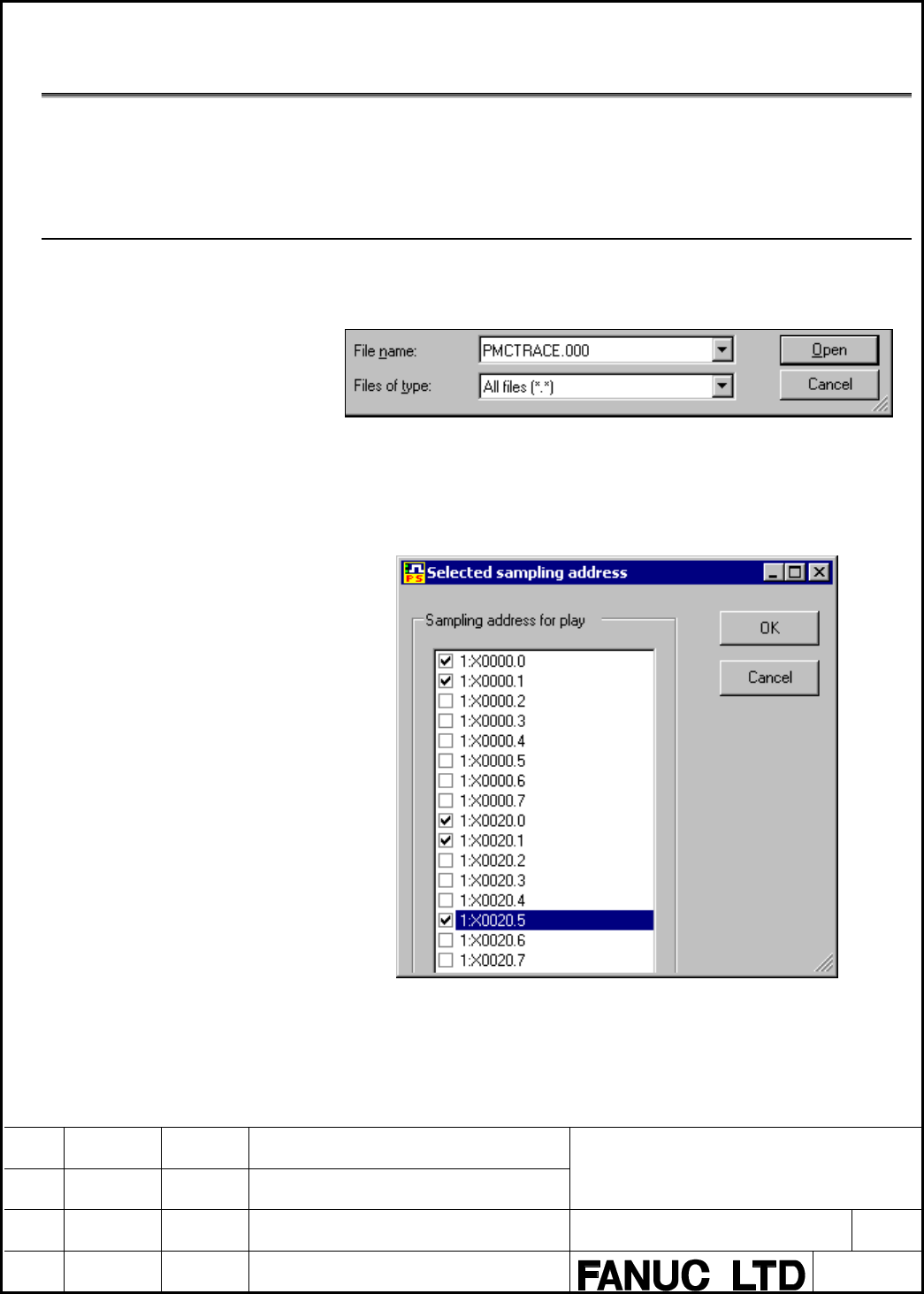

Fig.8.5.1 (a) Open file
3. When selecting the trace result file, it is distinguished automatically
and the list of the sampling address of the trace is displayed. Then,
check the necessary address.
Fig.8.5.1 (b) Sampling address list
4. Select <OK>. The signals of the selected sampling address are
converted on to the memory in the format of signal operation replay
function.
