7.4 CONNECT THE SIMULATOR ON THE SAME PC

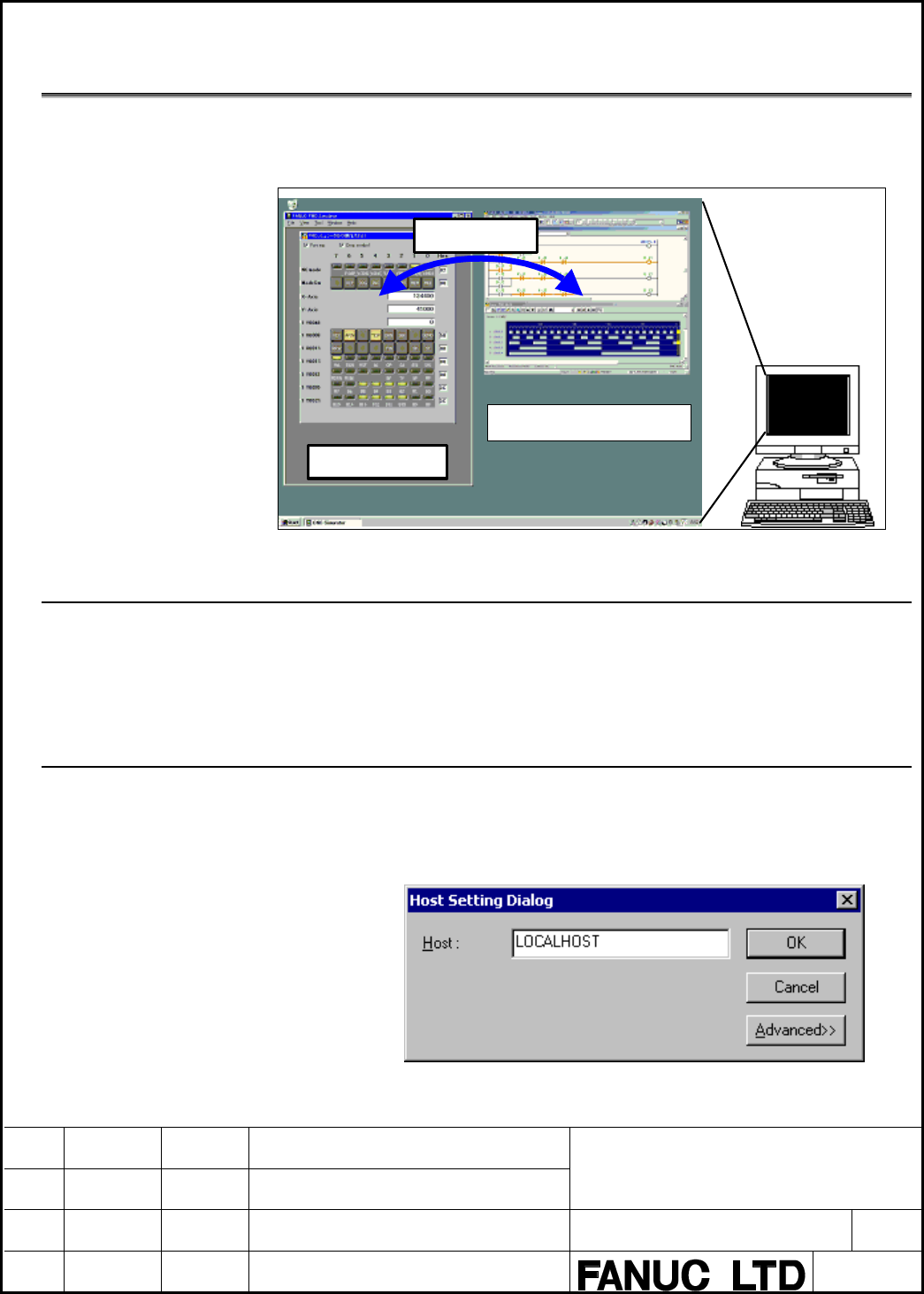

When the simulator and FANUC LADDER-III are connected on the
same PC, the setting of FANUC LADDER-III and the PC are needed.
FANUC LADDER-III
Simulator
Connection
Fig.7.4 (a) Connected on the same PC
PC setting
When the simulator and FANUC LADDER-III are connected on the
same PC, Hyper-threading of BIOS should be made effective. Because
the setting method is different according to the PC, refer to the manual
or help of the PC or inquire to the PC maker directly.
Operation of FANUC LADDER-III
1. Select [Tool] – [Communication]. Select [Network Address]
tab and click the <Add Host> button. The following dialog is
displayed and set "LOCALHOST".
Fig.7.4 (b) Host setting
