FS 16i/18i/21i-TB Additional Manual Page 14

Additional Manual
(Look-ahead bell-shaped acceleration/deceleration
before interpolation)
(Look-ahead smooth bell-shaped
acceleration/deceleration before interpolation)
Time
Tangential
speed
Time
Time
A
cceleration
Jerk
Tangential
speed
Time
A
cceleration
Jerk
Time
Time
Acceleration change time
Time specified in parameter
No. 1772
Jerk change time
Time at a ratio specified
in parameter No. 1790 to
the acceleration change
time

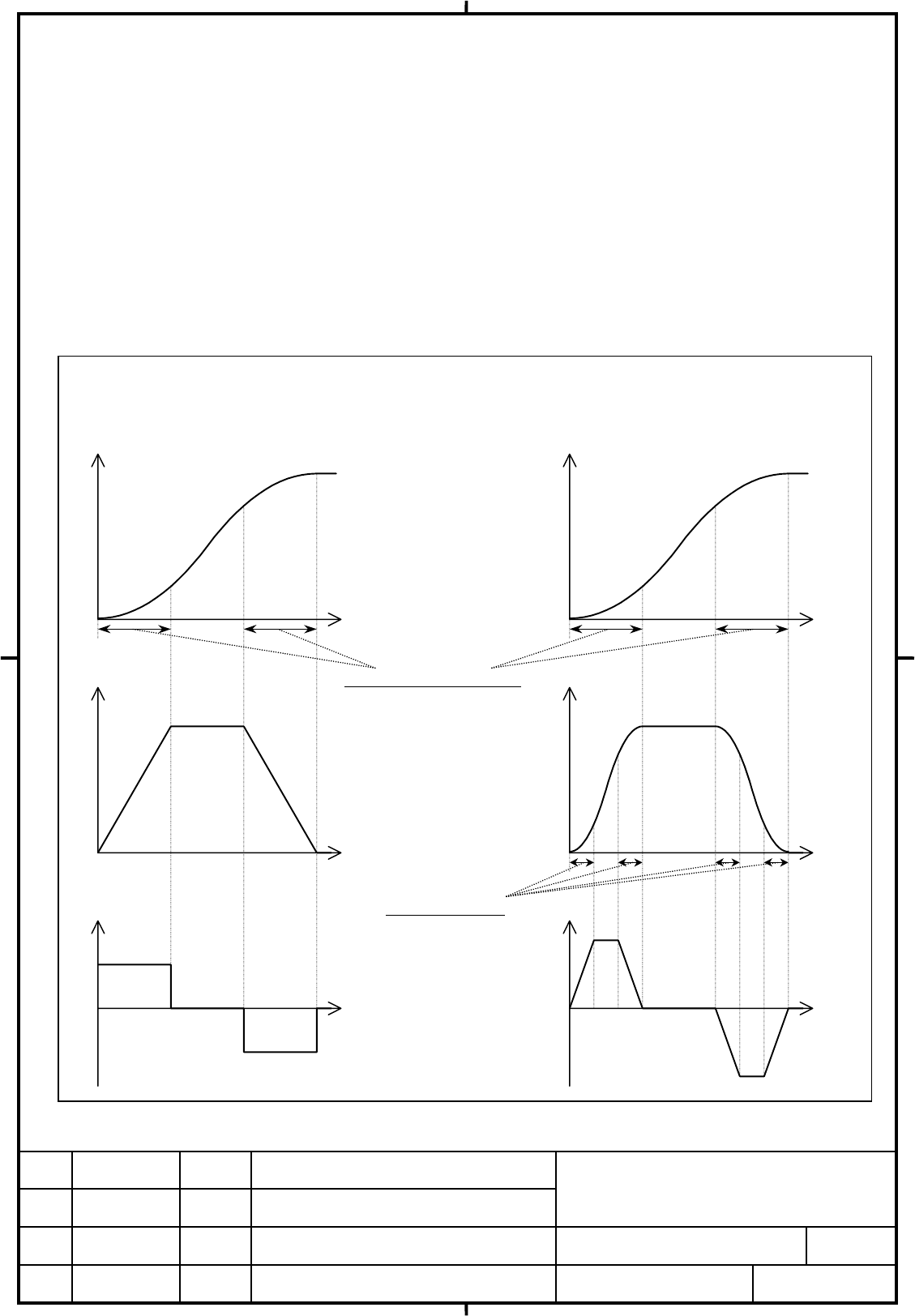

(2) Look-ahead smooth bell-shaped acceleration/deceleration before interpolation
Look-ahead bell-shaped acceleration/deceleration before interpolation achieves smooth acceleration
/deceleration by making constant changes to acceleration in the specified acceleration change time.
Look-ahead smooth bell-shaped acceleration/deceleration before interpolation performs control in such a
way that the acceleration changes in a bell-shaped form, by specifying the jerk change time for bell-shaped
acceleration/deceleration before interpolation in parameter No.1790.
For this reason, acceleration/deceleration can become smoother, leading to a reduction in vibration and
shocks to the machine at acceleration/deceleration.
TITLE
FANUC Series 16i/18i/21i-TB
AI nano contour control
Specifications
EDIT. DATE DESIG. DESCRIPTION
ＦＡＮＵＣ ＬＴＤ
SHEET
14/37
DRAW. NO.
A-78962EN (2) is added. 2003.03.27 02
CUST.
