FS 16i/18i/21i-TB Additional Manual Page 31

Additional Manual
TITLE
FANUC Series 16i/18i/21i-TB
AI nano contour control
Specifications
EDIT. DATE DESIG. DESCRIPTION
ＦＡＮＵＣ ＬＴＤ
SHEET
31/37
DRAW. NO.
A-78962EN (2) is added. 2003.03.27 02
CUST.
1773 Time constant T or T 1 used for linear acceleration/deceleration or
bell-shaped acceleration/deceleration in rapid traverse for each axis
Data type : Word axis
Unit of data : 1 msec
Valid range : 0 to 4000
Set time constant T or T 1 used for linear acceleration/deceleration or bell-shaped acceleration/
deceleration in rapid traverse for each axis in AI nano contour control mode.
When the setting value is 0, parameter No.1620 is used.
1774 Time constant T2 used for bell-shaped acceleration / deceleration in rapid traverse for
each axis
Data type : Word axis
Unit of data : 1 msec
Valid range : 0 to 512
Set time constant T2 used for bell-shaped acceleration / deceleration in rapid traverse for each axis in AI
nano contour control mode.
When the setting value is 0, parameter No.1621 is used.

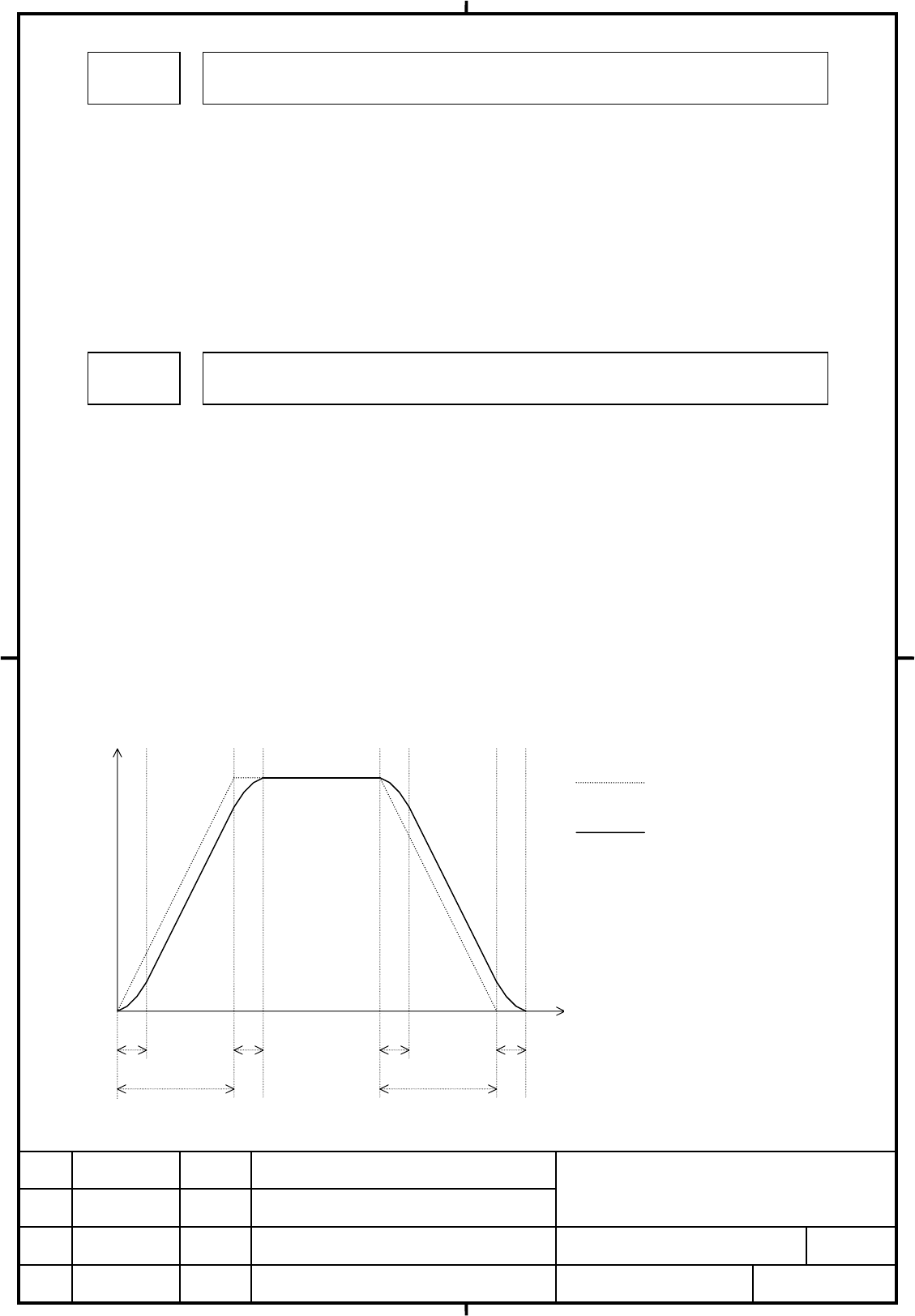

Set tb of the following figure. When the setting value is 0, the acceleration/deceleration becomes
linear-shaped acceleration/deceleration.
Linear type acceleration
/ deceleration
Bell-shaped type
acceleration / deceleration
ta It depends on linear type acceleration.
tb Bell type time constant
Feedrate
Time
tb tb
tb
tb
ta
ta
