FS 16i/18i/21i-TB Additional Manual Page 5

Additional Manual
TITLE
FANUC Series 16i/18i/21i-TB
AI nano contour control
Specifications
EDIT. DATE DESIG. DESCRIPTION
ＦＡＮＵＣ ＬＴＤ
SHEET
5/37
DRAW. NO.
A-78962EN (2) is added. 2003.03.27 02
CUST.
2.5 Look-ahead bell-shaped acceleration / deceleration before interpolation
(The option of look-ahead bell-shaped acceleration/deceleration before interpolation is necessary.)
Linear acceleration/deceleration before interpolation for cutting feed in the AI nano contour control mode
can be changed to bell-shaped acceleration/deceleration before interpolation. With bell-shaped
acceleration/deceleration before interpolation, smooth acceleration/deceleration can be applied to the
cutting feedrate to reduce the shock on the machine by fluctuations in acceleration that are involved in
changes in the cutting feedrate.

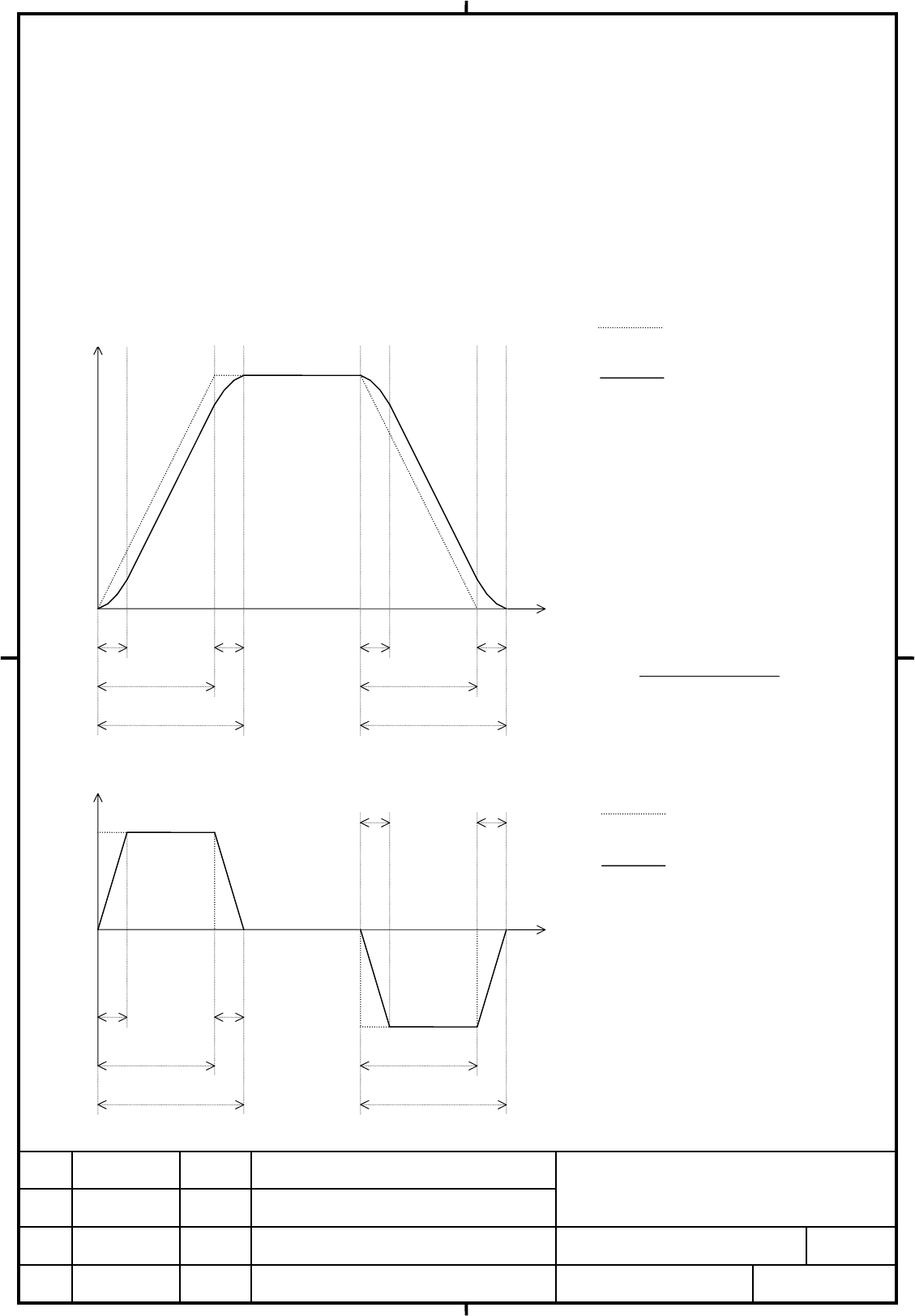

To select look-ahead bell-shaped acceleration/deceleration before interpolation, set parameter BEL
(No.1603#7) to 1 and set tb (Bell type time constant) in the figure below into parameter No.1772.
tb
tb
tb
tb
ta ta
tc tc
Acceleration
tb tb
tb
tb
ta
ta
tc
tc
Feedrate
Time
Time
Linear acceleration/
deceleration
Bell-shaped acceleration/
deceleration
ta Depends on the linear acceleration.
tb Time constant for bell-shaped
acceleration/deceleration
tc Bell-shaped acceleration/
deceleration time
tc = ta + tb
ta is not constant and depends
on the specified feedrate.
ta =
onacceleratiLinear
feedrate Specified
tb is constant.
Linear acceleration
/
deceleration
Bell-shaped acceleration/
deceleration
ta Depends on linear acceleration.
tb Time constant for bell-shaped
acceleration/deceleration
tc Bell-shaped acceleration/
deceleration time
tc = ta + tb
