FS 16i/18i/21i-TB Additional Manual Page 24

Additional Manual
TITLE
FANUC Series 16i/18i/21i-TB
AI nano contour control
Specifications
EDIT. DATE DESIG. DESCRIPTION
ＦＡＮＵＣ ＬＴＤ
SHEET
24/37
DRAW. NO.
A-78962EN (2) is added. 2003.03.27 02
CUST.

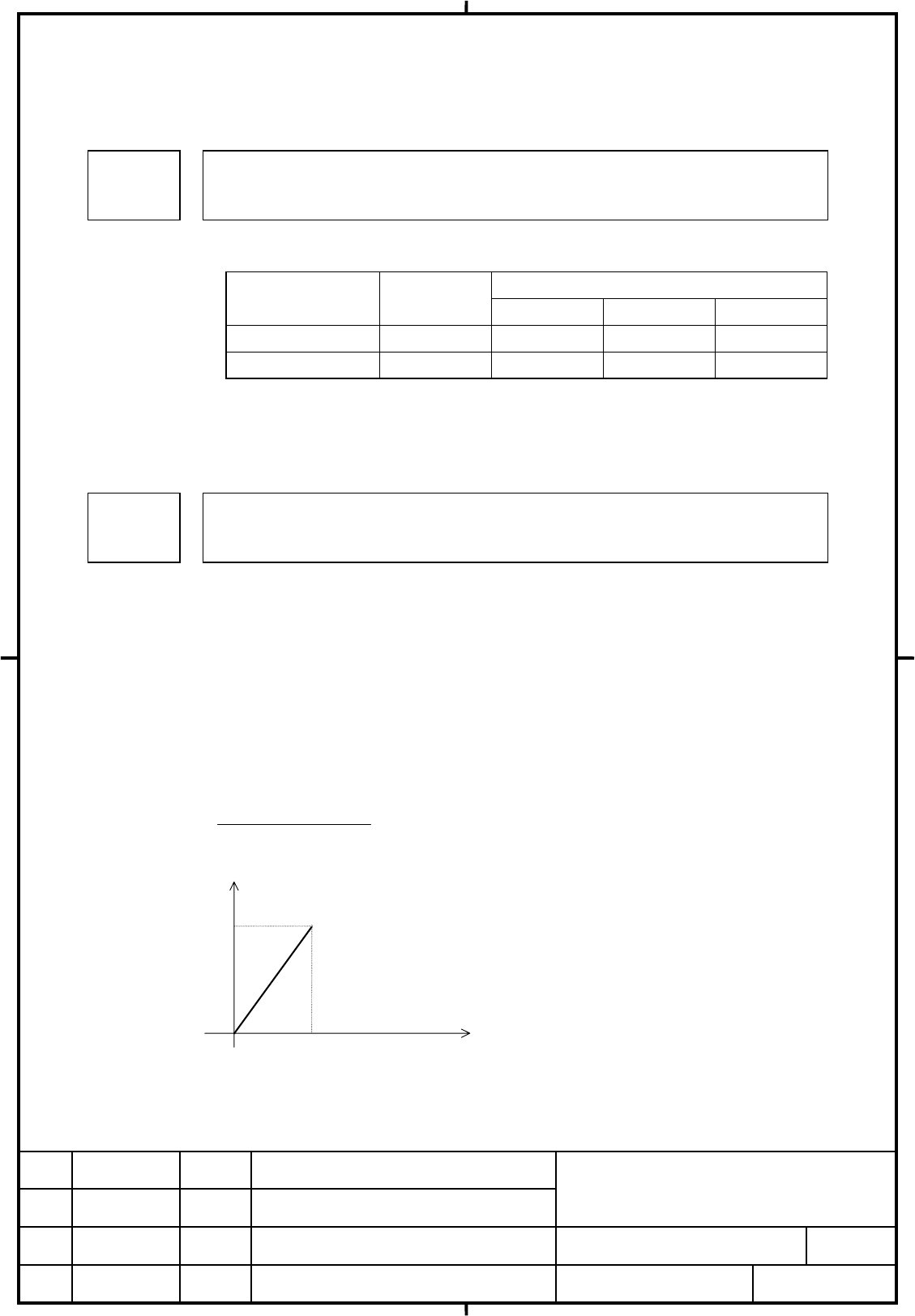

3. Parameter
3.1 Look-ahead linear acceleration / deceleration before interpolation
1770 Parameter 1 for setting an acceleration for linear acceleration / deceleration before
interpolation (maximum machining speed during linear acceleration / deceleration
before interpolation)
Data type : 2-word
Unit of data : Increment system Unit of data Valid range
Valid range : IS-B IS-C IS-D
(2)
Millimeter machine 1 mm/min 6 to 240000 6 to 100000 6 to 10000
Inch machine 0.1 inch/min 6 to 96000 6 to 48000 6 to 4000
In this parameter, set the maximum machining speed during linear acceleration / deceleration before
interpolation.
1771 Parameter 2 for setting an acceleration for linear acceleration / deceleration before
interpolation (time used to reach the maximum machining speed during linear
acceleration / deceleration before interpolation)
Data type : Word
Unit of data : 1 msec
Valid range : 0 to 4000
In this parameter, set the time (time constant) used to reach the speed set in parameter No.1770.
(Note1) When 0 is set in parameter No.1770 or parameter No.1771, P/S 5157 is generated.
(Note2) In parameter No.1770 and 1771, set values that satisfies the following.
Parameter No.1770
Parameter No.1771
≥ 5
Feedrate
Time
Parameter
No.1770
Parameter No.1771
Previous page
Next page
