2.10 Rapid traverse
Linear interpolation type or non-linear interpolation type is selected by parameters for rapid traverse.
When parameter AIR (No.7054#1)=0 or LRP (No.1401#1)=1, Linear interpolation type is selected.
When parameter AIR (No.7054#1)=1 and LRP (No.1401#1)=0, non-linear interpolation type is selected.
Linear interpolation type
In case of linear interpolation type, acceleration/deceleration before interpolation is effective. And linear
type or bell-shaped type acceleration/deceleration is selected by parameter RBL(No.1603#6).
(1) Feedrate at movement
The smallest value of the following expressions among the moving axes is assumed to be the
feedrate at movement.
rapid traverse rate for each axis (No.1420) ×
axis each of distance
block of distance
(2) Acceleration for linear acceleration / deceleration before interpolation
In case of linear type acceleration / deceleration ♦
The smallest value of the following expressions among the moving axes is assumed to be the
acceleration for linear acceleration / deceleration before interpolation.
(No.1773) axis eachfor constant time
(No.1420) axis eachfor rate traverserapid
×
axis each of distance
block of distance
In case of bell-shaped type acceleration / deceleration ♦
The parameter No.1774 (Time constant t used for bell-shaped acceleration/deceleration in rapid
traverse for each axis) of the axis, which has the smallest value calculated by the above expression,
becomes effective to the feedrate calculated as linear type acceleration /deceleration.

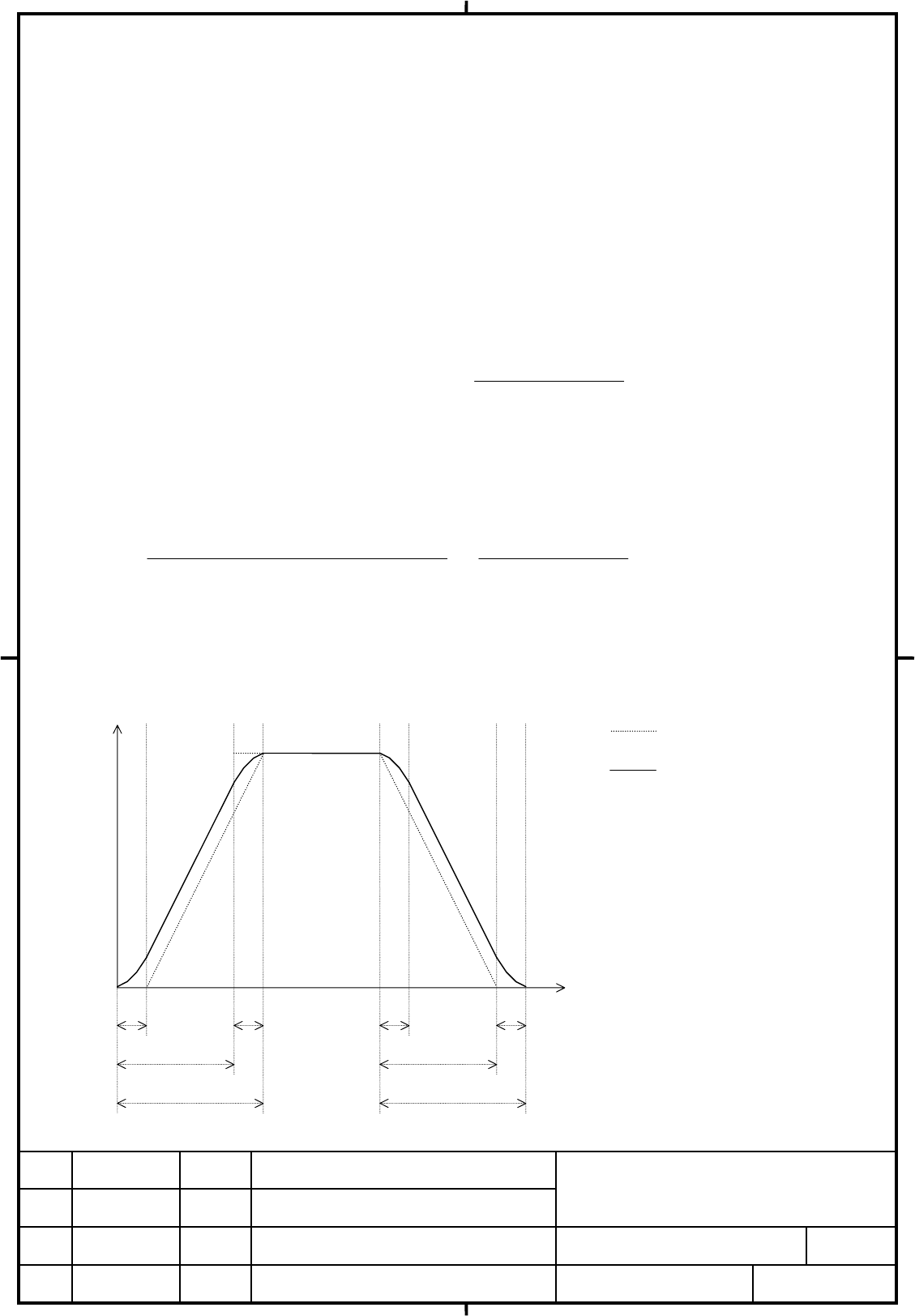

Linear type acceleration
/deceleration
Bell type acceleration
/deceleration
ta It depends on linear type
acceleration.
tb Bell type time constant
tc Acceleration / deceleration
time of bell type
tc = ta + tb
ta is not constant. It depends on
specified feedrate and time
constant of rapid traverse.
tb is decided by the axis.
Feedrate
tc
tc
ta
ta
tb
tb
tb tb
Time
