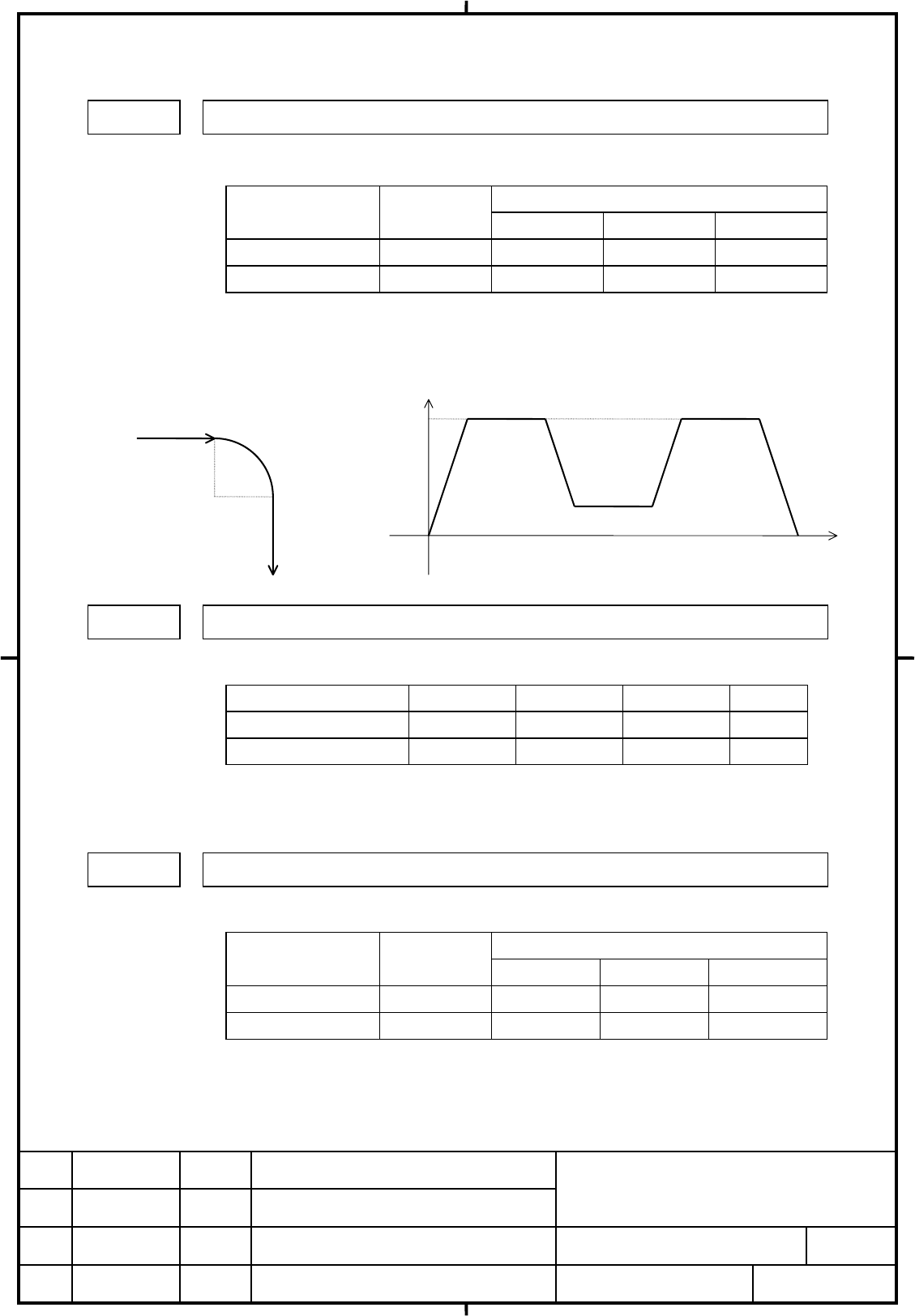

3.5 Feedrate clamp based on arc radius
1730 Maximum feedrate for arc radius R
Data type : Word
Unit of data : Increment system Unit of data Valid range
Valid range : IS-B IS-C IS-D
(2)
Millimeter machine 1 mm/min 8 to 15000 8 to 12000 8 to 10000
Inch machine 0.1 inch/min 8 to 6000 8 to 4800 8 to 4000
In this parameter, set a maximum feedrate for the arc radius set in parameter No.1731.
(Example)
Feedrate
N2
N1
N3
r
b
a
a
b
N3 N2
N1
Time
1731 Arc radius value corresponding to a maximum feedrate
Data type : 2-word
Unit of data : Increment system IS-B IS-C IS-D Unit
(2)
Millimeter machine 0.001 0.0001 0.00001 mm
Inch machine 0.0001 0.00001 0.000001 inch
Valid range : 1000 to 99999999
In this parameter, set the arc radius corresponding to the maximum feedrate set in parameter No.1730.
1732 Minimum value (RVmin) for feedrate clamp based on arc radius
Data type : Word
Unit of data : Increment system Unit of data Valid range
Valid range : IS-B IS-C IS-D
(2)
Millimeter machine 1 mm/min 0 to 15000 0 to 12000 0 to 10000
Inch machine 0.1 inch/min 0 to 6000 0 to 4800 0 to 4000
The feedrate clamp based on arc radius function reduces the maximum feedrate as the arc radius
decreases. When the specified maximum feedrate is not greater than RVmin, RVmin is used as the
maximum feedrate.
