FS 16i/18i/21i-TB Additional Manual Page 4

Additional Manual
TITLE
FANUC Series 16i/18i/21i-TB
AI nano contour control
Specifications
EDIT. DATE DESIG. DESCRIPTION
ＦＡＮＵＣ ＬＴＤ
SHEET
4/37
DRAW. NO.
A-78962EN (2) is added. 2003.03.27 02
CUST.

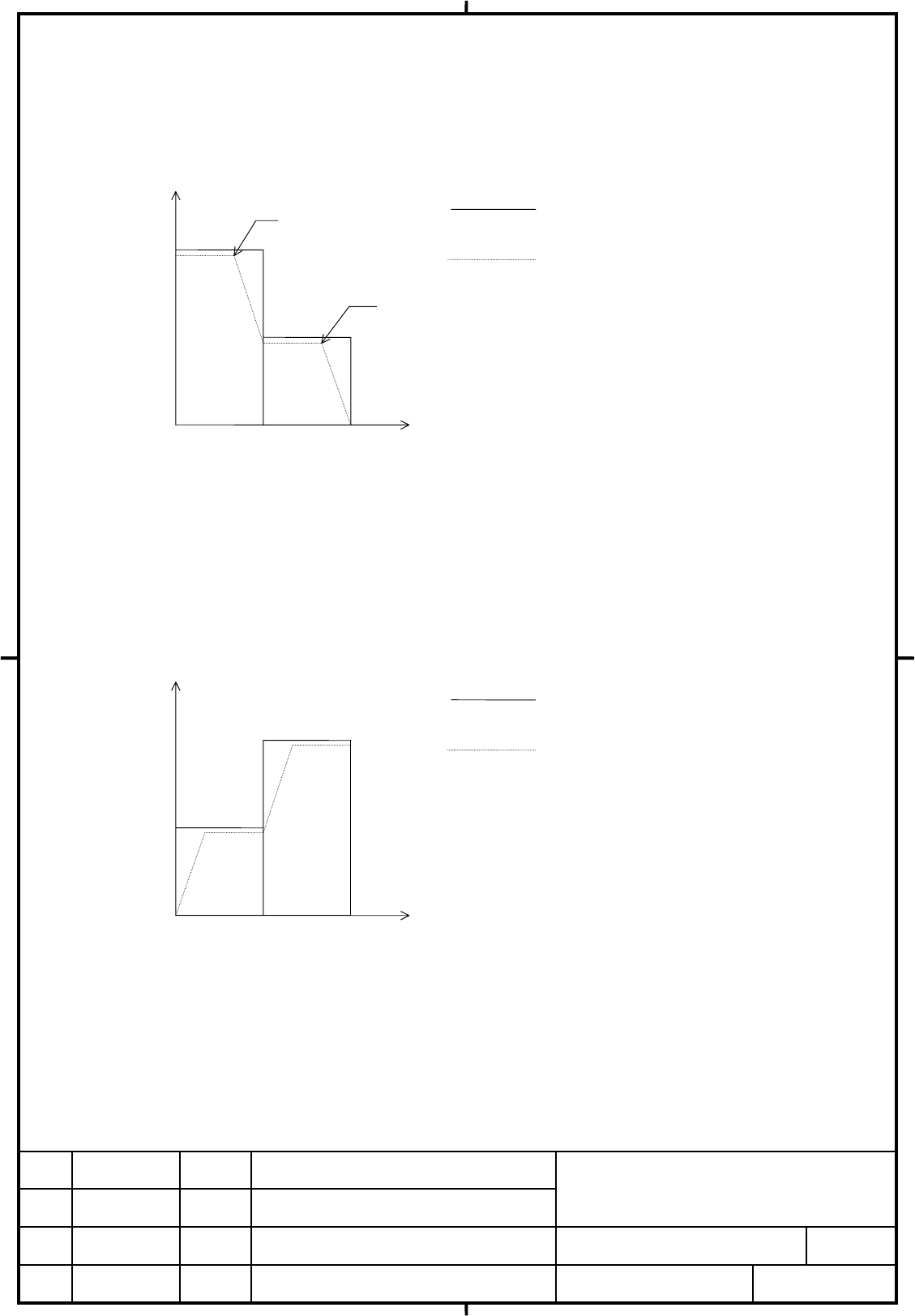

(Example of deceleration)
Deceleration is started in a prior block so that the feedrate specified for the target block is reached at the
execution.
To decelerate from feedrate F3 to F2, deceleration must start with point 1.
To decelerate from feedrate F2 to F1, deceleration must start with point 2.
(Example of acceleration)
Acceleration is performed so that the feedrate specified for the target block is reached at the execution.
Feedrate
Time
F3
F2
F1
N2 N1
F1
F2
F3
Time
Feedrate
Point2
Point1
N2 N1
Specified feedrate
Feedrate determined by
acceleration/deceleration
before interpolation
Specified feedrate
Feedrate determined by
acceleration/deceleration
before interpolation
Parameter No.1770 and 1771 set acceleration rate of Look-ahead linear acceleration / deceleration before
interpolation.
