FS 16i/18i/21i-TB Additional Manual Page 18

Additional Manual
TITLE
FANUC Series 16i/18i/21i-TB
AI nano contour control
Specifications
EDIT. DATE DESIG. DESCRIPTION
ＦＡＮＵＣ ＬＴＤ
SHEET
18/37
DRAW. NO.
A-78962EN (2) is added. 2003.03.27 02
CUST.
2.11 Feed per minute (G98) / Feed per revolution (G99)
The feed per minute and feed per revolution can be commanded in AI nano contour control mode. And AI
nano contour control mode can be commanded in the feed per minute mode or feed per revolution mode.
The unit and range at the feedrate (F) is the same as the case of AI nano contour control off mode.

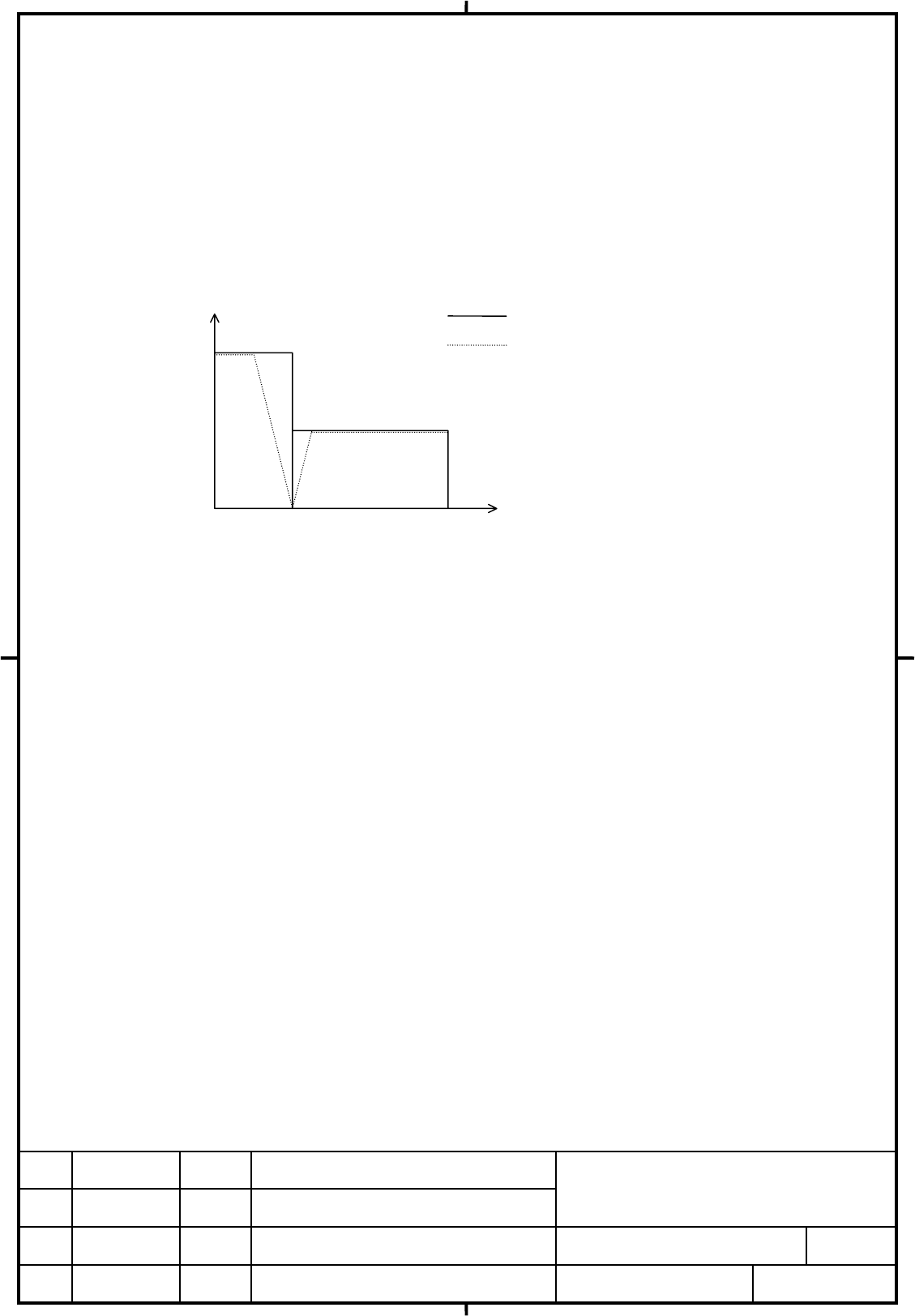

When the spindle speed (S) is changed, the feedrate is decelerated until becoming 0 once. The example
is shown as follows.
Feedrate
:
N10 G01 G99 U100. S2000 F1.0 ;
N20 U100. S1000 ;
S2000 S1000 :
Time
N10 N20
Feed after acc./dec.before interpolation is applied
Specified feedrate
[mm/min]
F2000
F1000
Usually the feedrate of the servo axis is decided in proportion to spindle speed during feed per
revolution.
In AI nano contour control mode, in addition, deceleration functions, such as the automatic corner
deceleration and feedrate clamp based on acceleration, work to the feedrate of the servo axis which is
decided in proportion to spindle speed. At this time, the spindle speed does not decelerate though the
feedrate of the servo axis decelerates. Therefore, please note that the pitch changes temporarily when
the deceleration function works.
2.12 Constant surface speed control (G96)
(The option for constant surface speed control is required.)
The constant surface speed control mode or off mode can be commanded in AI nano contour control
mode. And AI nano contour control mode can be commanded in the constant surface speed control mode
or off mode. The unit and range at spindle speed or surface speed is the same as the case of AI nano
contour control off mode.
The position coderless constant surface speed control is available in AI nano contour control mode.
(The option for position coderless constant surface speed control is required.)
