FS 16i/18i/21i-TB Additional Manual Page 6

Additional Manual
TITLE
FANUC Series 16i/18i/21i-TB
AI nano contour control
Specifications
EDIT. DATE DESIG. DESCRIPTION
ＦＡＮＵＣ ＬＴＤ
SHEET
6/37
DRAW. NO.
A-78962EN (2) is added. 2003.03.27 02
CUST.

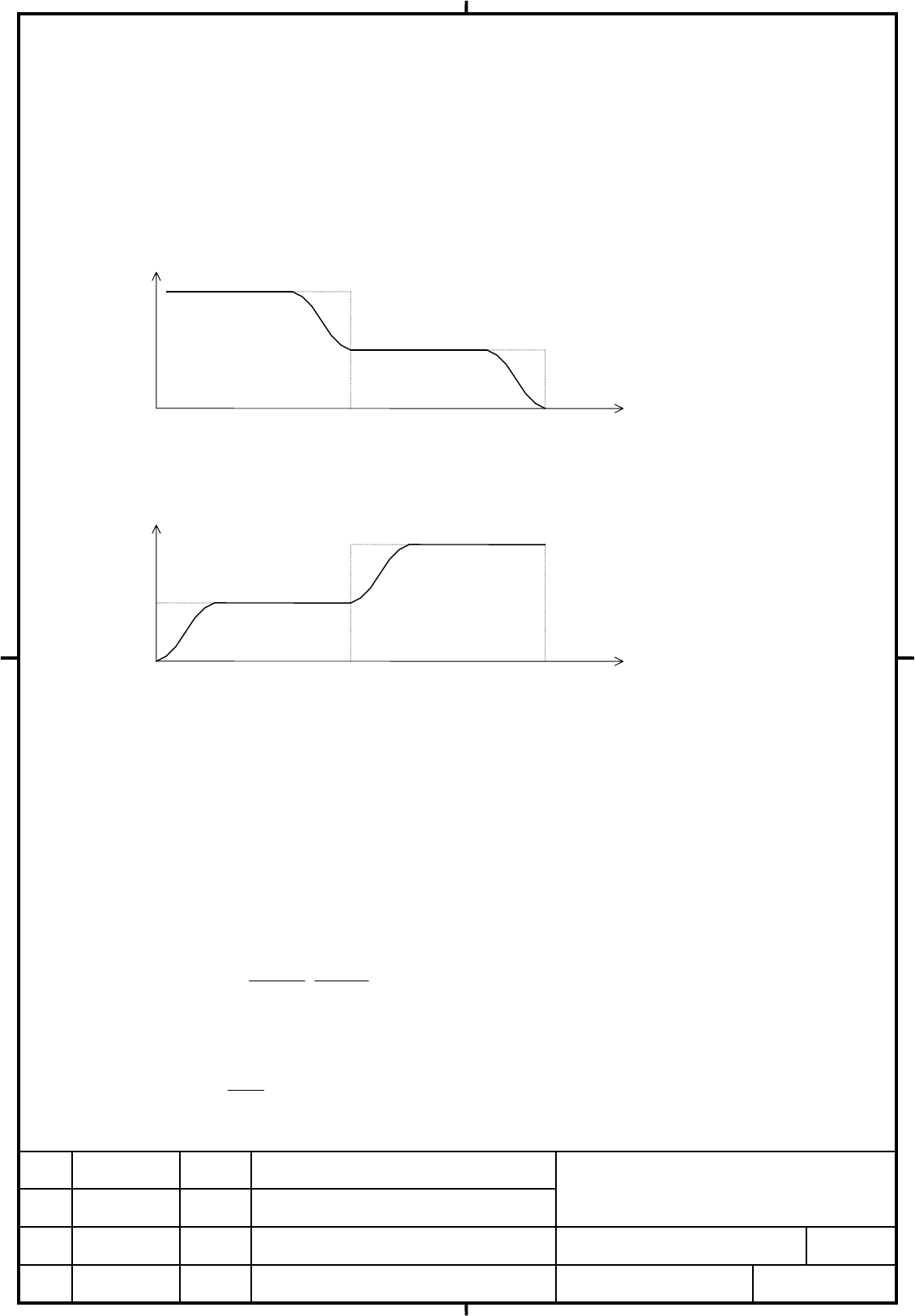

When the feedrate is changed, deceleration and acceleration are performed as follows:
For deceleration: Bell-shaped deceleration is started in the preceding block so that deceleration
terminates by the beginning of the block in which the feedrate is changed.
For acceleration: Bell-shaped acceleration is started after the beginning of the block in which the feedrate
is changed.
Feedrate
Fa
Fb
N2N1
Time
Deceleration
Fb
Feedrate
Acceleration
Fa
N2N1
Time
2.6 Automatic corner deceleration
Between continuous two blocks, the feedrate difference for an axis may exceed the setting (parameter
No.1783). In this case, the feedrate at the corner is calculated as follows based on the axis for which the
ratio of the actual feedrate difference to the allowable feedrate difference is the largest. Deceleration is
performed so that the feedrate is reached at the interface of the blocks.
The change in the feedrate for each axis (Vx, Vz, ...) during movement at the specified feedrate F is
compared with the setting of parameter No.1783 (Vprm-x, Vprm-z, ...). If the change in the feedrate for any
axis exceeds the setting of the parameter, the following expression is used:
R
= max
max
−−
,...,
ZPRM
Z
XPRM
X
V
V
V
V
The required feedrate (Fc) is obtained as follows and deceleration is performed at the corner:
F
= F ×
C
1
R
max
