FS 16i/18i/21i-TB Additional Manual Page 17

Additional Manual
TITLE
FANUC Series 16i/18i/21i-TB
AI nano contour control
Specifications
EDIT. DATE DESIG. DESCRIPTION
ＦＡＮＵＣ ＬＴＤ
SHEET
17/37
DRAW. NO.
A-78962EN (2) is added. 2003.03.27 02
CUST.
♦

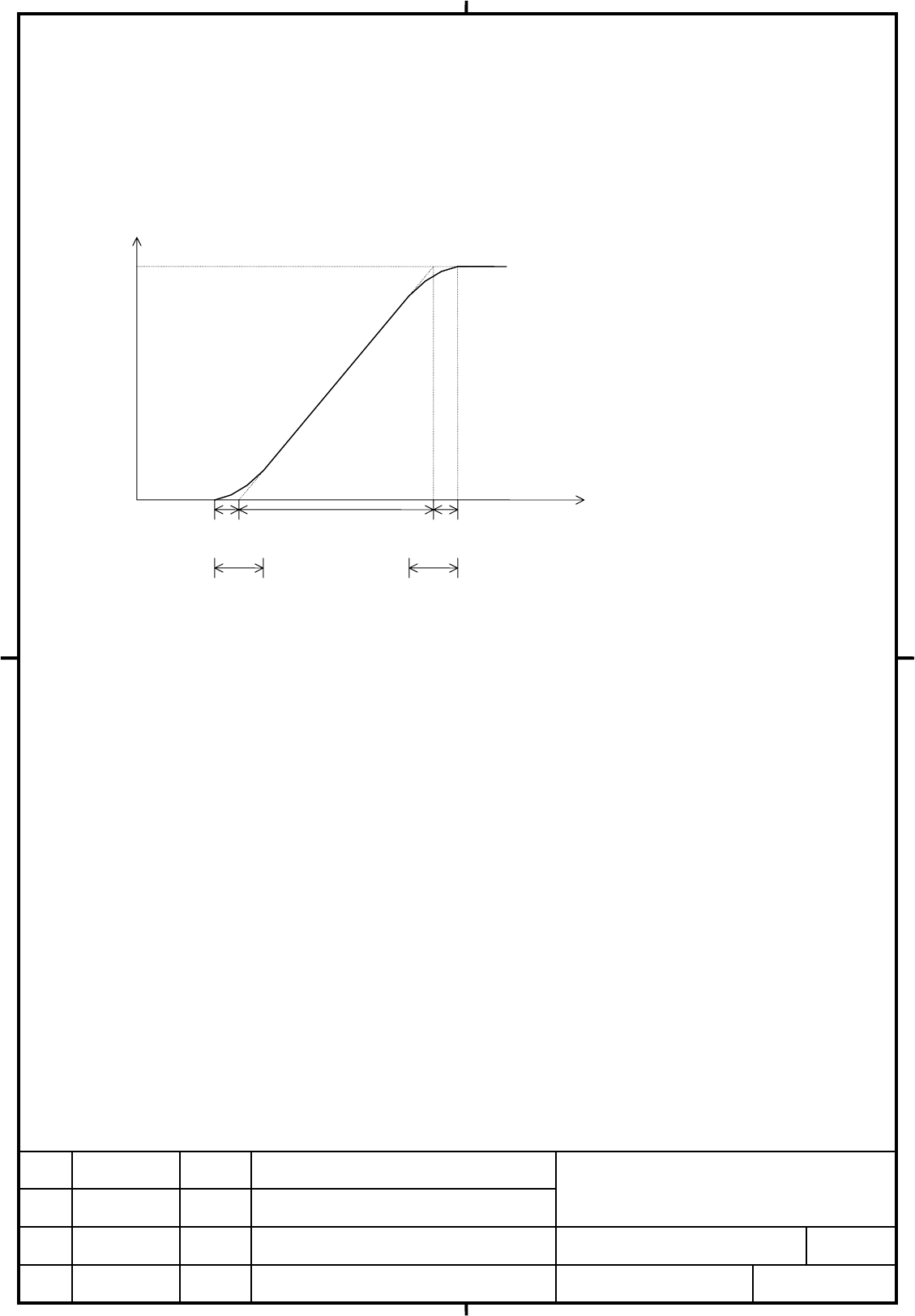

When supposing that the feedrate is F, the acceleration at linear shaped is A and the time constant of
bell-shaped shaped is T, the time for acceleration / deceleration is as follows.
Time for acceleration / deceleration = F / A (in case of linear type)
= F / A + T (in case of bell-shaped type)
F
T/2
T T
F/A
T/2
Time
F/A : Time for acceleration at linear type
T : Time for bell type
Feedrate
Non-linear interpolation type
In case of non-linear interpolation type, acceleration/deceleration after interpolation is effective.
Parameter No.1420 is used for each axis feedrate and parameter No.1773 is used for time constant of
each axis. When parameter No.1774 is set to non-zero value, bell-shaped acceleration/deceleration can
be selected for each axis.
(Note) The overlapping rapid traverse blocks is ineffective in AI nano contour control mode.
