FS 16i/18i/21i-TB Additional Manual Page 26

Additional Manual
TITLE
FANUC Series 16i/18i/21i-TB
AI nano contour control
Specifications
EDIT. DATE DESIG. DESCRIPTION
ＦＡＮＵＣ ＬＴＤ
SHEET
26/37
DRAW. NO.
A-78962EN (2) is added. 2003.03.27 02
CUST.
3.2 Look-ahead bell-shaped acceleration / deceleration before interpolation
(The option of look-ahead bell-shaped acceleration/deceleration before interpolation is necessary.)
#7 #6 #5 #4 #3 #2 #1 #0
1603 BEL
Data type : Bit
BEL : The acceleration/deceleration type during AI nano contour control mode
0 : Linear-type acceleration/deceleration before look-ahead interpolation
1 : Bell-shaped type acceleration/deceleration before look-ahead interpolation
(Note) The option of look-ahead bell-shaped acceleration/deceleration before interpolation is necessary.
1772 The time constant for the bell-shaped acceleration/deceleration before look-ahead
interpolation
Data type : Byte
Unit of data : 1 msec
Valid range : 0 to 255

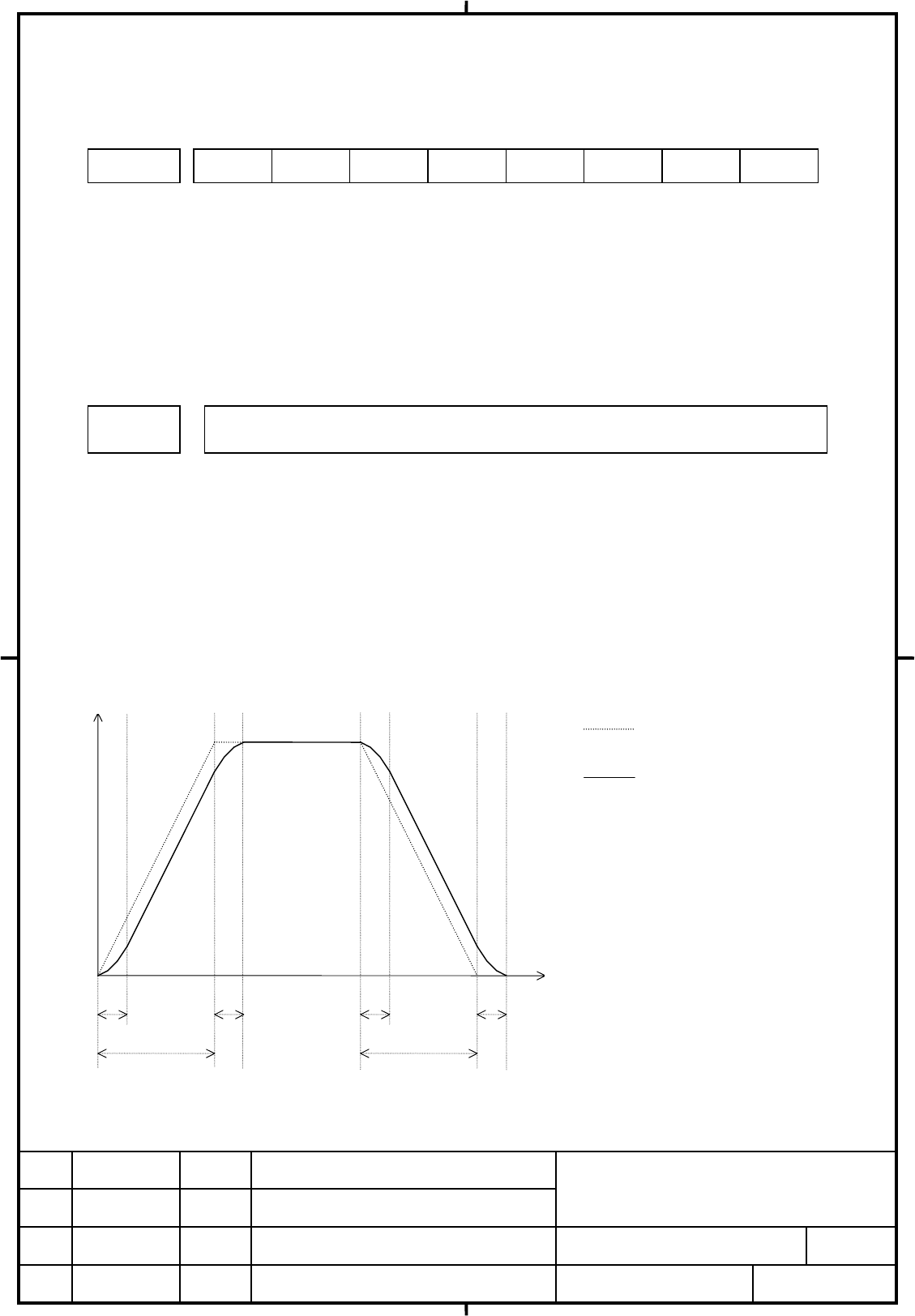

Set tb of the following figure. When the setting value is 0, the acceleration/deceleration becomes linear
acceleration/deceleration before interpolation. (This parameter is effective when the parameter BEL
(No.1603#7) is set to 1.)
tbtb
tb
tb
ta
ta
Feedrate
Time
Linear type acceleration
/ deceleration
Bell type acceleration
/ deceleration
ta It depends on linear type acceleration.
tb Bell type time constant
