  2. FANUC Series 30i-MODEL A, Series 31i-MODEL A5, Series 31i-MODEL A Workpiece setting error compensation

FANUC Series 30i-MODEL A, Series 31i-MODEL A5, Series 31i-MODEL A Workpiece setting error compensation Additional Manual Page 21

Additional Manual
FANUC Series 30i/31i-MODEL A/31i-MODEL A5
Workpiece Setting Error Compensation
A
-79634E
21
/
75
Ed. Date Design Description
Date Feb.08.’05 Design. Apprv.
page
Title
Draw
No.
- Singular point and singular point posture on a 5-axis machine
A tool posture is uniquely determined when the angles of the two rotation axes
are determined. Usually, however, a combination of the angles of the two
rotation axes for achieving a certain tool posture is not determined uniquely.
In particular, such a tool posture that the angle of the rotation axis closer to the
tool is arbitrary is referred to as a "singular point posture". Moreover, such an
angle of the rotation axis closer the tool that the tool posture becomes a singular
point posture is referred to as a "singular point (or singular point angle)". When
the angle of the rotation axis closer to the tool is a singular point, the center of
the rotation axis closer to the workpiece and the tool posture (tool direction) are
parallel with each other.
Example: When the C-axis (about the Z-axis) is the master axis, the B-axis
is the slave axis (about the Y-axis), and the reference tool axis direction
is along the Z-axis on a 5-axis machine of tool rotation type, the
singular point is B = …, 0 deg, 180 deg, .... At this time, an arbitrary
C-axis angle represents a singular point posture (in the same direction
as the Z-axis or in the direction opposite to the Z-axis).
If the angle of the B-axis is B = 0 (singular point) as shown in Fig. 4,
for example, an arbitrary C-axis angle represents the same tool posture
(singular point posture).
When the reference tool axis direction is inclined (parameter No. 19698, No.
19699), or the rotation axis is an angular axis (parameter No. 19682, No. 19683,
No. 19687, No. 19688), for example, no singular point and singular point posture
exist on some machines.
B=0
(Singular
point)
C=0 C=60
B=0
(Singular
point)
X
Z
Singular point
p
osture

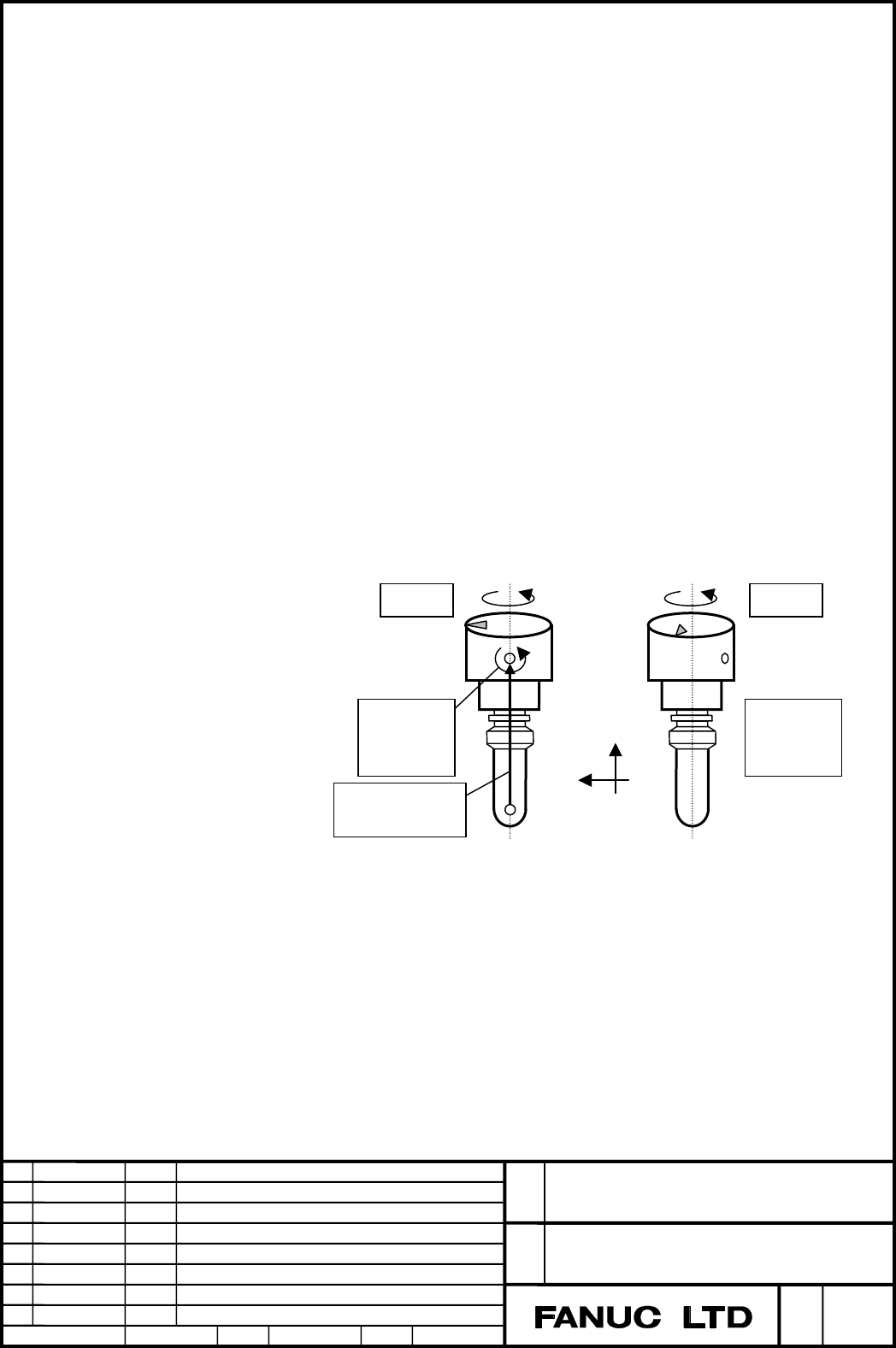

Fig. 4 Singular point and singular point attitude
