FANUC Series 30i-MODEL A, Series 31i-MODEL A5, Series 31i-MODEL A Workpiece setting error compensation Additional Manual Page 3

Additional Manual
FANUC Series 30i/31i-MODEL A/31i-MODEL A5
Workpiece Setting Error Compensation
A
-79634E
3
/
75
Ed. Date Design Description
Date Feb.08.’05 Design. Apprv.
page
Title
Draw
No.
1.1 WORKPIECE SETTING ERROR COMPENSATION
Overview
When a workpiece is placed on the machine, the workpiece is not always placed
at an ideal position.
With this function, a displaced workpiece can be machined according to the
program without making modifications to the program.
This function can compensate for a workpiece setting error on a rotation axis
used with a function involving rotation axis operation such as a function for tool
center point control for 5-axis machining, function for cutter radius compensation
for 5-axis machining, and a tilted working plane command. So, a workpiece can
be machined according to the program without making modifications to the
program even during tool center point control for 5-axis machining, cutter
compensation for 5-axis machining, and tilted working plane command.
Workpiece setting error

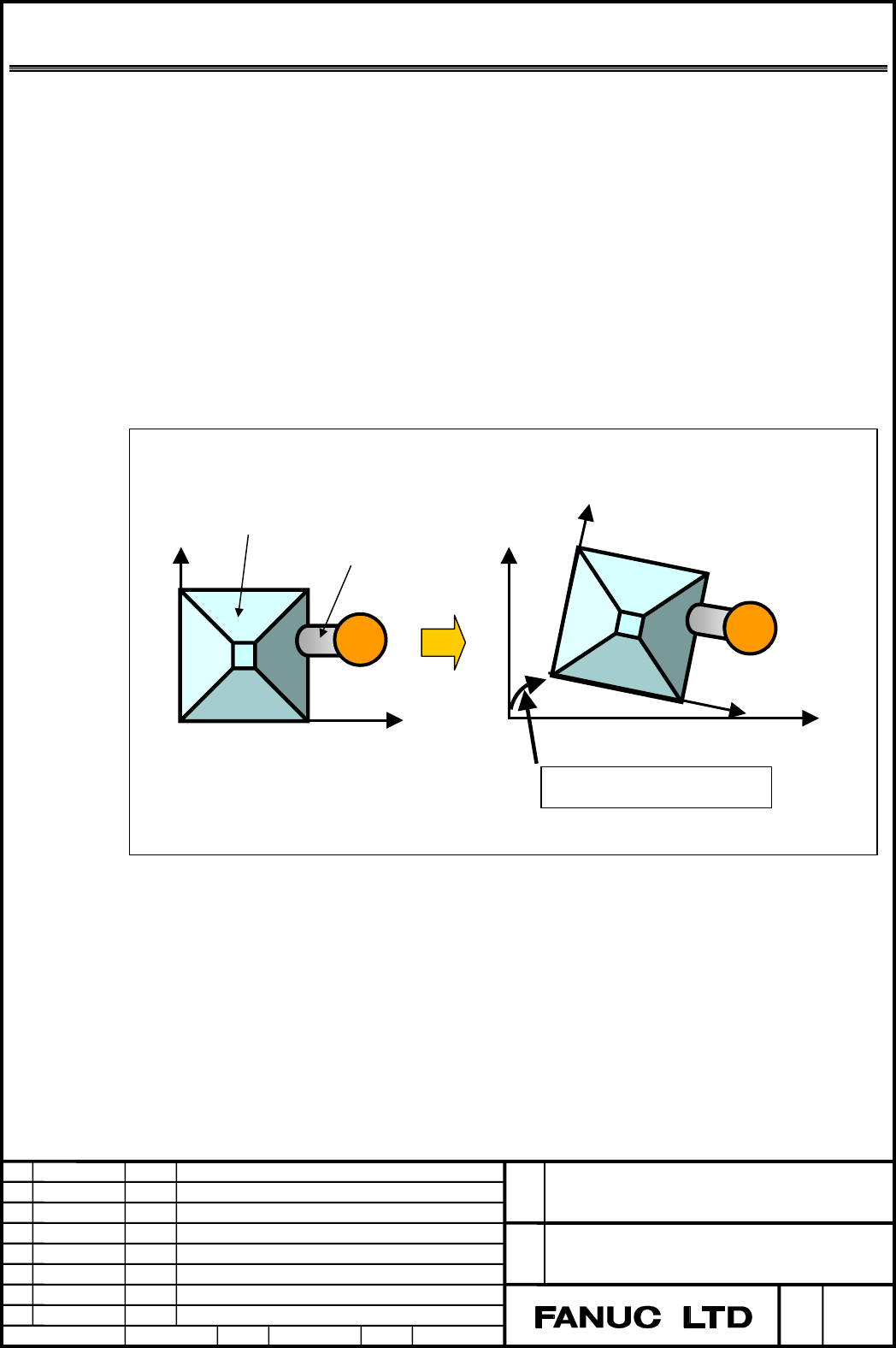

Fig. 1 Outline of workpiece setting error
Workpiece
Rotary tool
The coordinates system and the tool
automatically rotate in accordance with the
Workpiece setting error.
