- Setting of a workpiece setting error on the workpiece setting error setting screen
A workpiece setting error is set on the workpiece setting error setting screen.
The workpiece setting error setting screen is displayed according to the
procedure below.
1. Press the function key .
2. Press the chapter selection soft key [WORKPIECE PLACEMENT ERROR].
The workpiece setting error setting screen is displayed.
Up to seven sets (No. 01 to No. 07) of different workpiece setting errors can be set.
Moreover, a common error (No. 00 (COMMON)) to be added to the seven sets can
be set.
In the fields of x, y, and z, set X direction error ∆x, Y direction error ∆y, and Z
direction error ∆z, respectively. In the fields of a, b, and c, set rotation direction
error ∆a, rotation direction error ∆b, and rotation direction error ∆c, respectively.
In the lower fields (B and C on the screen), set table rotation axis position 1 and
table rotation axis position 2.
In the axis name fields, the rotation axis names set in parameter No. 19681 and
No. 19686 are displayed.
Set table rotation axis position 1 and table rotation axis position 2 for table
rotation axes. Table rotation axis position 1 and table rotation axis position 2
need not be set for axes (including hypothetical axes) other than the table
rotation axes, so no setting item is displayed for those axes.

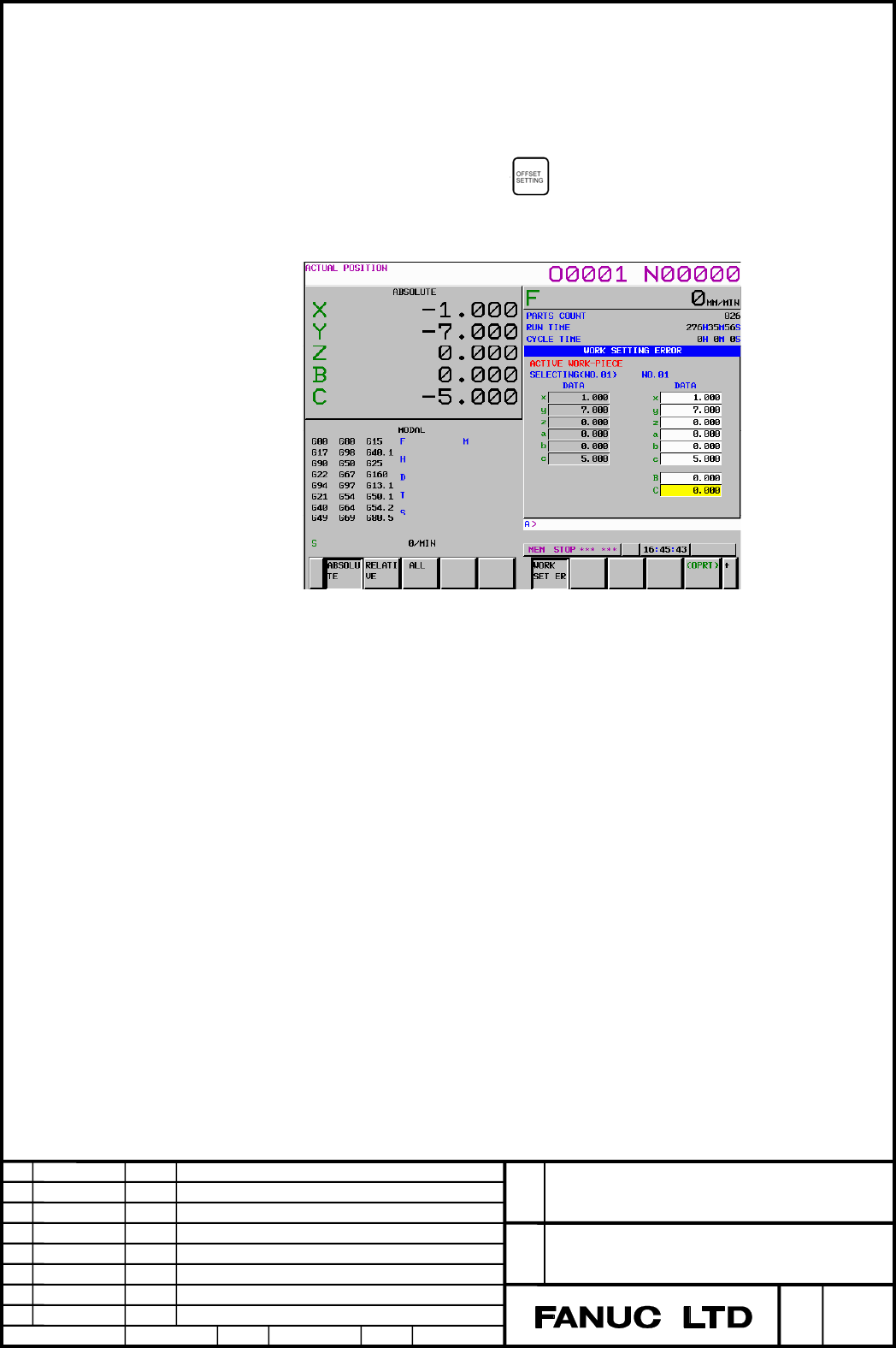

Workpiece setting error setting screen
