1.2 Improvement of the 3-Dimensional Coordinate System
Conversion/Tilted Working Plane Command
Overview
It has become possible to use the 3-dimensional coordinate system
conversion/tilted working plane command and tool center point control for 5-axis
machining at the same time.
In this case, the tool direction can also be changed, so it is possible to make the
tool direction, viewed from the program coordinate system (feature coordinate
system), constant regardless of whether the 3-dimensional coordinate system
conversion/tilted working plane command is used.
When this feature is used, the option of Workpiece setting error compensation is
needed.
Program coordinate
system (feature
coordinate system

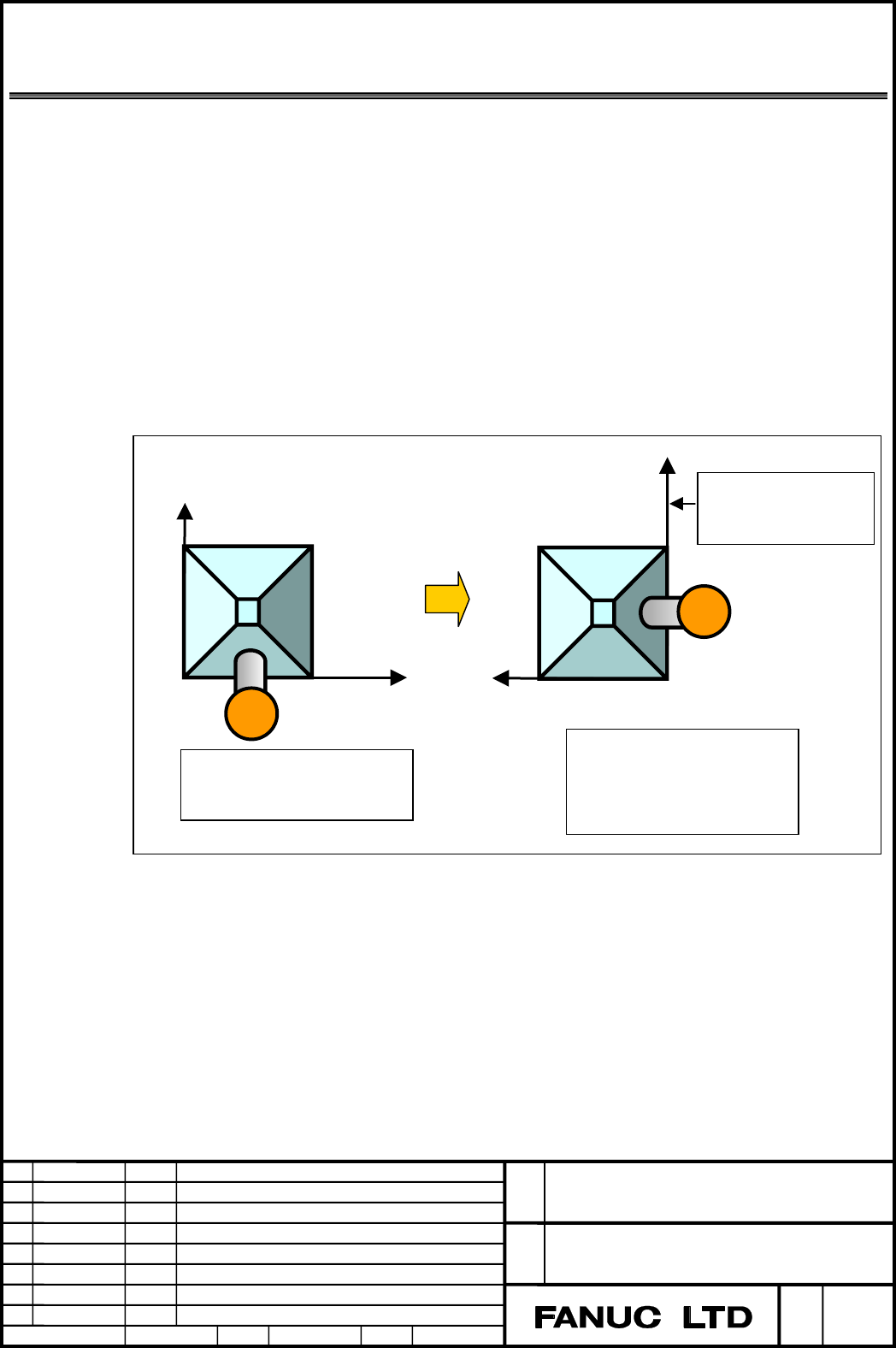

Fig 1. Conversion of tool direction
Machining using tool center
point control without coordinate
system conversion
Machining using tool center
point control machining with
coordinate system conversion
(Tool direction is also automatically
converted)
