FANUC Series 30i-MODEL A, Series 31i-MODEL A5, Series 31i-MODEL A Workpiece setting error compensation Additional Manual Page 61

Additional Manual
FANUC Series 30i/31i-MODEL A/31i-MODEL A5
Workpiece Setting Error Compensation
A
-79634E
6
1
/
75
Ed. Date Design Description
Date Feb
.08.’05 Design. Apprv.
page
Title
Draw
No.
19697 Reference tool axis direction
[Input type] Parameter input
[Data type] Byte path
[Valid data range] 1 to 3
Set the tool axis direction in the machine coordinate system when the rotation
axes for controlling the tool are all at 0 degrees. Also, set the tool axis direction
in the machine coordinate system in a mechanism in which only the rotation
axes for controlling the table are present (there is no rotation axis for
controlling the tool).
1: Positive X-axis direction
2: Positive Y-axis direction
3: Positive Z-axis direction
When the reference tool axis direction is neither the X-, Y-, nor Z-axis direction,
set the reference direction in this parameter, then set appropriate angles as
the reference angle RA and reference angle RB (parameter Nos. 19698 and
19699).

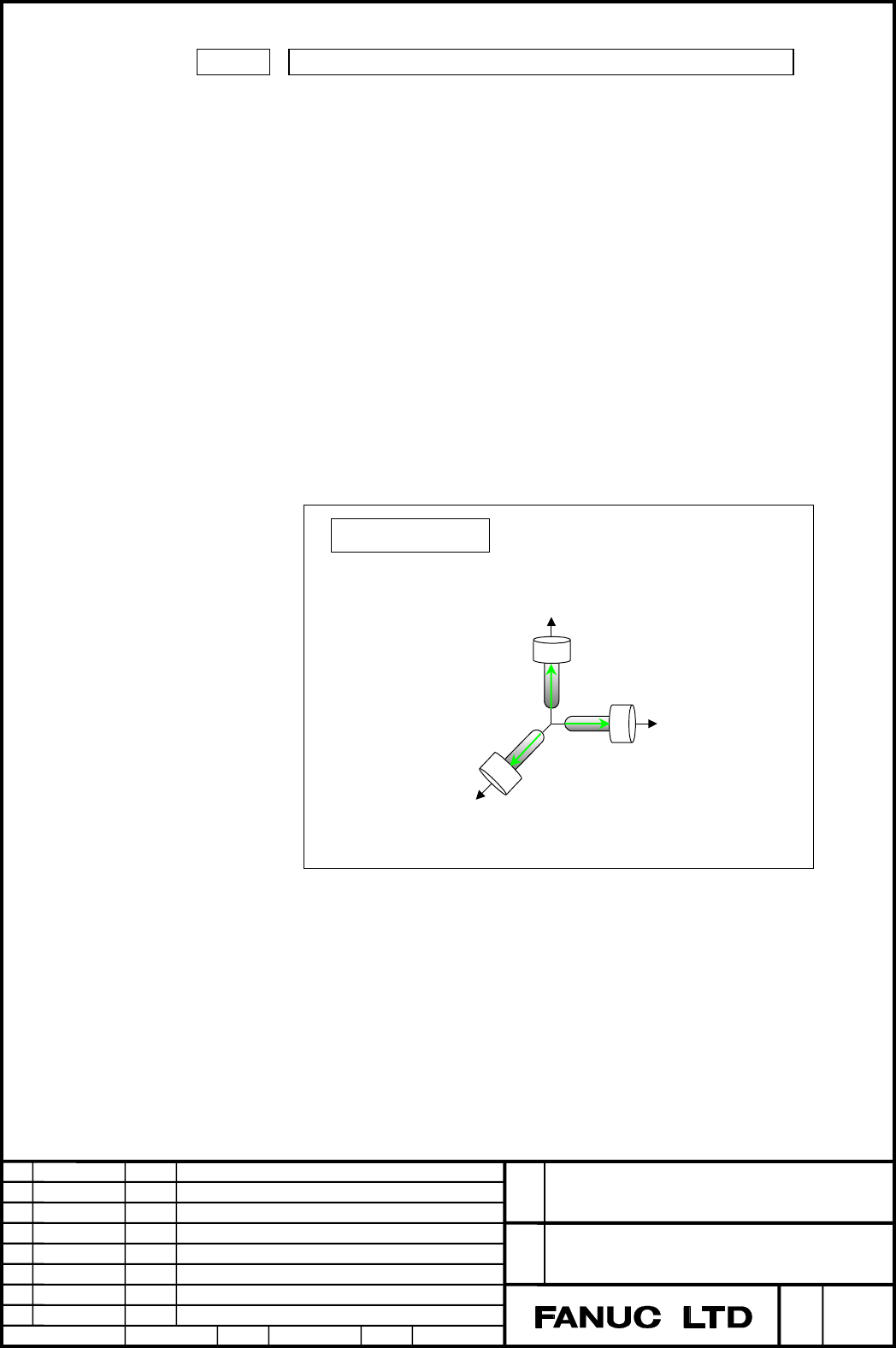

Reference tool axis direction
X
Y
Z
Tool axis direction is positive X-axis direction.
Tool axis direction is positive Y-axis direction.
Tool axis direction is positive Z-axis direction.
