FANUC Series 30i-MODEL A, Series 31i-MODEL A5, Series 31i-MODEL A Workpiece setting error compensation Additional Manual Page 5

Additional Manual
FANUC Series 30i/31i-MODEL A/31i-MODEL A5
Workpiece Setting Error Compensation
A
-79634E
5
/
75
Ed. Date Design Description
Date Feb.08.’05 Design. Apprv.
page
Title
Draw
No.
Explanation
- Workpiece setting error
A workpiece setting error is defined by the following eight variables:
- X direction error ∆x
- Y direction error ∆y
- Z direction error ∆z
- Rotation direction error ∆a (rotation error on the X-axis in degrees)
- Rotation direction error ∆b (rotation error on the Y-axis in degrees)
- Rotation direction error ∆c (rotation error on the Z-axis in degrees)
- Table rotation axis position 1
- Table rotation axis position 2
[About ∆x, ∆y, and ∆z]
∆x, ∆y, and ∆z represent the coordinates of the origin of the workpiece coordinate
system (X'Y'Z' in the figure below, which is hereinafter referred to as the
"workpiece setting coordinate system") based on a displaced workpiece, as viewed
from the original workpiece coordinate system (XYZ in the figure below).

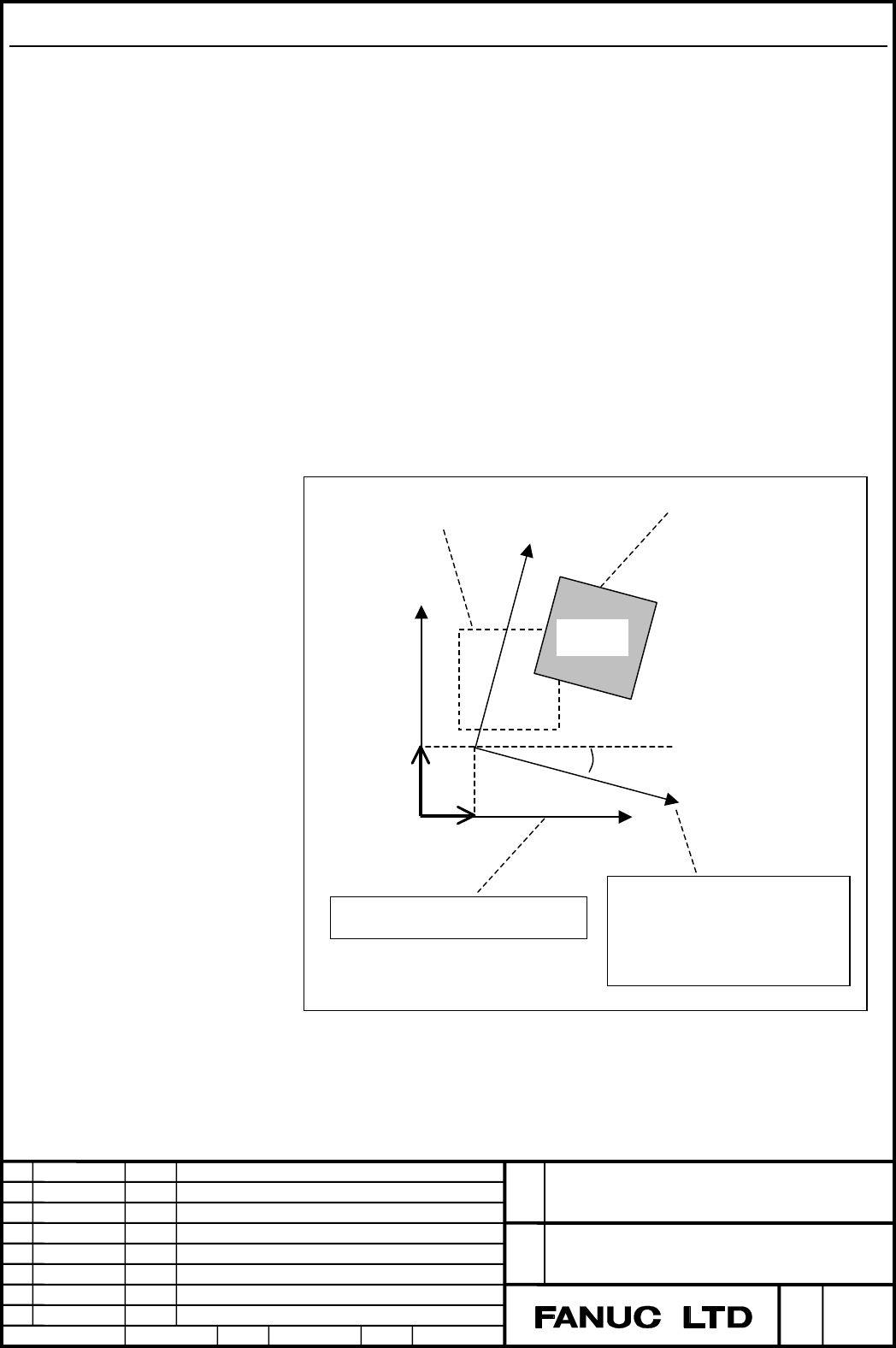

Coordinate system X'Y'Z' (workpiece
setting coordinate system) based on
the displaced workpiece
X'
Y
'
X
Y
Workpiece coordinate system XYZ
Δx
Δy
Workpiece
Correct workpiece position
Displace workpiece
−∆c degrees
Fig. 2 Errors in X, Y, and Z directions
