[About ∆a, ∆b, and ∆c]
∆a, ∆b, and ∆c are defined as described below.
The workpiece coordinate system obtained by rotating a workpiece coordinate
system about the X-axis by angle ∆a, about the Y-axis by angle ∆b, and about the
Z-axis by angle ∆c then shifting that workpiece coordinate system by (∆x, ∆y, ∆z)
from the origin of that workpiece coordinate system is supposed to match the
"workpiece setting coordinate system".
(Note: In determination of positive/negative rotation, clockwise rotation is
defined to be positive rotation.)
The workpiece coordinate
system (X,Y,Z) is rotated
about the X-axis by ∆a.
Further rotated about the Y-
axis by ∆b.
Further rotated about the Z-
axis by ∆c.
X (= X')
Z
Y
Z’
Y’
Δa
X
Z
Y
Z’
Y’
Δb
X'
X
Z
Y
Z’
Y’
Δc
X'
X
Z
Y
Z’
Y’
X'
Workpiece setting
coordinate system
( Δx, Δy, Δz )

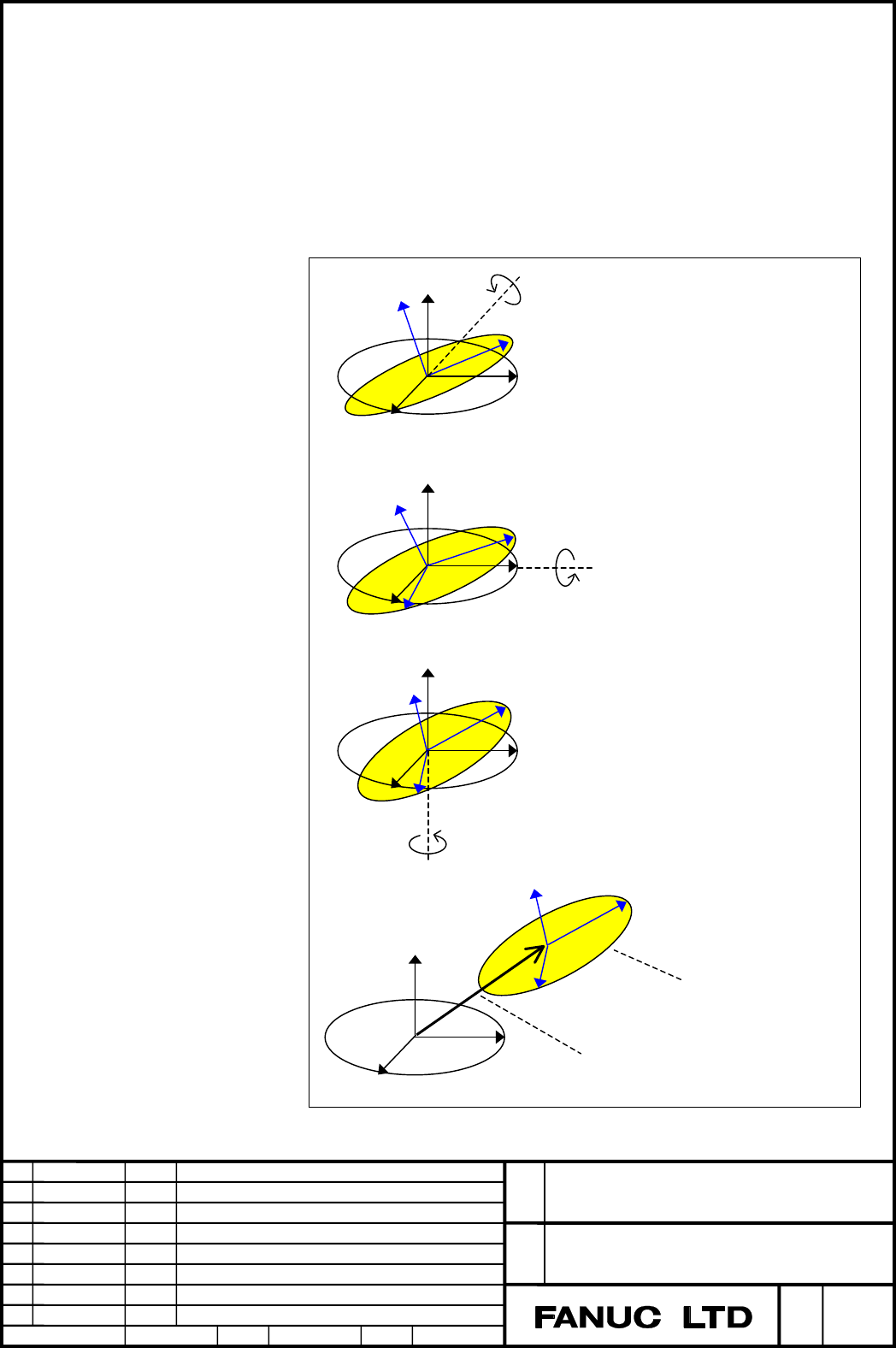

Fig. 3 Errors in rotation directions
