FANUC Series 30i-MODEL A, Series 31i-MODEL A5, Series 31i-MODEL A Workpiece setting error compensation Additional Manual Page 33

Additional Manual
FANUC Series 30i/31i-MODEL A/31i-MODEL A5
Workpiece Setting Error Compensation
A
-79634E
33
/
75
Ed. Date Design Description
Date Feb.08.’05 Design. Apprv.
page
Title
Draw
No.

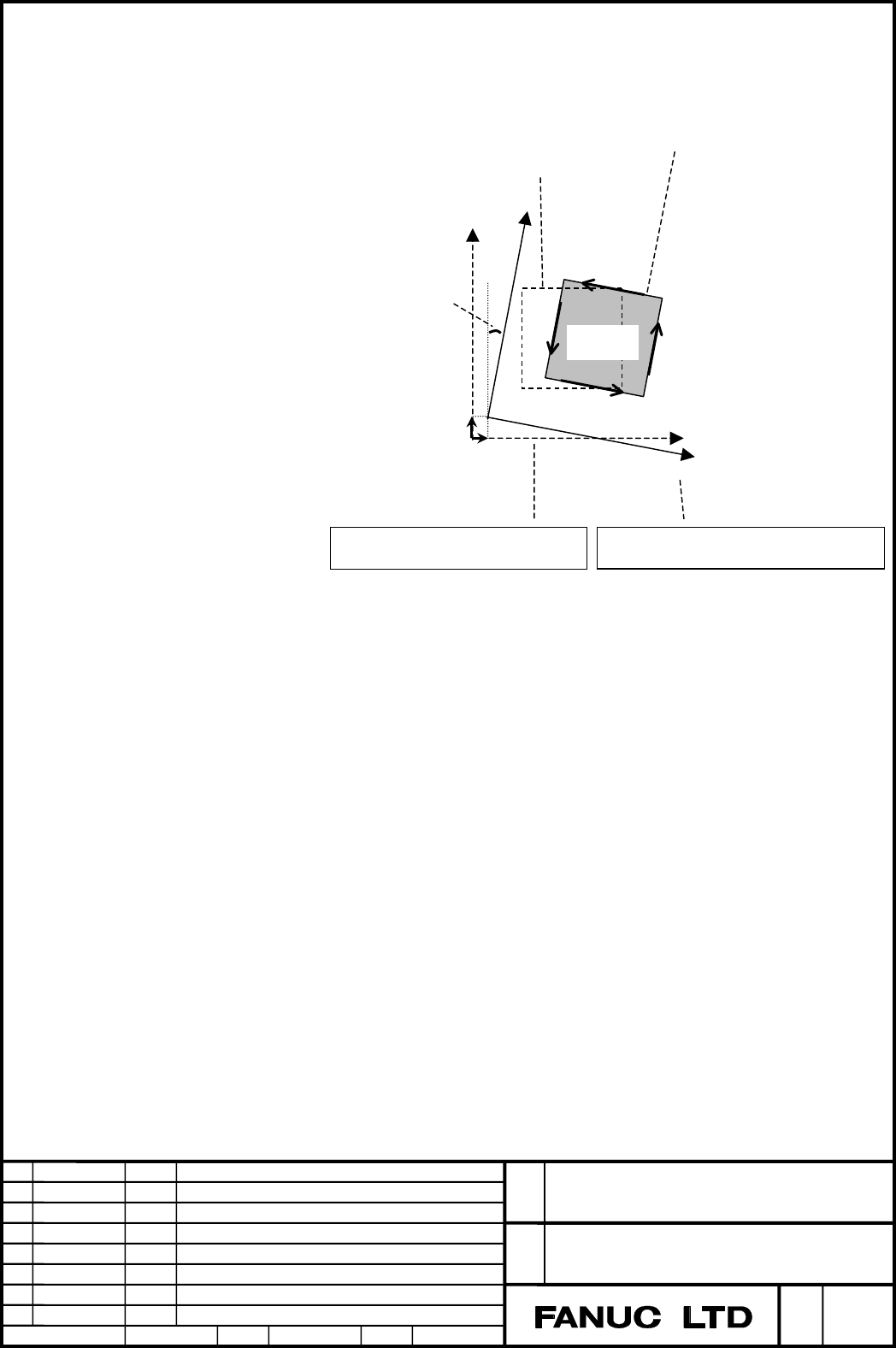

Suppose that the workpiece is displaced from the "correct workpiece setting
position" as shown in Fig. 6.
The workpiece coordinate system, when rotated by -20.000 deg about the Z-axis,
shifted by 10.000 in the X direction, and shifted by 20.000 in the Y direction, is to
match the workpiece setting coordinate system.
At this time, set the following workpiece setting error values:
(Workpiece setting error No. 01)
x 10.000
y 20.000
z 0.000
a 0.000
b 0.000
c -20.000
Workpiece setting coordinate system (X'Y'Z')
X
Y
Workpiece coordinate system G55 (XYZ)
Correct workpiece setting position
Displaced workpiece.
Operation is performed to
cut four sides.
X'
Y
'
N50
N60
N70
N80
Δx
=10.000
Δy
=20.000
Δc
=-20.000
Workpiece
Fig. 6 Operation when there is a workpiece setting error
