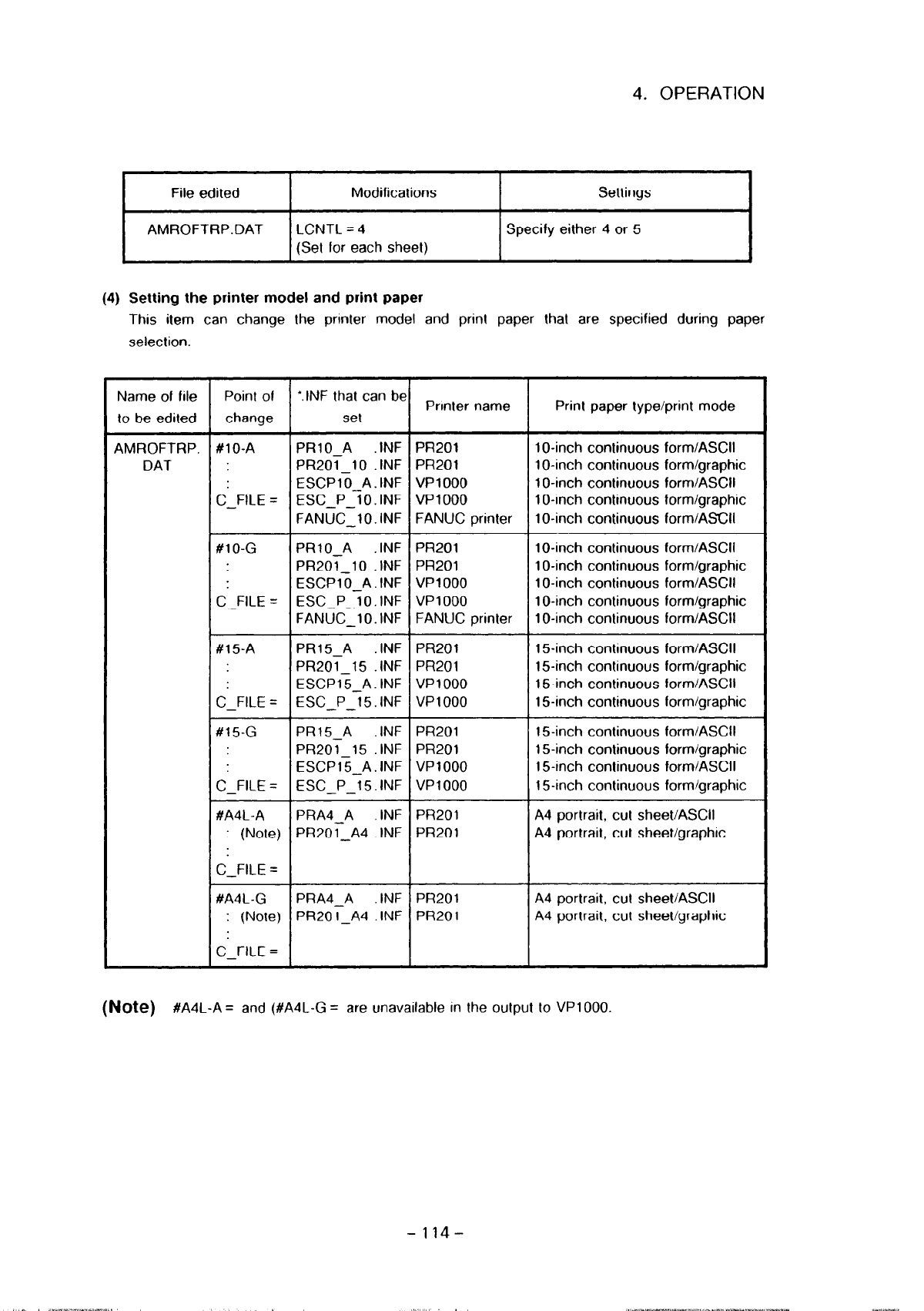

4. OPERATION

File edited

AMROFTRP.DAT

Modifications

LCNTL = 4

(Set for each sheet)

Settings

Specify either 4 or 5

(4) Setting the printer model and print paper

This item can change the printer model and print paper that are specified during paper

selection.

Name of file

Point of

*.INF that can be

Printer name

to be edited change

set

Print paper type/print mode

AMROFTRP. #l O-A

PRlO_A INF PR201

1 O-inch continuous form/ASCII

DAT :

PR201_10 . INF PR201

1 O-inch continuous form/graphic

ESCPlO A.INF VP1000

C.-FILE = ESC_P_iO. INF VP1000

1 O-inch continuous form/ASCII

1 O-inch continuous form/graphic

FANUC_10. INF FANUC printer

1 O-inch continuous form/ASCII

#10-G

PRlO_A .INF PR201 1 O-inch continuous form/ASCII

PR201_10 .INF PR201 1 O-inch continuous form/graphic

C.-FILE =

ESCPlO A. INF VP1000 1 O-inch continuous form/ASCII

ESC_P_iO. INF VP1 000 1 O-inch continuous form/graphic

FANUC_10. INF FANUC printer

1 O-inch continuous form/ASCII

#15-A PRlS_A .INF PR201 15inch continuous form/ASCII

PR201_15 .INF PR201

15-inch continuous form/graphic

C;FILE =

ESCP15 A.INF VP1000 15-inch continuous form/ASCII

ESC_Pj5. INF VP1 000 15inch continuous form/graphic

#15-G

PRlS_A

.INF PR201

15inch continuous form/ASCII

PR201_15 .INF PR201

15-inch continuous form/graphic

ESCP15_A.INF VP1000 15-inch continuous form/ASCII

C-FILE = ESC_P-15. INF VP1 000 15-inch continuous form/graphic

#A4L-A

PRA4_A .INF PR201

A4 portrait, cut sheet/ASCII

: (Note) PR201_A4 INF PR201

A4 portrait, cut sheet/graphic

C.-FILE =

#A4L-G

PRA4_A

INF PR201

: (Note) PR201_A4 .INF PR201

C.-FILE =

A4 portrait, cut sheet/ASCII

A4 portrait, cut sheet/graphic

(Note) #A4L-A = and (#A4L-G = are unavailable in the output to VPIOOO.

- 114-
