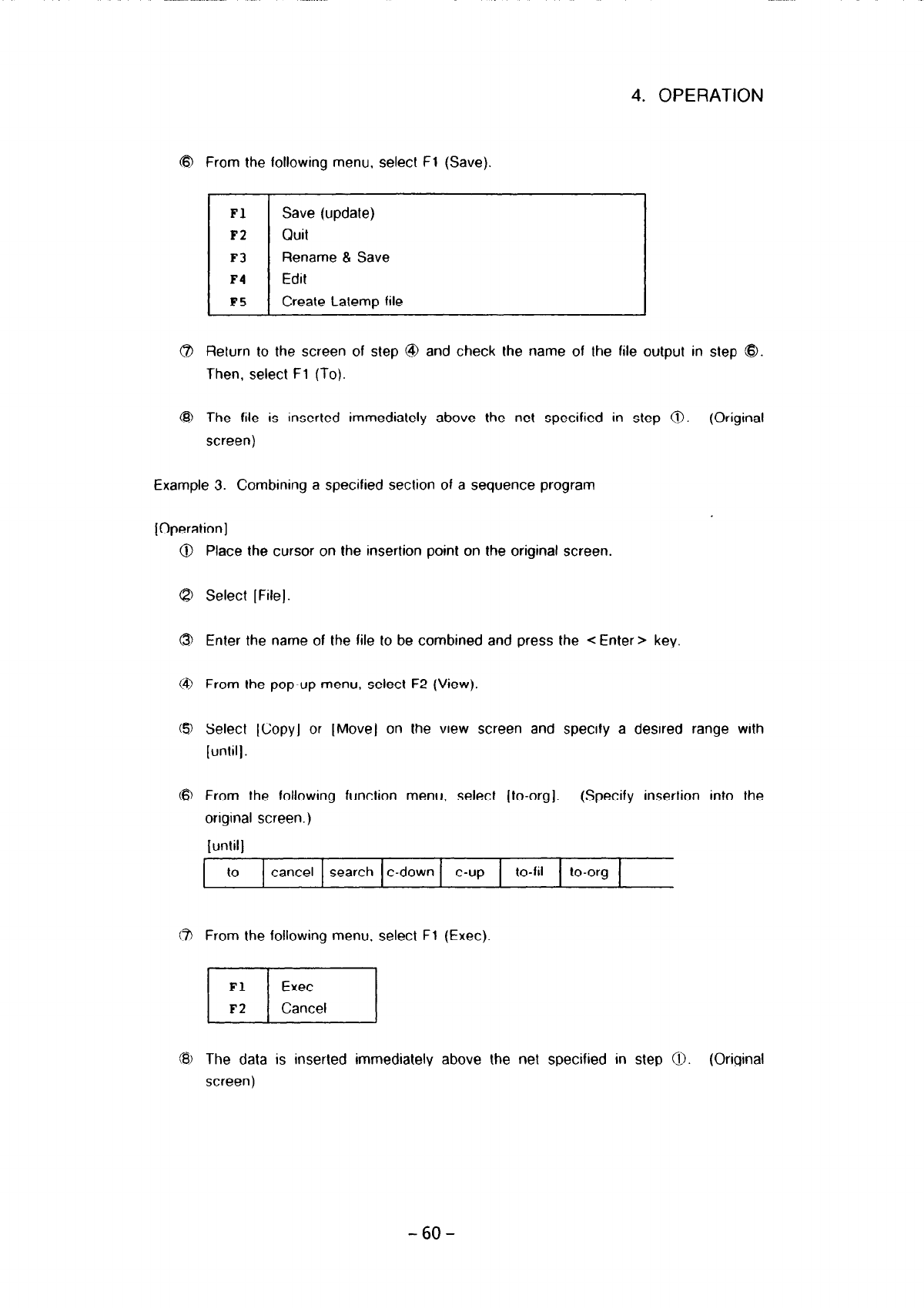

FAPT Ladder-II Operators manual Page 68

Operators manual

Page of 456

/ 456

4. OPERATION

From the following menu, select Fl (Save).

Fl Save (update)

Quit

Rename & Save

F4 Edit

F5 Create Latemp file

Return to the screen of step @ and check the name of the file output in step ‘$3.

Then, select Fl (To).

The file is inserted immediately above the net specified in step 0. (Original

screen)

Example 3. Combining a specified section of a sequence program

[Operation]

Place the cursor on the insertion point on the original screen.

Select [File].

Enter the name of the file to be combined and press the < Enter > key.

From the pop-up menu, select F2 (View).

Select [Copy] or [Move] on the view screen and specify a desired range with

[until].

From the following function menu, select (to-org]. (Specify insertion into the

original screen.)

[until]

cancel search c-down

c-up

to-fil to-org

From the following menu, select Fl (Exec)

The data is inserted immediately above the net specified in step 0. (Original

screen)

-6O-
