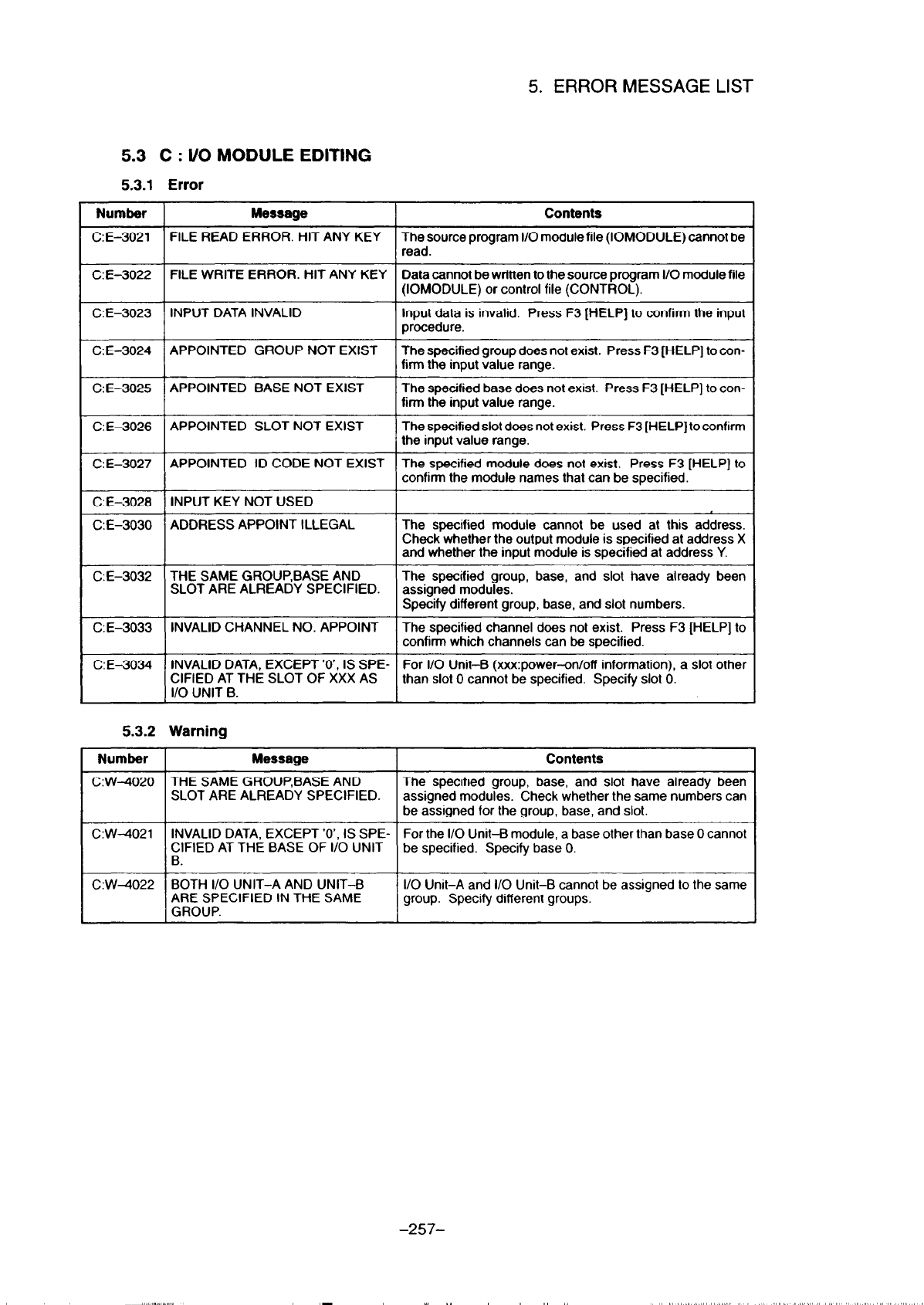

5. ERROR MESSAGE LIST

5.3 C : l/O MODULE EDITING

5.3.1 Error

Message Contents

The source program I/O module file (IOMODULE) cannot be

read.

Data cannot be written to the source program I/O module file

(IOMODULE) or control file (CONTROL).

Input data is invalid. Press F3 [HELP] to confirm the input

procedure.

The specified group does not exist.

Press F3 [HELP] to con-

firm the input value range.

The specified base does not exist.

Press F3 [HELP] to con-

firm the input value range.

The specified slot does not exist. Press F3 [HELP] toconfirm

the input value range.

The specified module does not exist. Press F3 [HELP] to

confirm the module names that can be specified.

The specified module cannot be used at this address.

Check whether the output module is specified at address X

and whether the input module is specified at address Y.

The specified group, base, and slot have already been

assigned modules.

Specify different group, base, and slot numbers.

The specified channel does not exist. Press F3 [HELP] to

confirm which channels can be specified.

For I/O Unit-B (xxx:power-on/off information), a slot other

than slot 0 cannot be specified. Specify slot 0.

FILE READ ERROR. HIT ANY KEY

C:E-3021

C: E-3022

FILE WRITE ERROR. HIT ANY KEY

C: E-3023

INPUT DATA INVALID

C: E-3024

APPOINTED

GROUP NOT EXIST

APPOINTED

BASE NOT EXIST

C: E-3025

C: E-3026

APPOINTED SLOT NOT EXIST

C: E-3027

APPOINTED

ID CODE NOT EXIST

C: E-3026

INPUT KEY NOT USED

C: E-3030

ADDRESS APPOINT ILLEGAL

C: E-3032

THE SAME GROUP,BASE AND

SLOT ARE ALREADY SPECIFIED.

INVALID CHANNEL NO. APPOINT

C: E-3033

C: E-3034

INVALID DATA, EXCEPT ‘O’, IS SPE-

CIFIED AT THE SLOT OF XXX AS

l/O UNIT B.

5.3.2 Warning

Number

Message

Contents

THE SAME GROUP,BASE AND The specified group, base, and slot have already been

SLOT ARE ALREADY SPECIFIED. assigned modules. Check whether the same numbers can

be assigned for the group, base, and slot.

C:W4020

C:W4021

INVALID DATA, EXCEPT ‘O’, IS SPE-

For the I/O Unit-B module, a base other than base 0 cannot

CIFIED AT THE BASE OF I/O UNIT

be specified. Specify base 0.

C: W4022

BOTH I/O UNIT-A AND UNIT-B

ARE SPECIFIED IN THE SAME

GROUP.

I/O Unit-A and I/O Unit-B cannot be assigned to the same

group. Specify different groups.

-257-
