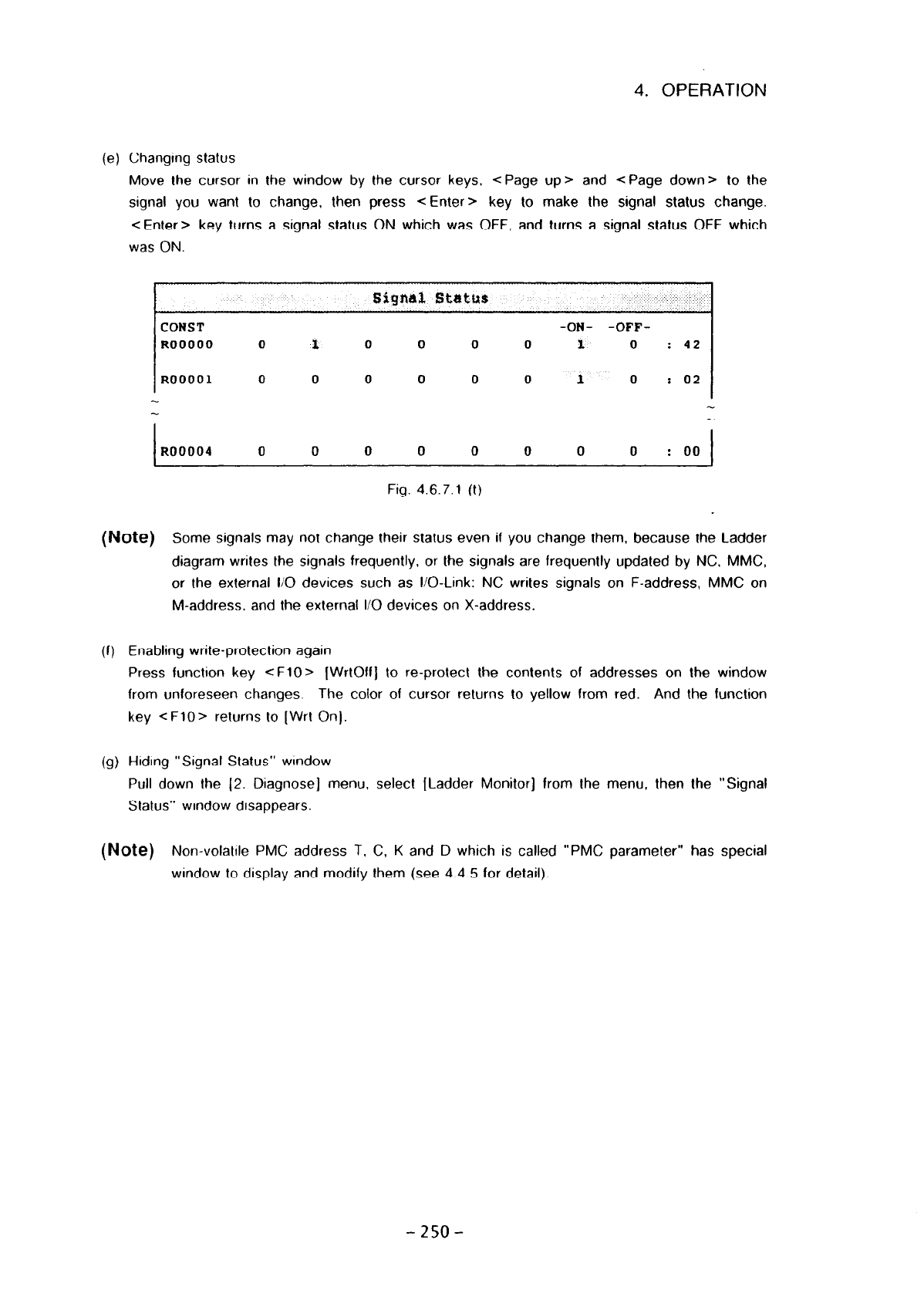

4. OPERATION

(e) Changing status

Move the cursor in the window by the cursor keys, <Page up> and <Page down> to the

signal you want to

<Enter> key turns

was ON.

change, then press <Enter> key to make the signal status change.

a signal status ON which was OFF, and turns a signal status OFF which

Signa Stat&s

CONST

-ON- -OFF-

ROOOOO 0 L 0 0 0 0 L 0 : 42

ROOOOl 0 0 0 0 0 0 1 0 : 02

R00004 0 0 0 0 0 0 0 0 : 00

Fig. 4.6.7.1 (t)

(Note) Some signals may not change their status even if you change them, because the Ladder

(f)

(9)

diagram writes the signals frequently, or the signals are frequently updated by NC. MMC,

or the external I10 devices such as l/O-Link: NC writes signals on F-address, MMC on

M-address, and the external l/O devices on X-address.

Enabling write-protection again

Press function key <Flop [WrtOff) to re-protect the contents of addresses on the window

from unforeseen changes. The color of cursor returns to yellow from red. And the function

key cFlO> returns to [Wrt On).

Hrdrng “Signal Status” wrndow

Pull down the 12. Diagnose] menu,

Status” window drsappears.

(Note) Non-volatrle PMC address T, C, K and D which is called “PMC parameter” has special

window to display and modify them (see 4.4.5 for detail).

select [Ladder Monitor] from the menu, then the “Signal

-250-
